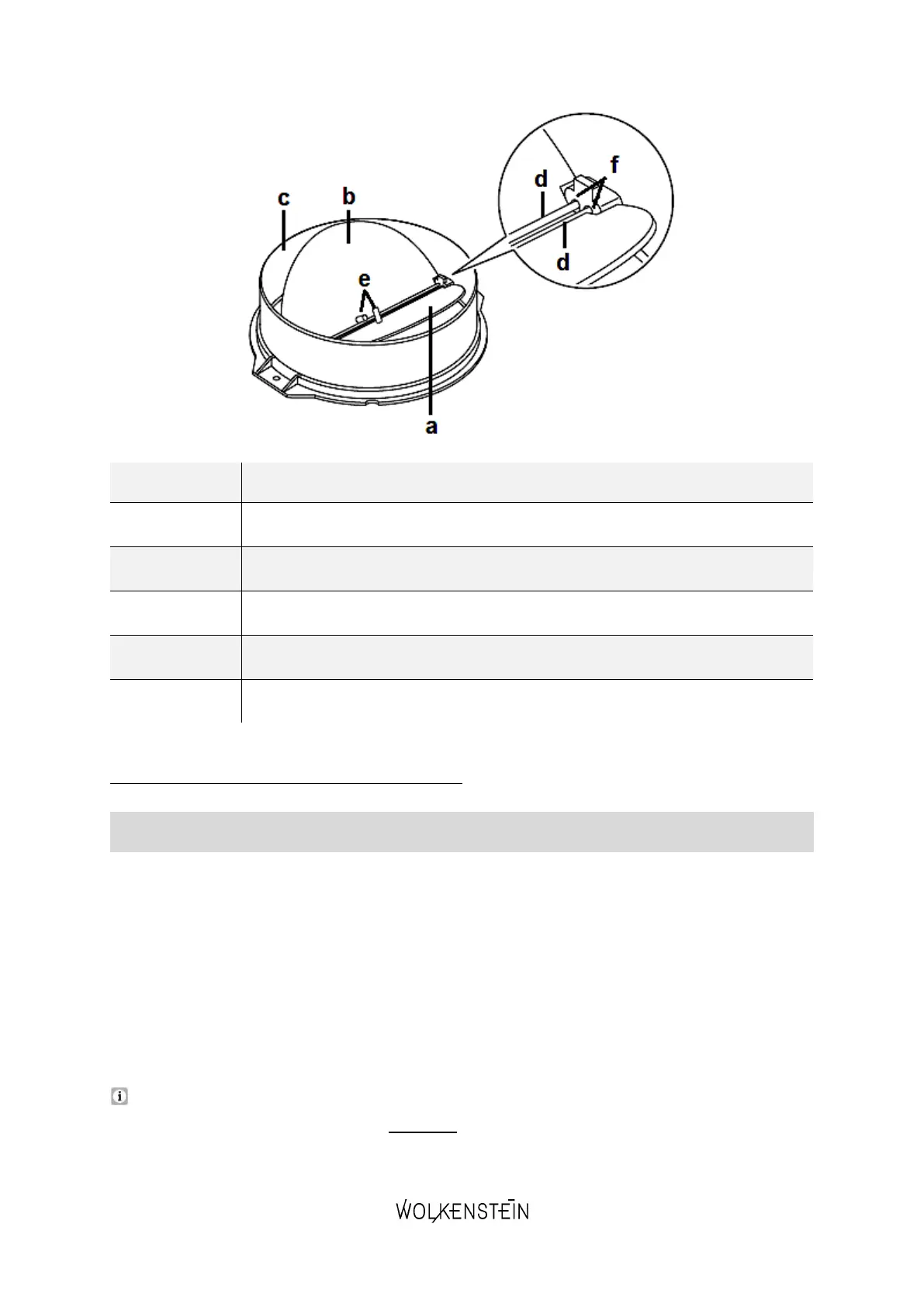

a
ONE - WAY VALVE: flap part « a »
b
ONE - WAY VALVE: flap part « b »
c
HOUSING OF THE EXHAUST AIR OUTLET
d
AXLES
e
AXLE PINS
f
OPENINGS in the housing of the exhaust air outlet (on both sides)
2.5.2 Installation of the extractor hood
INSTALLATION STEPS
❖ The minimum distance between the extractor hood and an electric hob must be
at least 45.00 cm.
1. Find a suitable position for the extractor hood.
2. Measure and mark the positions of the six drill holes required (two for the inner
chimney bracket, two for the chimney bracket and two for installing the housing
of the extractor hood on the wall). Ensure that the minimum distances are
observed.
Note that the position of the screw holes for the fixing of the inner chimney
bracket, also represents the highest point of the entire chimney. Screw the
inner chimney bracket to the wall using the screws (ST 4*25 mm) and plugs
supplied.
