Je bekijkt pagina 60 van 89
~ 60 ~

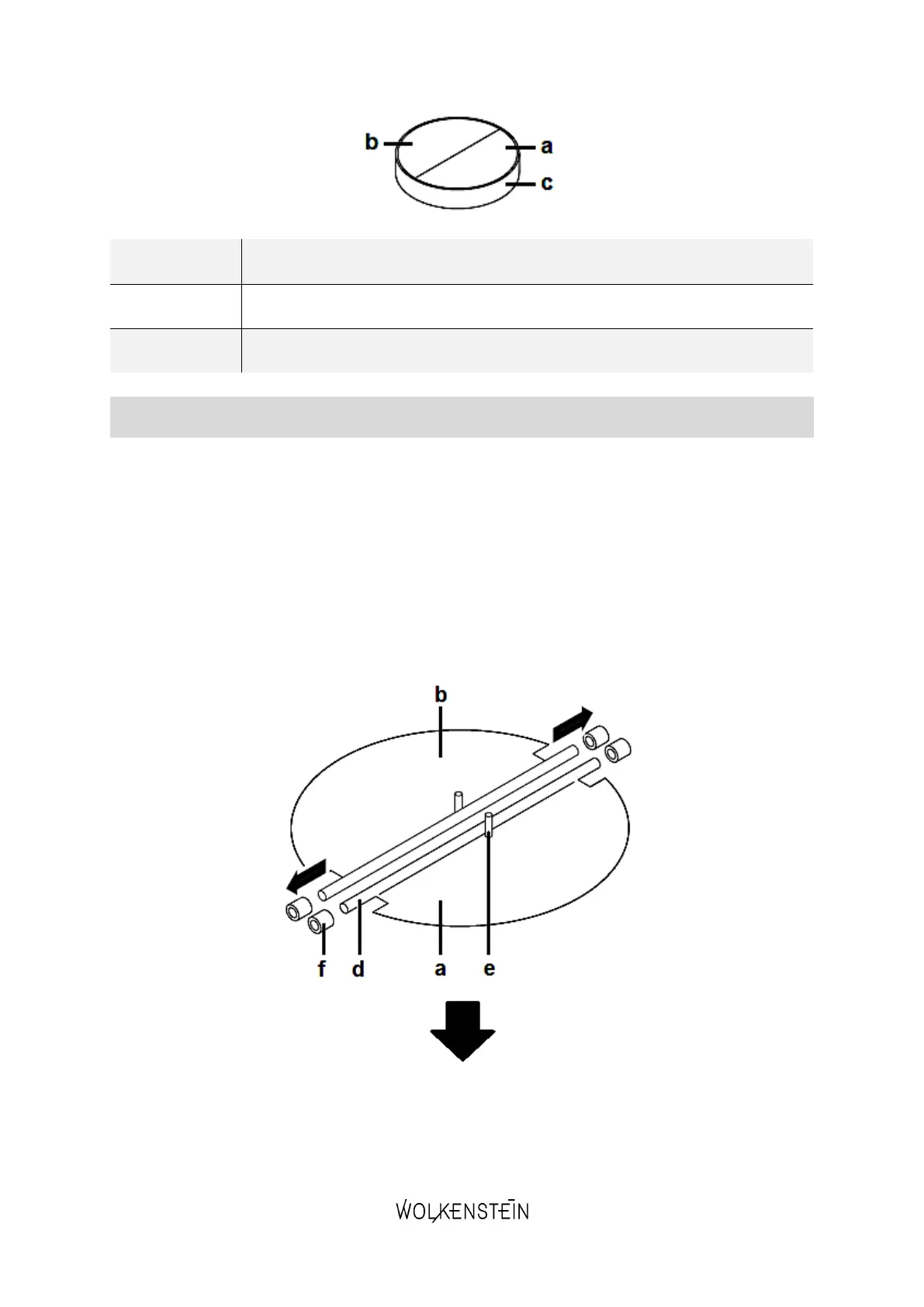

a
ONE - WAY VALVE: flap part « a »
b
ONE - WAY VALVE: flap part « b »
c
HOUSING OF THE EXHAUST AIR OUTLET
INSTALLATION STEPS
1. Each of the two individual flap parts (a / b) consist of a semicircle including an
axle (d). In the centre of the axle (d) of a flap part is an axle pin (e / s. fig. below).
2. Insert the axle (d) of a flap part carefully into the corresponding openings (f / on
both sides) in the housing of the exhaust air outlet (c); the axle pin (e) must point
upwards (s. fig. below).
3. Repeat step 2 for the other flap part.
4. Ensure that both parts of the one - way valve are installed properly. The flap parts
must not jam or get caught.
