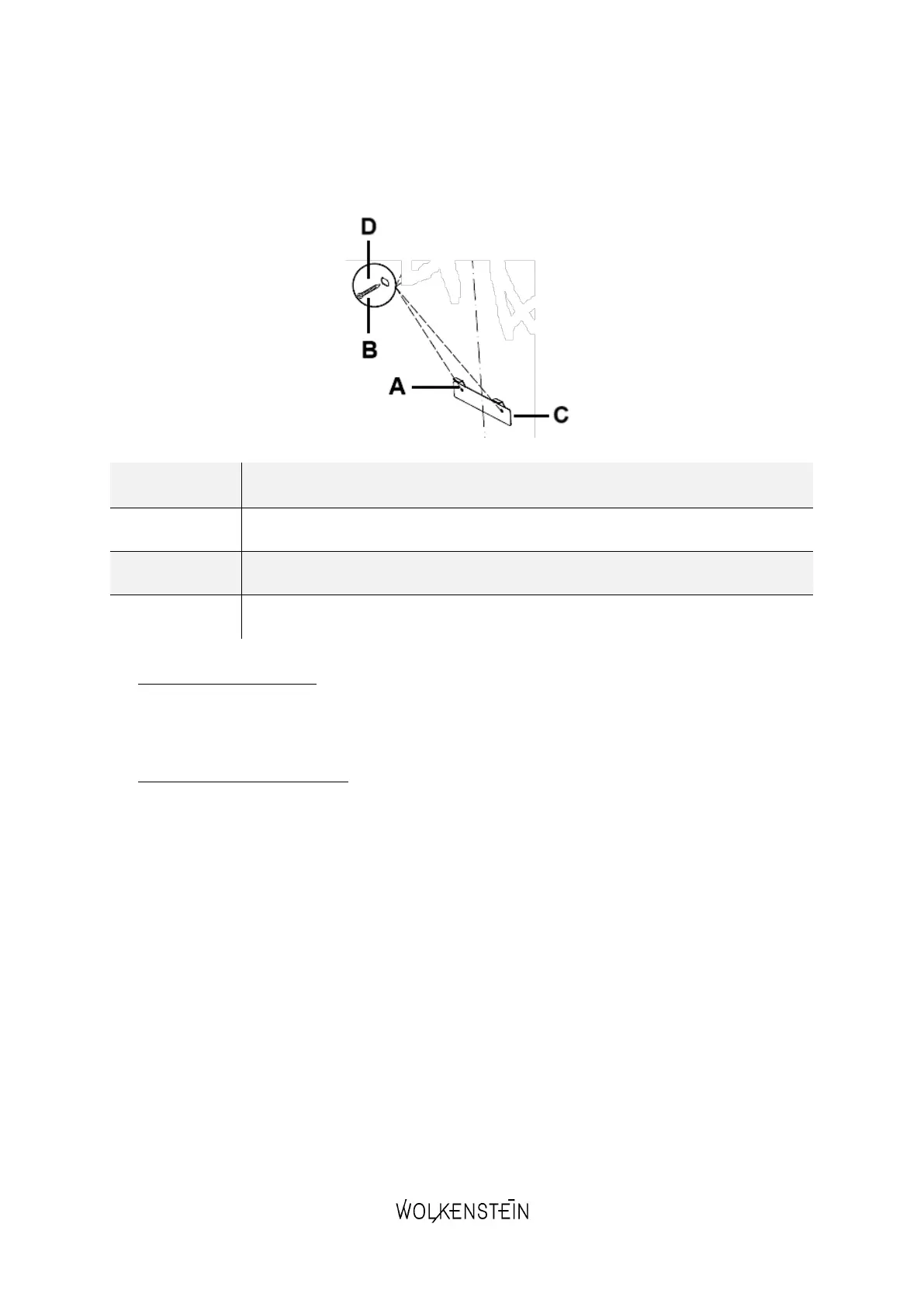

3. Drill two 8 mm Ø holes to fix the wall bracket (s. fig. below). The wall bracket
must be levelled. Check the horizontal alignment with a spirit level. Tighten the
suspending bracket using the supplied screws and dowels on the wall.
A
SCREW HOLES (2 pcs. in total)
B
EXPANSION DOWELS (2 pcs. in total)
C
WALL BRACKET
D
SCREWS: ST 4*25 mm (2 pcs. in total)
4. EXTRACTION MODE: connect the exhaust hose (H) to the exhaust air outlet (F)
of the extractor hood (E / s. fig. below on the left). Fix the exhaust hose (H)
using a cable tie (J / s. fig. below on the right).
RECIRCULATION MODE: please ignore step 4. « EXTRACTION MODE », step 7 a.
and step 9.; please observe the instructions given in chapter 3.2 RECIRCULATION
MODE.
