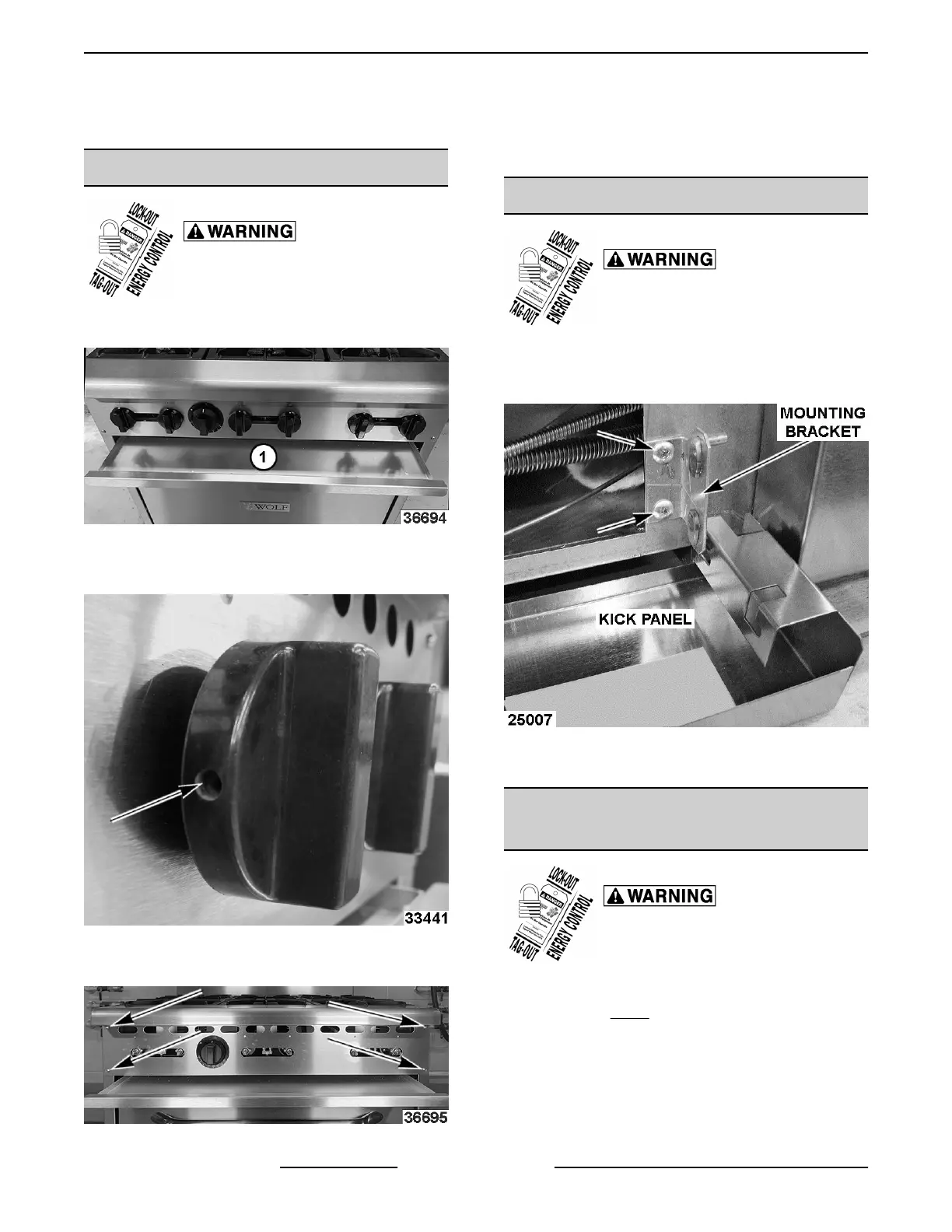

2. REMOVAL AND REPLACEMENT PARTS
MANIFOLD COVER
Shut off the gas before servicing the
unit and follow lockout / tagout
procedures.
1.
Pull crumb tray out.
Fig. 2
2. Loosen set screws in top burner control knobs
and remove knobs.
Fig. 3
3.
Remove manifold mounting screws.
Fig. 4
4. Reverse procedure to install.
KICK PANEL
Shut off the gas before servicing the
unit and follow lockout / tagout
procedures.
1. Lift
up on kick panel and rotate down 90 degrees.
2. Remove kick panel mounting bracket.
Fig. 5
3. Reverse procedure to install.
STANDARD OVEN PILOT
ASSEMBLY
AND THERMOCOUPLE
Shut off the gas before servicing the
unit and follow lockout / tagout
procedures.
1. Remove oven racks. Lift up and pull out rack
guides (1, Fig. 6).
WX RANGE - 2. REMOVAL AND REPLACEMENT PARTS
F45992 (1123) Page 4 of 27
