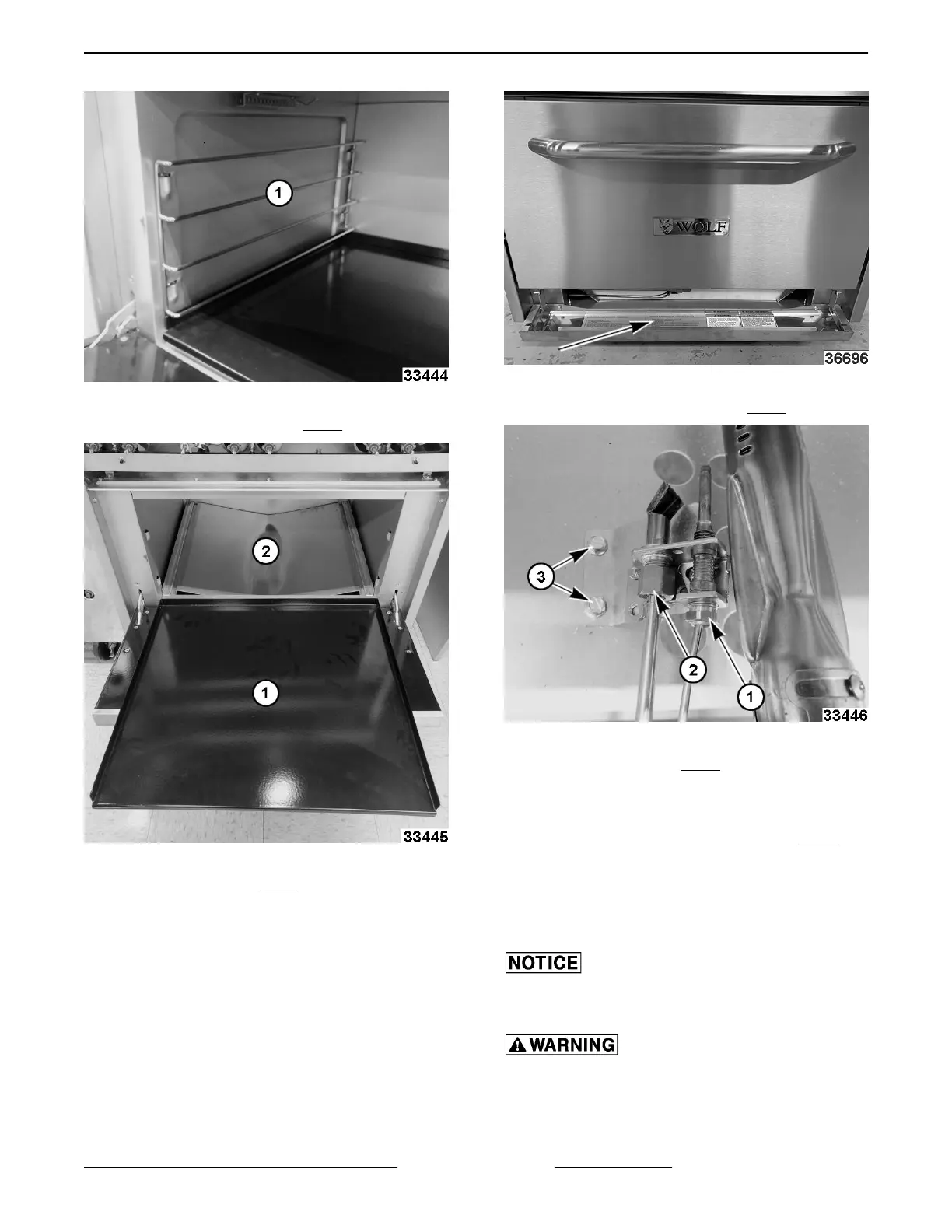

Fig. 6
2. Lift cavity bottom panel (1, Fig. 7) and slide out.
Fig. 7
3.
Remove V baffle (2,
Fig. 7).
4.
Lower kick panel.
Fig. 8
5. Remove thermocouple nut (1, Fig. 9).
Fig. 9
6.
Remove pilot nut (2,
Fig. 9).
NOTE: Take care not to lose pilot orifice after
removing nut.
7.
Remove mounting bracket screws (3,
Fig. 9) to
remove pilot oven assembly.
NOTE:
If replacing oven pilot assembly , remove pilot
tubing and thermocouple from oven pilot assembly.
8. Reverse procedure to install.
When installing, do not bend and kink the capillary
tube or damage to the component may occur.
All gas joints disturbed during servicing must be
checked for leaks. Check with a soap and water
solution (bubbles). Do not use an open flame.
9.
Verify operation.
WX RANGE - 2. REMOVAL AND REPLACEMENT PARTS
Page 5 of 27 F45992 (1123)
