12

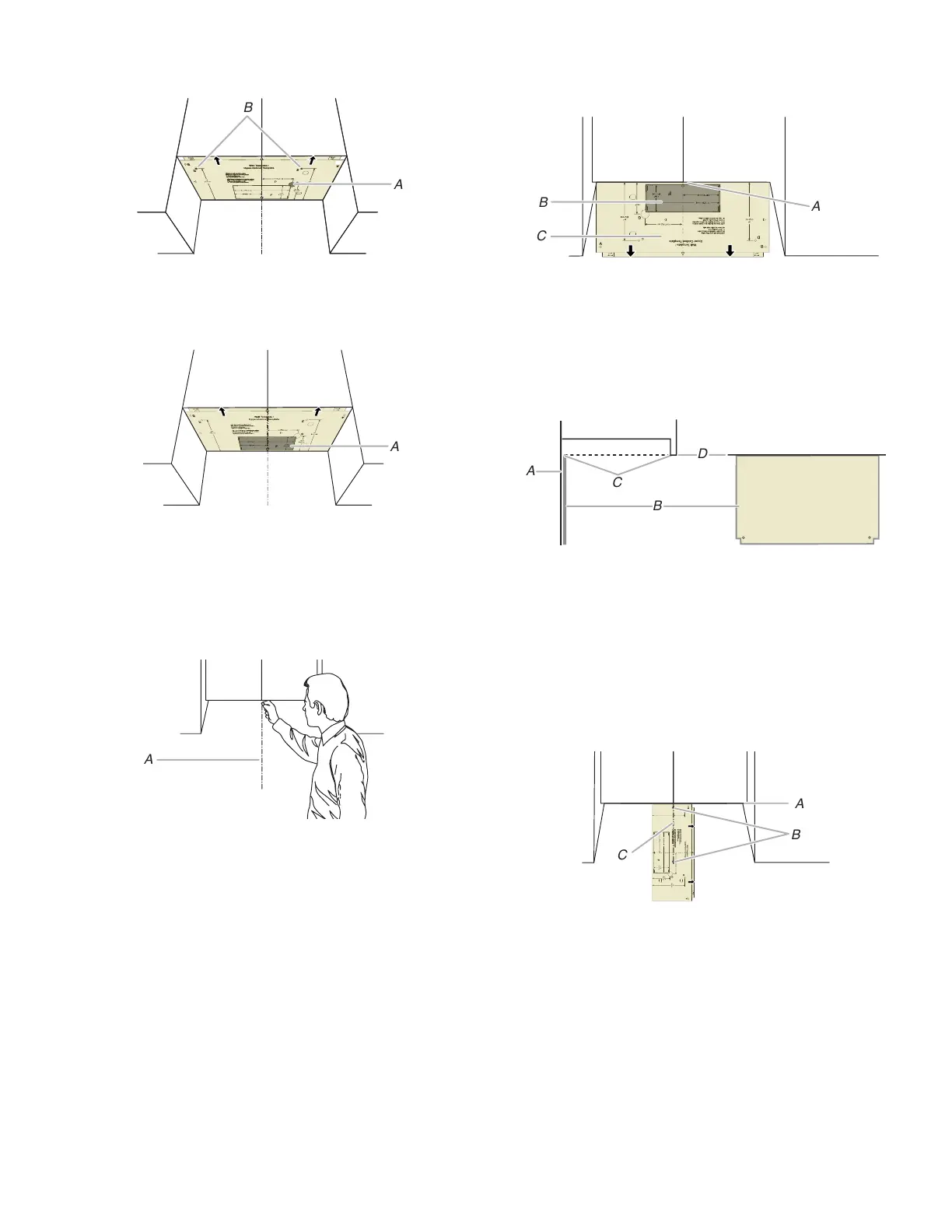

4. Use a pencil to mark the power cord hole and two mounting
nut holes.
A
B
A. Power Cord Hole
B. Mounting Nut Holes
5. Use a pencil to mark the upper cabinet vent hole. This step
can be skipped if your unit is using recirculation or wall venting
installation.
A
A. Upper Cabinet Hole
Mark Rear Wall
The microwave oven must be installed on a minimum of 1 wall
stud, preferably 2, using a minimum of 1 lag screw, preferably 2.
See “Find the Wall Stud(s)” section for find the wall studs.
1. Use a pencil to mark the power cord hole and two mounting
nut holes.
A
A. Centerline
2. Align the center markers on the cardboard plate, to the
centerline on the wall, making sure it is level, and that the top
of the cardboard template is butted up against the back edge
of the upper cabinet. (see following NOTE before making
marks).
Use a pencil to mark the wall venting hole (wall venting
installation only), skip it if your unit is for recirculation or upper
cabinet venting installation.
A
B
C
A. Back Edge of Upper Cabinet
B. Wall Venting Hole
C. Cardboard Plate
NOTE:
� If the front edge of the upper cabinet is lower than the back
edge, lower the cardboard template so that its top is level
with the front edge of the cabinet.
A
C
B
D
A. Rear wall
B. Cardboard plate
C. Top of cardboard plate must align with front edge of
cabinet
D. Front edge of upper cabinet
3. Vertical the cardboard plate and hold the it in place on the rear
wall while aligning the side center marks (B) on the cardboard
plate with the vertical centerline draw in step 1. Make sure the
cardboard plate is level, and that the top of the cardboard
template is butted up against the bottom edge of the upper
cabinet.
B
A
C
A. Bottom Edge of Upper Cabinet and Top of
the Cardboard Plate
B. Side Center Marks on Cardboard Plate
C. Centerline
