13

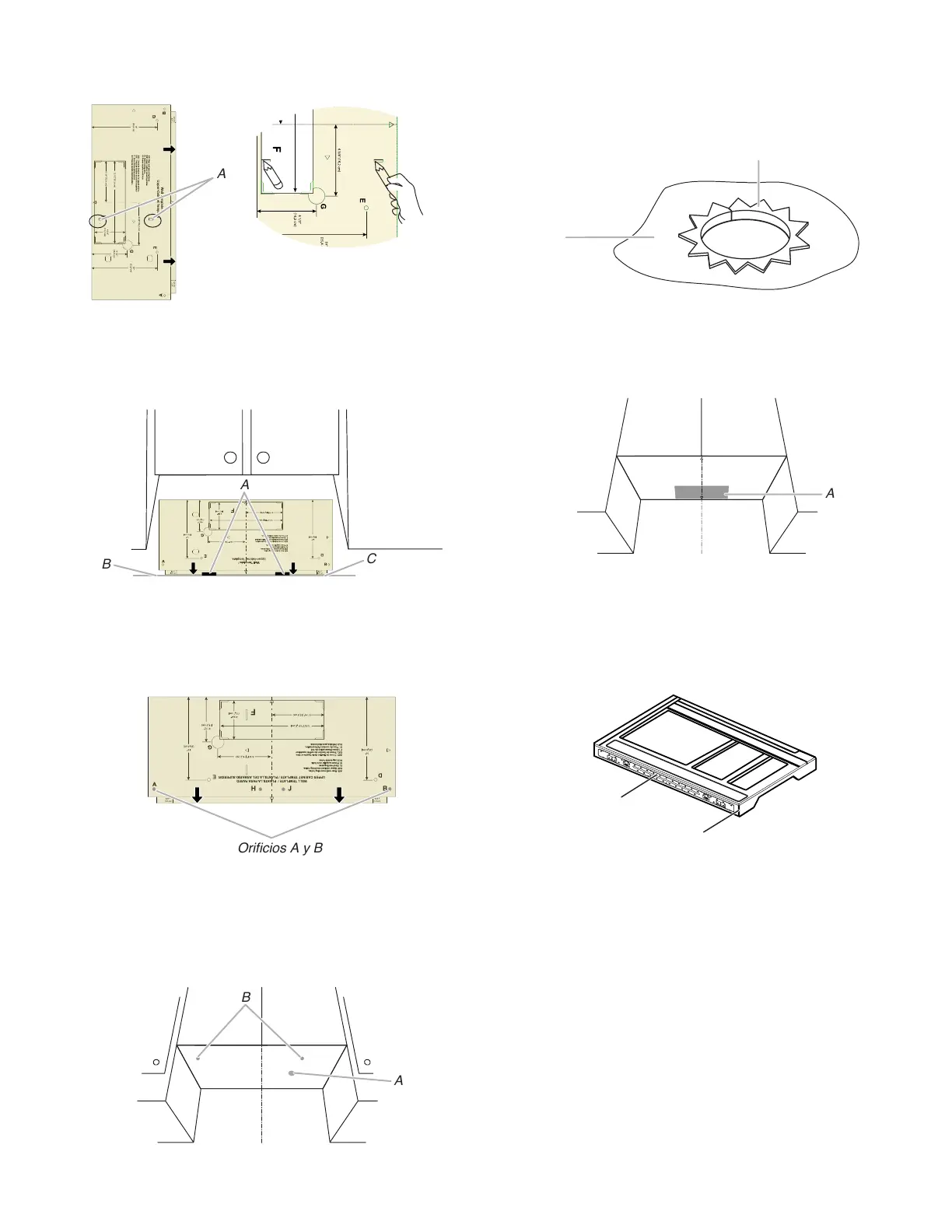

4. Find and mark the two bottom position lines (A) on the
cardboard plate.
A
A. Cardboard Plate Bottom Position Line
5. Using the bottom edge of the cardboard plate, align it with the
two small lines (A), and draw a line (B) indicating where the
bottom edge of the mounting plate (C) should be.
A
B
C
A. Two Small Lines
B. Cardboard Plate Bottom Line
C. Bottom Edge of Mounting Plate
6. Draw A and B two small circles, H and J is not necessary,
depending on your need.
Orificios A y B
Drill holes in Upper Cabinet
1. Using a drill, cut out the power cord hole (A).
2. Drill two mounting nut holes (B), which are 3/8" (10 mm) holes
at points “D” and “E” on the cardboard template. These are for
two 1/4-20 x 3" bolts and washers used to secure the
microwave oven to the upper cabinet.
A
B
A. Power Cord Hole
B. Mounting Nut Holes
NOTE: If upper cabinet is metal, the supply cord bushing
needs to be installed around the supply cord hole as shown.
A
B
A. Metal cabinet
B. Power supply cord bushing
3. Using a keyhole saw, cut out the rectangular roof venting
cutout area. Skip this step if for recirculation venting or wall
venting installation.
A
A. Roof Venting Cutout Area
Drill holes in Rear Wall
1. The mounting plate is located inside the inner foam in the
cavity, take it out.
The mounting plate is folded, open it to
180 degree at plate. The mounting plate is located inside the
outer foam in the carton box, take it out.
A
B
A. Mounting Plate
B. Outer foam in the carton
