11

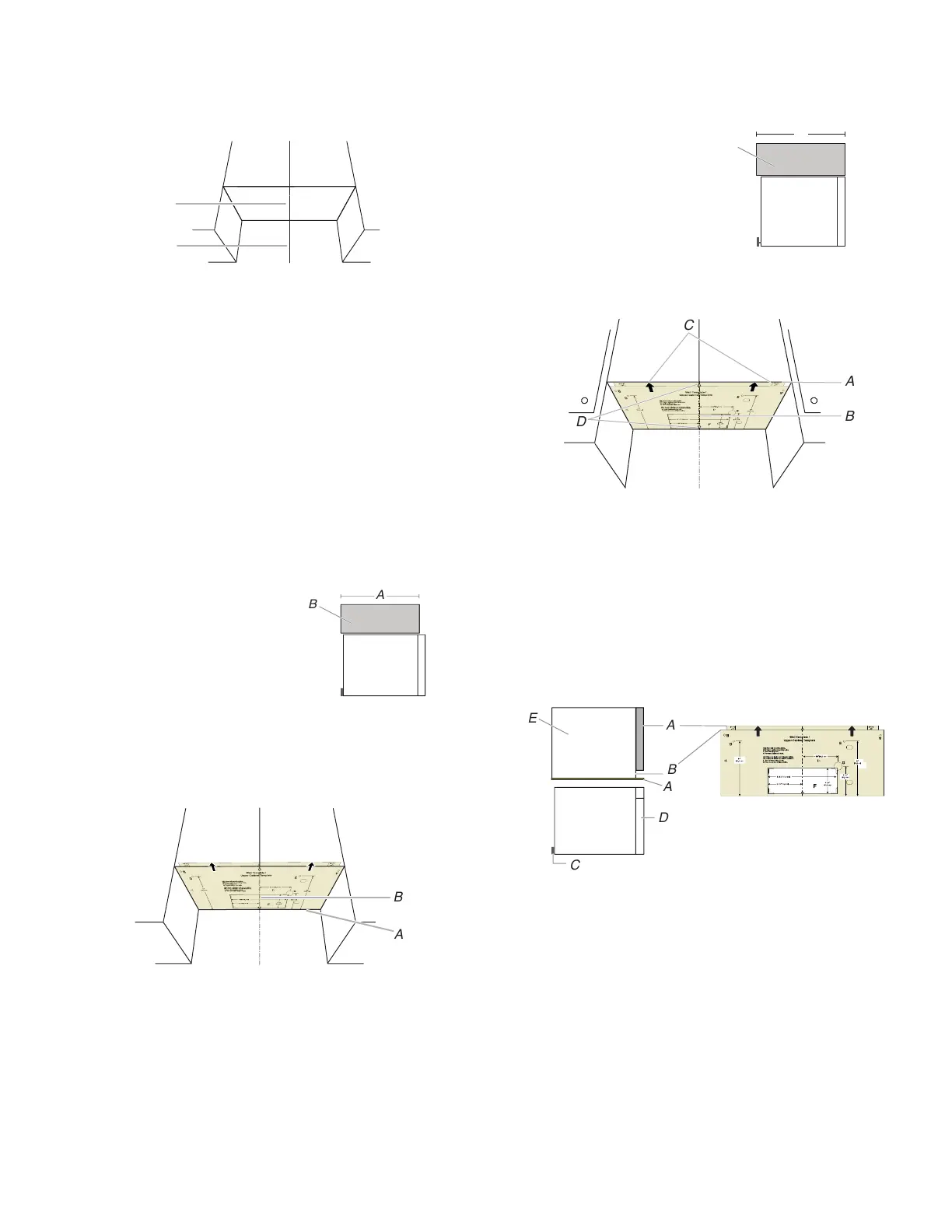

Mark Upper Cabinet
1. Using a tape, measure clearly and mark the vertical centerline
of the opening. Make sure it aligns with the vertical wall
centerline.
A
B
A. Upper Cabinet Centerline
B. Wall Centerline
NOTE: The cardboard plate is used for installation in cabinets
with depth of 12" to 13", (30.4 cm to 33.02 cm) but need some
adjustment for different depths.
If cabinets are deeper than 13" (33 cm), and up to 16"
(40.6 cm), use the bump out mounting kit, replacing the
mounting plate supplied with the product. The bump out
mounting kit (part#- W11630300) is not provided.
To order, see the “Online Ordering Information” section of the
Quick Start Guide.
See the following steps 2, 3.
If your cabinet is 12" to 12
3
/
4
" (30.5 cm to 32.4 cm) depth,
follow the step 2:
2. Place the cardboard plate against the bottom of the upper
cabinet.
NOTES:
� Make sure the back
edge of the cardboard
plate aligns with the wall
and back edge of upper
cabinet.
� Make sure the center
marks on the cardboard
plate align with the upper
cabinet centerline which
draw in step 1.
� Make sure the arrow on
the cardboard plate are
facing out.
B
A
A. Less than 12
3
/
4
" (32.4 cm)
deep
B. Cabinet
B
A
A. Back Edge of Cardboard Plate and Back Edge of
Upper Cabinet
B. Upper Cabinet Centerline and Center Marks on
Cardboard Plate
If your cabinet depth is 12
3
/
4
" to 13" (32.4 cm to 33 cm)
depth:
3. Place the cardboard plate against the bottom of the upper
cabinet.
NOTES:
� Make sure the front edge
of the cardboard plate
align with the front edge
of upper cabinet.
� Make sure the center
marks on the cardboard
plate align with the upper
cabinet centerline which
draw in step 1.
A
B
A. (Flush) 12
3
/
4
" to 13"
(32.4 cm to 33 cm) deep
B. Cabinet
B
A
C
D
A. Front Edge of Cardboard Plate and Front Edge
of Upper Cabinet
B. Upper Cabinet Centerline
C. Arrows on Cardboard Plate
D. Center Marks on Cardboard Plate
NOTE: If the upper cabinet doors protrude from the upper
cabinet, the cardboard can be adjusted outward to be flush
with the upper cabinet door.
For example the upper cabinet door is 3/4" (1.9 cm) thick, you
can align the cardboard plate 3/4" (1.9 cm) line with the upper
cabinet.
Flush to cabinet door
A
B
A
C
D
E
A. Front Edge of Cardboard Plate and Upper Cabinet
Door
B. Upper Cabinet and Cardboard Plate 0.75" (1.9 cm)
Line
C. Mounting plate
D. Microwave oven door
E. Cabinet
