26

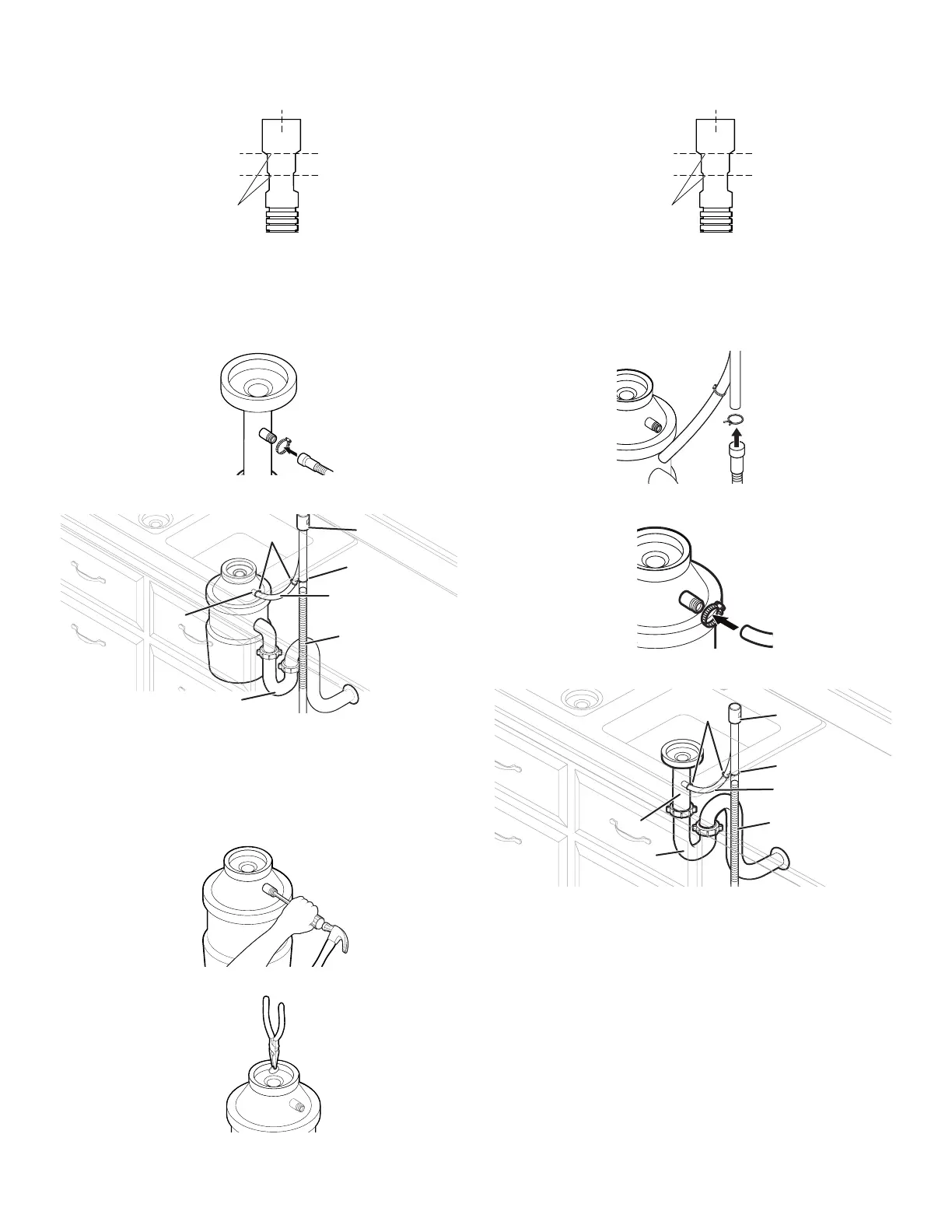

1. Fit rubber end (A) of drain hose to waste tee and cut if
needed.
A
A. Two cut lines
NOTE: Do not cut ribbed section.
2. Attach rubber end of drain hose to waste tee with a drain hose
clamp (black color) (provided). Use pliers to squeeze clamp
open and move into position. If the drain hose was cut, use a
1
1
/
2
" to 2" (38 mm to 50 mm) screw-type clamp (not provided).
Option C: Waste disposer – with air gap
A
B
C
D
E
F
G
A. Screw-type clamps
B. Disposer inlet
C. Drain trap
D. Drain hose
E. Rubber hose connector
F. Drain hose clamp (black
color)
G. Air gap
Helpful Tip: Remove disposer knockout plug.
1. Using a hammer and screwdriver, knock plug into disposer.
2. Use needle-nose pliers to remove plug.
3. Connect rubber end (A) of drain hose to air gap and cut if
needed.
A
A. Two cut lines
NOTE: Do not cut ribbed section.
4. Attach drain hose to air gap with drain hose clamp (black
color) (provided). Use pliers to squeeze clamp open and move
into position. If the drain hose was cut, use a 1
1
/
2
" to 2"
(38 mm to 50 mm)screw-type clamp (not provided).
5. Use a rubber hose (not provided) with screw-type clamps (not
provided) to connect from air gap to disposer inlet.
Option D: No waste disposer – with air gap
A
B
C
D
E
F
G
A. Screw-type clamps
B. Waste tee
C. Drain trap
D. Drain hose
E. Rubber hose connector
F. Drain hose clamp (black
color)
G. Air gap
