25
Remove the short screws from the package and insert them
into four of the six mounting holes provided. Using a Phillips
head screw driver, screw them into the cabinet. If longer
screws are needed, the installer will need to provide.

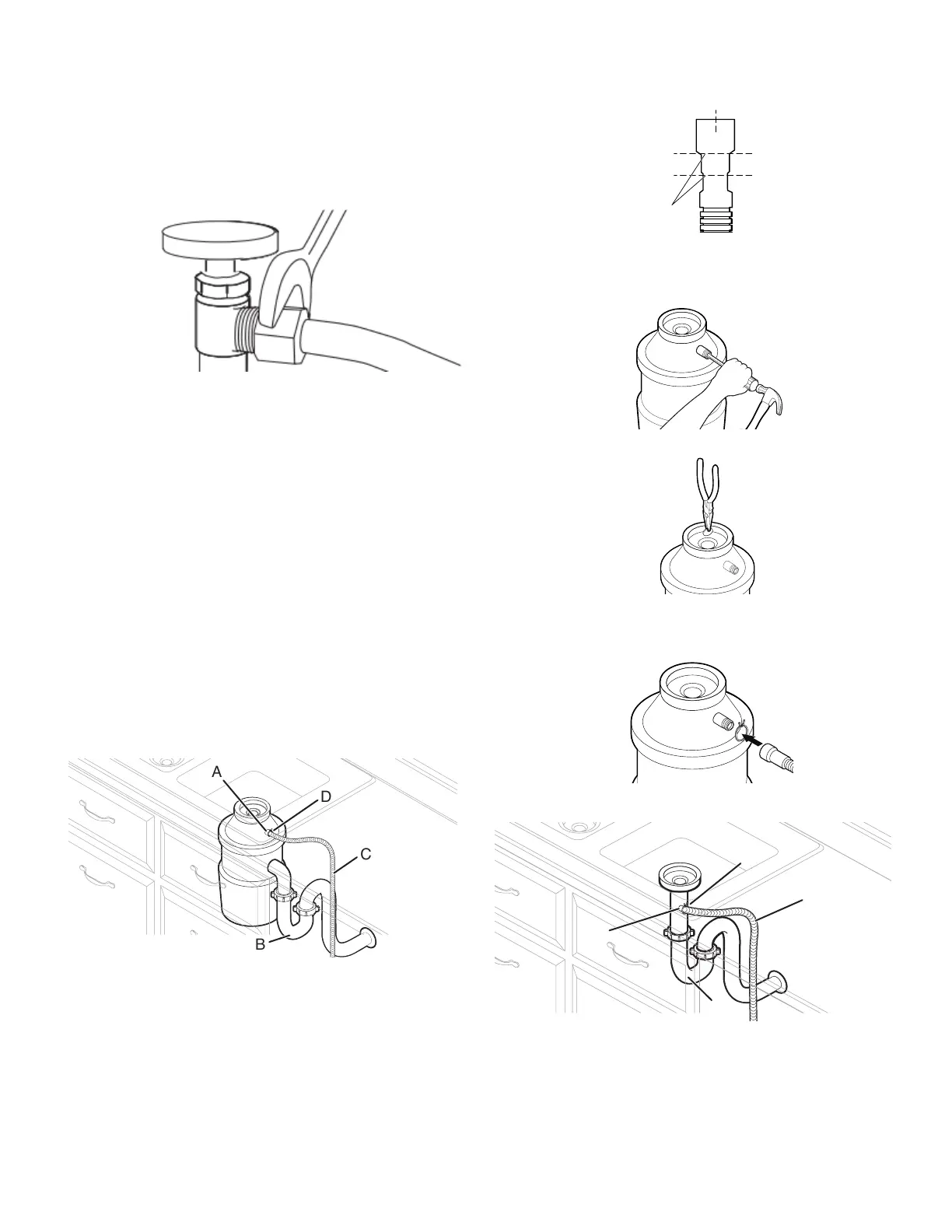

Connect Water Line to House
Shutoff Valve
31. Attach water supply line
Attach the water supply line (flexible braided line) to the hot
water line using a connection configuration that is in
compliance with local codes and ordinances. The water
supply to the dishwasher should have a manual shutoff valve
located under the sink.
Connect Drain Hose
32. Connect drain hose
Connect drain hose to waste tee or waste disposer using one
of the following options:
� Option A: Waste disposer – no air gap
� Option B: No waste disposer – no air gap
� Option C: Waste disposer – with air gap
� Option D: No waste disposer – with air gap
IMPORTANT: The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least
20" (508 mm) above the floor where the dishwasher will be
installed.
Helpful Tip: To reduce vibration of the hose, keep the hose
away from the floor.
Option A: Waste disposer – no air gap
A
B
C
D
A. Disposer inlet
B. Drain trap
C. Drain hose
D. Drain hose clamp (black
color)
Helpful Tip: Remove disposer knockout plug.
1. Fit rubber end (A) of drain hose to waste tee and cut if
needed.
A
A. Two cut lines
NOTE: Do not cut ribbed section.
2. Using a hammer and screwdriver, knock plug into disposer.
3. Use needle-nose pliers to remove plug.
4. Attach drain hose to disposer inlet with drain hose clamp
(black color) (provided). Use pliers to squeeze clamp open
and move into position.
Option B: No waste disposer – no air gap
A
C
D
B
A. Waste tee
B. Drain trap
C. Drain hose
D. Drain hose clamp (black
color)
