24

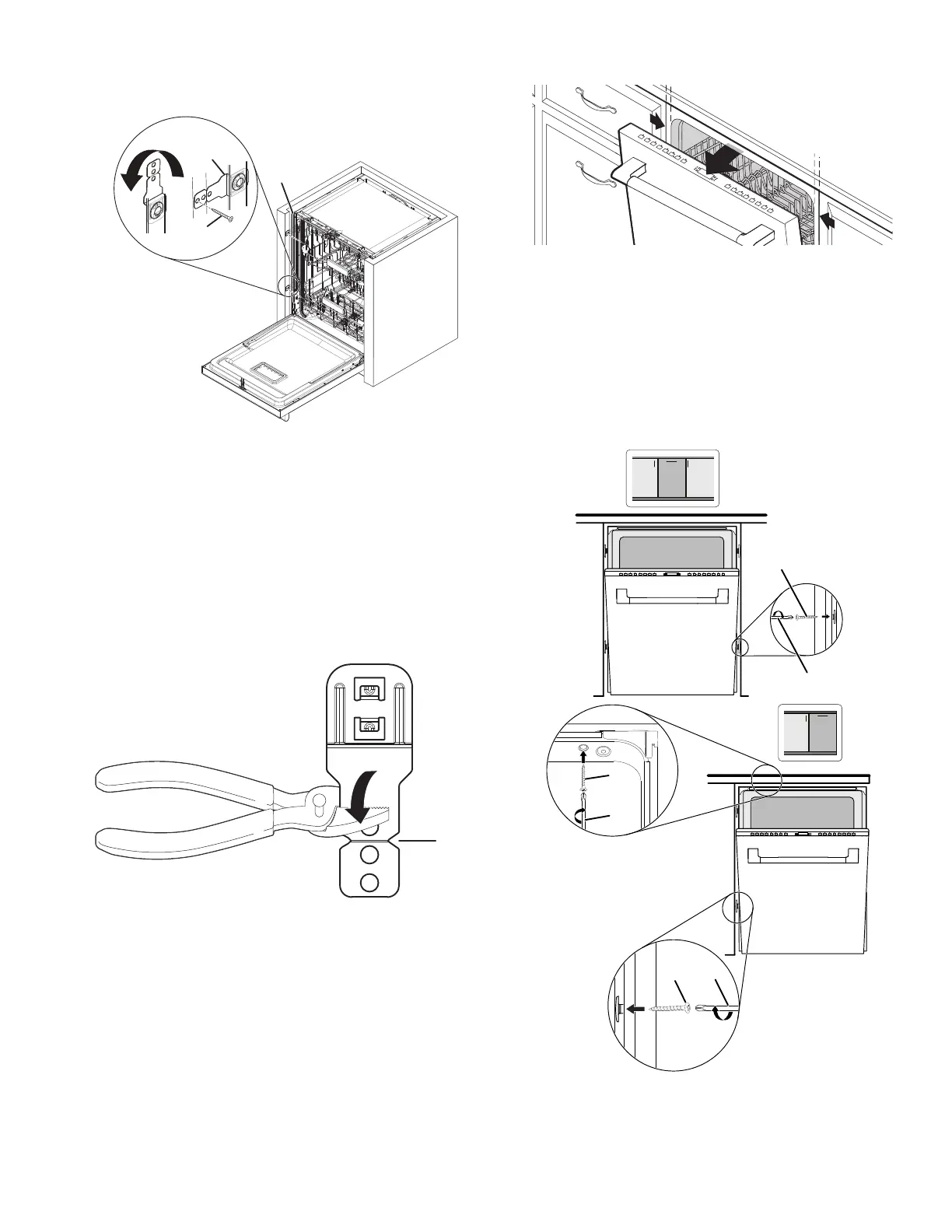

3. Once the spacers are locked into position, Secure the
dishwasher to cabinet with four 3.5 mm x 18 mm
Phillips-head screws (included).
A
B
C
A. 3.5 mm x 18 mm
Phillips-head screws (4)
B. Metal brackets (4)
C. Side gap covers (2)
NOTE:
� The dishwasher must be secured to keep it from
shifting when the door is opened or closed.
� Do not drop screws into bottom of dishwasher.
28. Break end of the brackets
Depending on the depth of the gap between dishwasher and
the face of the frame, Break off the end of the brackets along
the scored line using pliers to adjust the required length of
the bracket. Use sandpaper to smooth any burrs.
A
A. Score line
29. Check inner spacing
Open door and check that space between dishwasher
cabinet opening and tub is equal on both sides. If spacing is
not equal, loosen bracket screws and shift tub. Tighten
bracket screws.
Choose Anchor Attachment Method
IMPORTANT: The dishwasher must be secured to the cabinet as
one of the final steps. Prepare the dishwasher for this by attaching
the dishwasher to the cabinets using at least 4 of the 6 available
screw holes.
30. Cabinet Attachment:
B
A
B
A
A
B
A. #3.5 x 18 mm screws (4) for Cabinet mount
B. #2 Phillips screwdriver
