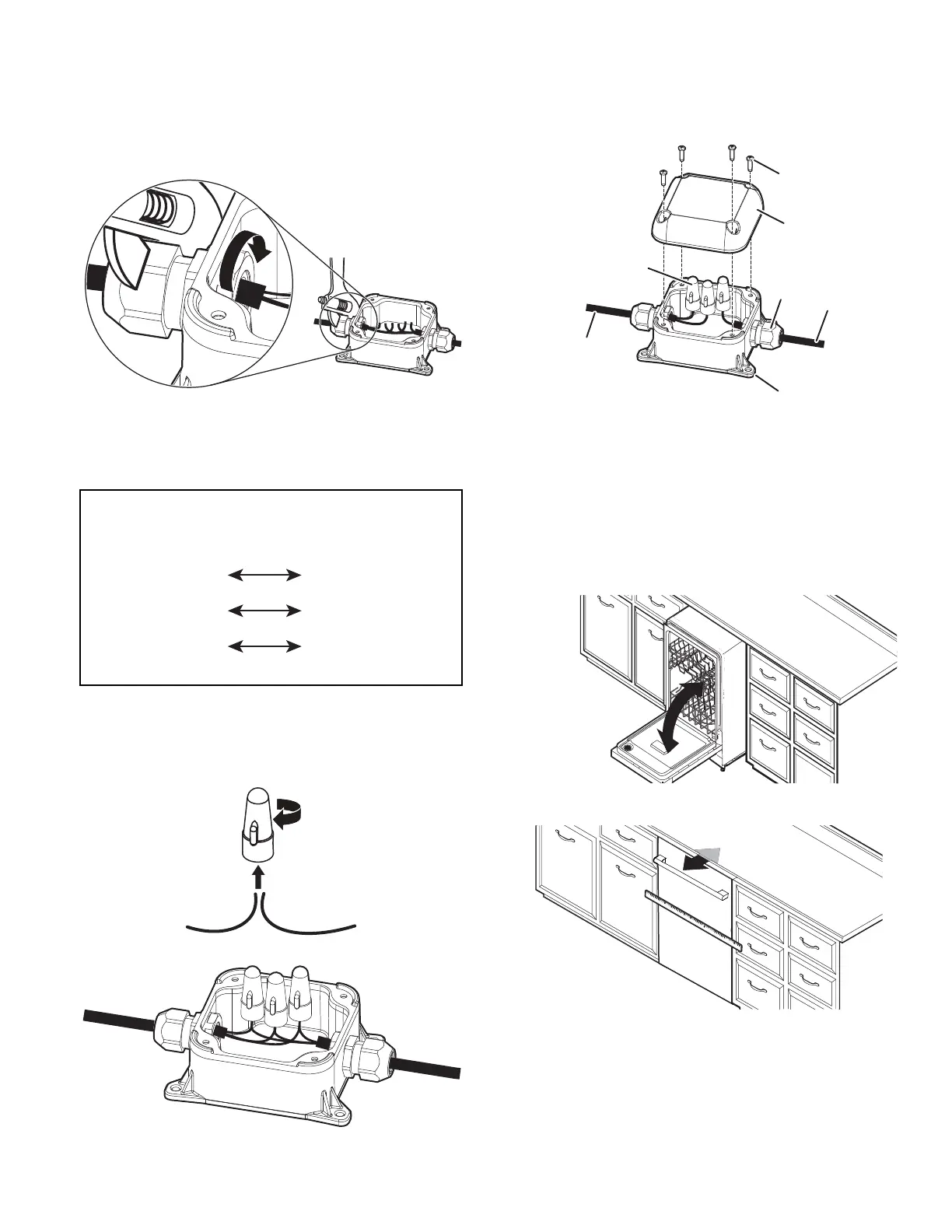

10. Route wire ends into the junction box through the round holes
on the sides. Securely attach the cable fittings to the junction
box using plastic mounting nuts supplied with the cable
fittings. Hand tighten the mounting nuts to the cable fittings
and then use a crescent wrench to tighten another 1/4 turn.
Use a second wrench or pliers to secure the cable fitting body
when tightening the mounting nut.
11. Connect wires together inside the junction box using the
supplied wire nuts. Connect wires of the same color together
(black to black, white to white, and bare/green to green).
NOTE: Do not pre-twist wires before making connections.
Wiring configuration
Home Wire or
Power Cord
Junction Box
Cable
white
white
black
black
bare/green
green
12. To apply a wire nut, hold the stripped/bare ends of wires
parallel to each other with their ends aligned. Firmly push
wires into a wire nut and twist clockwise until secure (the
insulated wires outside the connector begin to twist). Gently
tug on each wire making sure they are secure.
13. Re-attach the junction box lid using a #2 Phillips screwdriver.
Ensure that wires are not being pinched between the lid and
base of the junction box. The Junction box lid must be
attached with the 4 screws removed in step 3 and ensure the
lid is fully closed and snugly attached to base.
A
B
F
C
D
E
G
A. Junction box cable
B. Power cord or Home wiring
C. Wire nuts (3)
D. Junction box lid
E. Screws (4)
F. Cable fittings (2)
G. Junction box base
14. The junction box is not intended to be used with rigid metal
conduit.
Final Installation Check
21. Open and close door
22. Align Dishwasher Flush to Cabinet
Align dishwasher flush to cabinet.
