20

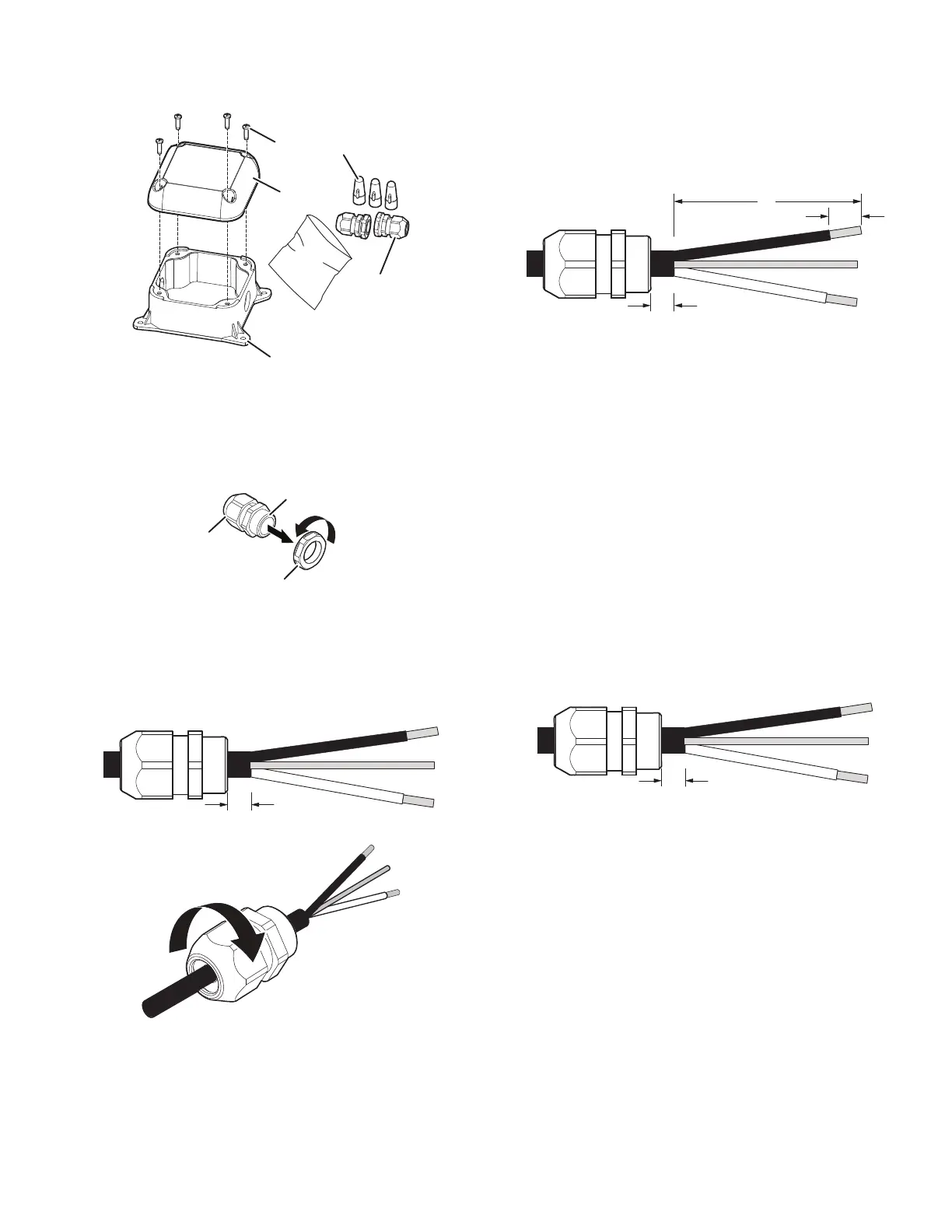

4. Remove the plastic bag containing cable fittings and wire nuts
from the inside of the junction box. Take out the cable fittings
and wire nuts from plastic bag.
B
D
E
A
C
A. Junction box base
B. Cable fittings (2)
C. Wire nuts (3)
D. Junction box lid
E. Screws (4)
5. Remove the mounting nuts from cable fittings as shown
below.
A
B
C
A. Elongated (strain relief) nut
B. Strain relief body
C. Mounting nut
6. Attach one cable fitting to the junction box cable from the
dishwasher paying thorough attention to the orientation (see
below figure). The cable fitting shall tighten against the
secondary insulation (PVC jacket).
A
A. 0.25" (6.35 mm) minimum
Use wrench and/or pliers to fully tighten the elongated (strain
relief) nut against the strain relief body.
7. For Direct (home) wire connection (12-2/14-2 non-metallic
sheathed/Romex), Strip jacket insulation of the home wire to
expose the wires to the length of 5
1
/
16
" (129.3 mm) as shown
below. Strip each wire end by 0.75" (19 mm). Attach the
second cable fitting to home wiring paying attention to the
orientation (see below figure). Use wrench and/or pliers to
fully tighten the elongated (strain relief) nut against the strain
relief body.
B
A
C
A. 3
3
/
4
" (95 mm)
B. 0.75" (19 mm)
C. 0.25" (6.35 mm) minimum
8. For Direct (home) wire connection using armored cable or
flexible metal conduit use only a UL/CSA-approved metallic
strain relief for the type of conduit being used. Ensure 4"
(101.6 mm) of wire is extending out past the end of the strain
relief. Strip each wire end by 0.75" (19 mm). Attach the strain
relief to the home wiring per the strain relief manufacturer's
instructions. Attach strain relief to the box per the strain relief
manufacturer's installation instructions.
If installing the junction box using armored cable or flexible
metal conduit, either mount the box in a horizontal orientation
so the strain reliefs are on the left and right side of the box
when looking at it from the front, or if installing the box in a
vertical orientation (with the strain reliefs above and below the
box when viewing form the front), install it with the plastic
strain relief coming from the product at the top and the metal
strain relief at the bottom.
9. For power cord connection, attach the second cable fitting to
the power cord paying attention to the orientation (see below
figure). Use wrench and/or pliers to fully tighten the elongated
(strain relief) nut against the strain relief body.
A
A. 0.25" (6.35 mm) minimum
NOTE: Non-metallic sheathed wire is for direct wire
connection only.
