16

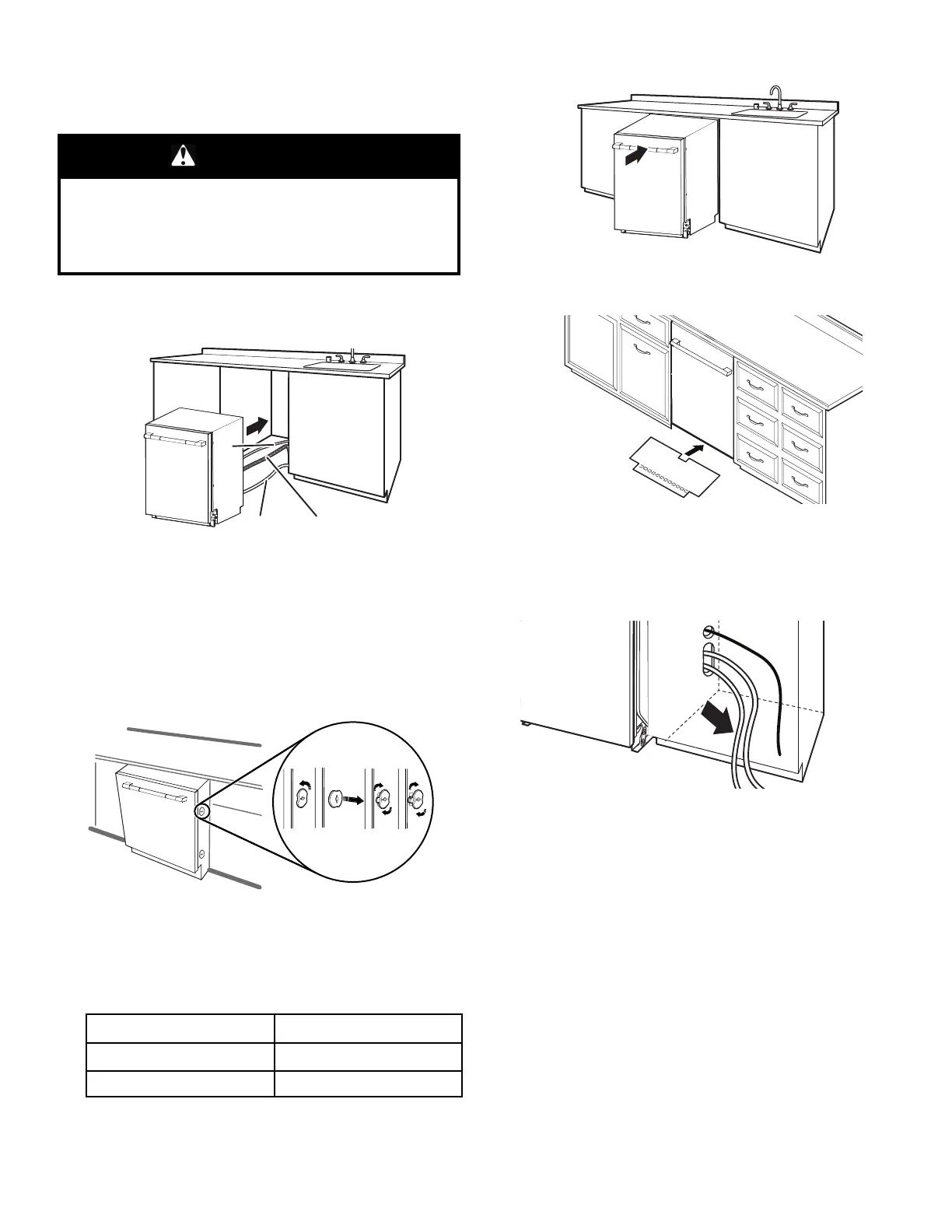

Place Dishwasher in Cabinet
Refer to the section “Electrical Connection” in this Owner’s
Manual for connecting to the power supply before placing the
dishwasher in the cabinet.
WARNING
Excessive Weight Hazard
Use two or more people to move and install or uninstall
appliance.
Failure to do so can result in back or other injury.
NOTE: Route water supply, drain hose, and power cord out the
rear of the dishwasher.
16. Move dishwasher close to cabinet opening
B
C
A
A. Water line
B. Junction box cable
C. Drain hose
Route the utilities through the holes in the cabinet and pull
the slack out at the same time as the dishwasher is pushed
into the cabinet.
NOTE: Route electrical lines only through the electrical
conduit hole that was previously sanded or protected by a
grommet.
17. Adjust side spacers
Measure the top and bottom width of opening of the frame
less cabinet. Remove and adjust the 4 included dishwasher
spacers, by turning 90 degrees, and removing with a slotted
screwdriver. Each spacer has 3 positions.
NOTE: If the cabinets are not frame less, additional spacers
will be required (included) and need to be applied by the
installer.
Types of Cabinets Types of Attachment
Frame less cabinets Plastic spacers
Face frame cabinets Metal brackets
See section “Secure Dishwasher in Cabinet Opening” in this
Owner’s Manual for Securing dishwasher with different types
of cabinets.
18. Move Dishwasher into final position
19. Place foam insulation pad below the
dishwasher (on some models)
After pushing the dishwasher in the cabinet opening, adjust
the leveling feet to standard height of 33
7
/
8
" (860 mm) and
up. Then take the floor insulation pad and slide it from the
front (gap between the floor & the drip tray).
The floor pad is designed to go around the leveling legs.
20. Pull slack from utilities
NOTE: Pull slack out of utilities at the same time the
dishwasher is pushed into the cabinet opening to avoid any
kinks.
