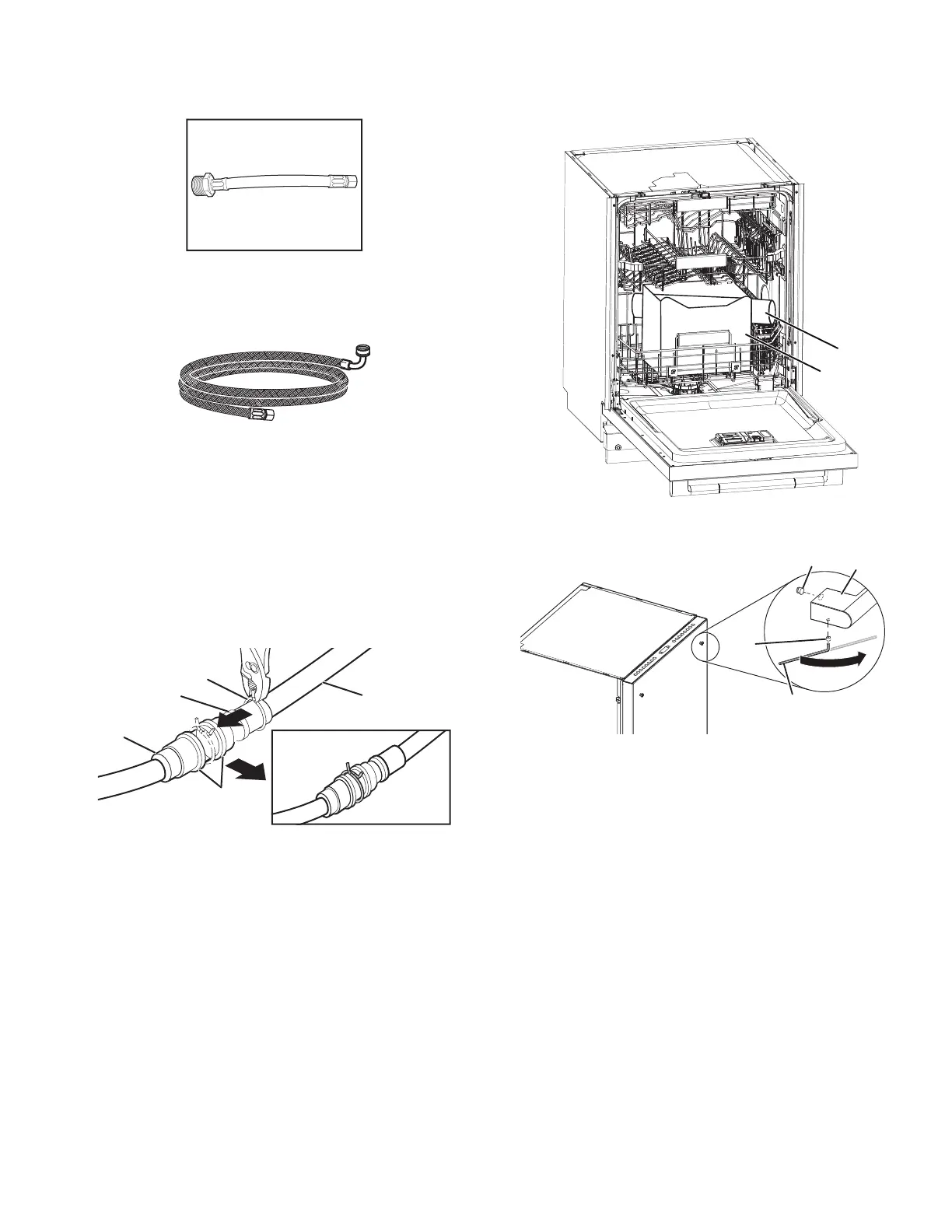

12. Add 3/8" (9.5 mm) to 3/4" (19 mm) water inlet
adapter to the Leak Detection System Hose
(on some models)
Connect the 3/8" (9.5 mm) compression fitting of the water
inlet adapter to the water supply line and attach the 3/4"
(19 mm) connection to the Leak Detection System hose .
13. Accessory inlet hose
See the “Tools and Parts” section at the front of the guide for
part details and order. Connect the 3/8" (9.5 mm)
compression fitting to the water supply line and Attach the
3/4" (19 mm) elbow fitting connection to the dishwasher
facing upward as shown above. Confirm the flexible braided
or non braided line is long enough to reach the house water
connection. If the hose is not long enough, have a plumber
install a supply valve closer to the dishwasher.
If a Drain Hose Extension is
Required
14. Slide clamp onto connector
A
B
C
D
E
A. Silver clamp
B. Rubber drain hose
connector
C. Stop
D. Drain hose stop
E. Drain hose
Using pliers, squeeze open the silver drain hose clamp, and
slide it onto the connector between stops.
Install Door Handle (on some
models)
15. Install Door Handle
B
A
A. Cardboard box containing the Accessories
B. Cardboard tube containing the Door Handle (on some models)
A
D
B
C
A. Setscrew (in the bottom of the handle)
B. Hex key
C. Handle
D. Mounting stud
IMPORTANT: Do not scratch the front panel during this
procedure. If door panel has a protective film, peel film back
past the point of the handle studs before installing handle.
Handle is easiest to install while unit is on its back.
Remove the door handle and hex key from the packaging.
Setscrews are already installed in the handle. Place handle
on mounting studs with the setscrews facing towards the
bottom of dishwasher. Push the door handle tightly against
the door. Insert the short end of the hex key into the
setscrews. Tighten the setscrews 1/4 turn past snug.
Retain hex key with Owner’s Manual.
