13

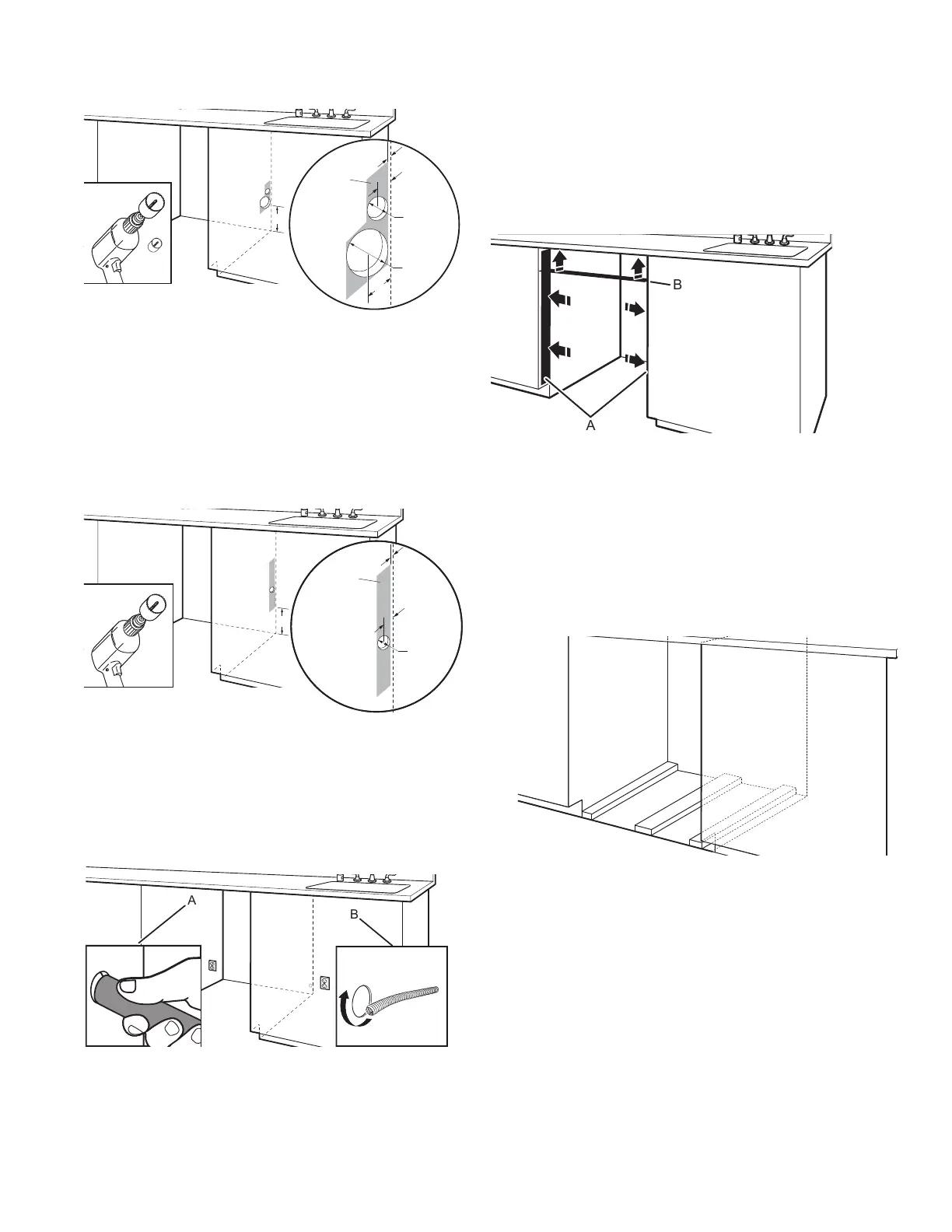

4. Drill hole locations for Water Supply and Drain
hose (Optional hole type)
A
E
D
E
B
C
D
F
G
A. 6" (152 mm), minimum height of allowable area from bottom for
utility connections.
B. 1/2" (12.7 mm), Thickness of back cabinet wall.
C. 3
1
/
2
" width x 6" height (88.9 x 152.4 mm), Allowable area for
utility connections.
D. 1
1
/
2
" (38.1 mm), Diameter for drain hose hole.
E. 3
1
/
2
" (88.9 mm), Diameter for water supply hose hole.
F. 2
1
/
4
" (57.1 mm), Distance between center of water supply hose
hole to the back of the cabinet wall.
G. 1
1
/
4
" (31.7 mm), Distance between center of Drain hose hole to
the back of the cabinet wall.
5. Drill location for Electrical conduit hole
D
A
B
C
D
E
A. 6" (152 mm), minimum height of allowable area from bottom for
utility connections.
B. 1/2" (12.7 mm), Thickness of back cabinet wall.
C. 1
1
/
2
" width x 12" height (38.1 x 304.8 mm), Allowable area for
utility connections.
D. 1
1
/
2
" (38.1 mm), Diameter for Electrical conduit hole.
E. 1
1
/
4
" (31.7 mm), Distance between center of Electrical conduit
hole to the back of the cabinet wall.
6. Sand holes smooth
B
A
A. Wood cabinet
B. Metal cabinet
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover edges of hole with grommet (corrugated
tubing) included with installation materials inside the
dishwasher. Cut length to match hole perimeter.
Install Moisture Barrier
(Recommended for Wood
Countertops)
Moisture barrier/Wood shims
A
B
A. Install wood shims
B. Moisture barrier
Make sure the area under the countertop is clean and dry for
installation of the moisture barrier. Remove the backing of the
moisture barrier and apply to underside of the countertop along
the front edge of the counter. Trim the moisture barrier as
required.
NOTE: Install wood shims if side anchoring and the gap between
sides of the dishwasher are greater than 1/2" (12.7 mm) on each
side or are greater than the length of the anchor screws.
7. Built-up floors – add shims as needed
Built-up floors: If the kitchen floor is higher than the cabinet
opening’s floor—for example, the kitchen floor tile does not
extend into the cabinet opening—add shims, as needed, in
the area shown to bring the dishwasher up to 34" (864 mm)
below the countertop.
NOTE: Shims must be securely attached to floor to avoid
movement when the dishwasher is in use.
