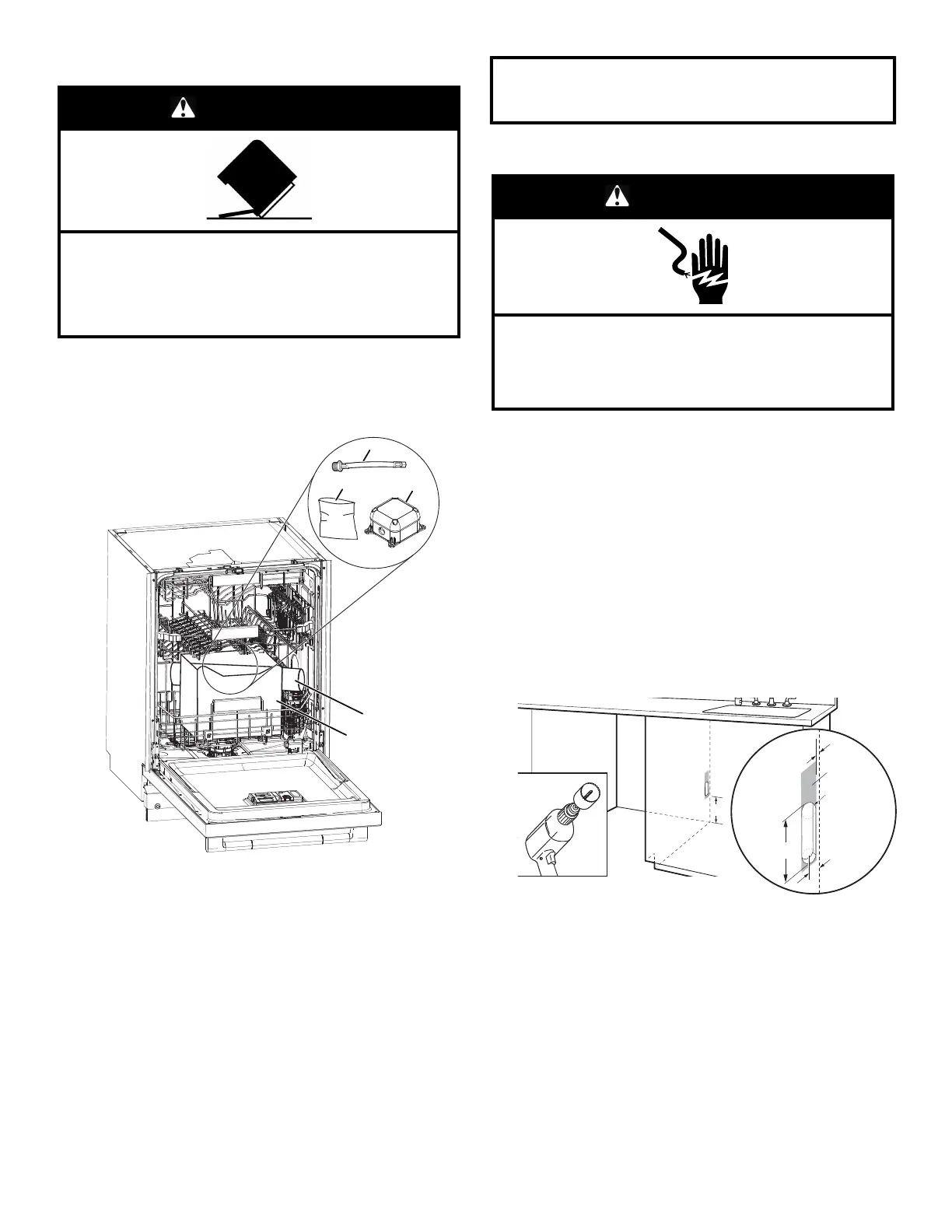

INSTALLATION INSTRUCTIONS
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
You Need To:
� Slowly open the dishwasher door while someone grasps the
rear of the dishwasher. Remove shipping materials. Place
included parts and literature aside in a safe place for later.
Close dishwasher door until latched.
B
A
C
D
E
A. Cardboard box containing the Accessories
B. Cardboard tube containing the Handle (on some models)
C. 3/8" to 3/4" (9.5 mm to 19 mm) Water Inlet Adapter
D. Assembly accessories
E. Junction box
IMPORTANT: Do not throw away the Cardboard box. It
contains installation materials inside.
NOTE: Each dishwasher is tested at the factory and may
contain some residual water in the tub as a result of the test.
� Observe all governing codes and ordinances.
� Install this dishwasher as specified in these instructions.
� The dishwasher must be installed to meet all electrical and
plumbing national and local codes and ordinances.
� Be sure when installing or moving the appliance that the power
cord is not kinked or damaged.
WARNING: To reduce the risk of electric shock, fire, or
injury to persons, the installer must ensure that the
dishwasher is completely enclosed at the time of installation.
Before You Begin
WARNING
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit
breaker box before installing appliance.
Failure to do so can result in death or electrical shock.
1. Disconnect power
Disconnect electrical power at the fuse box or circuit breaker
box before installing dishwasher.
2. Shut off water supply
Shut off water supply to the dishwasher.
Prepare Cabinet Opening – New
Utilities
NOTE: The electric and water holes may or may not be on the
same cabinet wall. It will depend on the location of water and
electric connections.
3. Drill hole location for Water Supply and Drain
hose (Preferred hole type)
D
A
E
D
C
B
F
A. 6" (152 mm), minimum height of allowable area from bottom for
utility connections.
B. 1/2" (12.7 mm), Thickness of back cabinet wall.
C. 2
1
/
4
" width x 6
1
/
16
" height (57.20 x 154.40 mm), Allowable area
for utility connections.
D. 1
3
/
4
" (44.4 mm), Diameter of Oval hole for water supply and drain
hose.
E. 3
3
/
4
" (95.3 mm), Height of Oval hole for water supply and drain
hose.
F. 2
1
/
4
" (57.1 mm), Distance between center of Oval hole to the
back of the cabinet wall.
