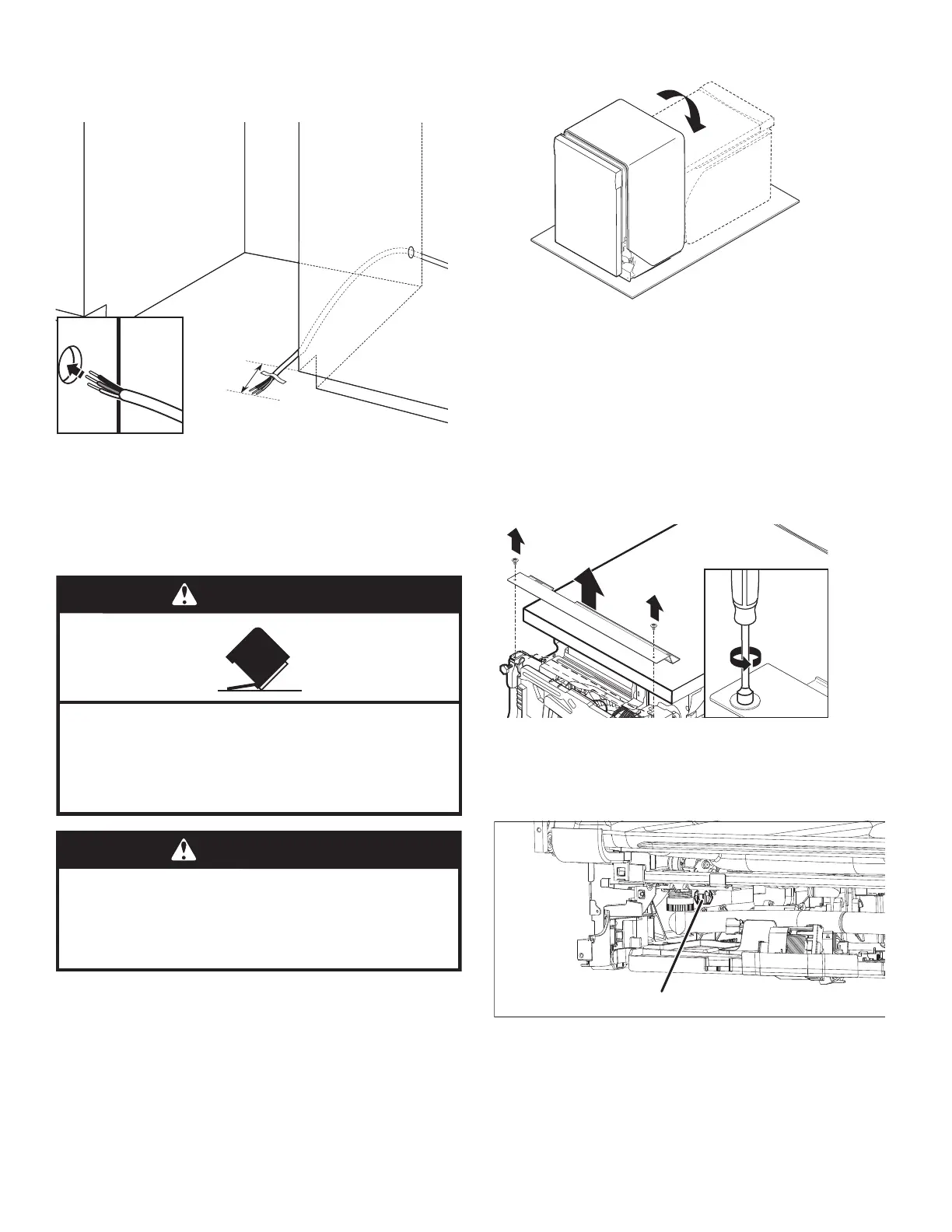

DIRECT WIRE ELECTRICAL
CONNECTION
1. Direct wire – route cable
If installing with direct wire, route the cable as shown. Do not
connect the wire to the product at this time. This connection will
be made later, after the unit is installed into the cabinet opening.
Route cable from power supply through cabinet hole. (Cable
must extend to the right front side of cabinet opening.) Tape
cable to the oor in area shown. This will prohibit cable from
moving when dishwasher is moved into cabinet opening.
PREPARE DISHWASHER
2. Put the dishwasher on its back
Helpful Tip: Remove all internal shipping material, drain hose,
installation kit, and handle (if included,) before laying on it’s
back, and do not remove lm on the door at this time.
Place cardboard under dishwasher until installed
in cabinet opening to avoid damaging oor covering.
Using two or more people, grasp sides of dishwasher door frame,
and place the dishwasher on its back.
Do not use the door panel as a worktable without rst covering
it with a towel to avoid scratching the door panel.
REMOVE ACCESS PANEL AND INSULATION
3. Remove access panels
Using a 5/16" (7.9 mm) nut driver, remove the two screws
attaching access panels to dishwasher. Once the screws are
removed push the access panel toward the top of the product to
unhook it and then remove it.
3a. Remove access panels
On some models, a service connection wire with a 3-pin
connector is intentionally left unplugged and tucked behind the
access panel. This is provided for use by the service technician.
NOTE: Leave this wire unplugged and placed out of the way
when reinstalling the access panel.
6”
(15.2 cm)
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
3-Pin Connector
