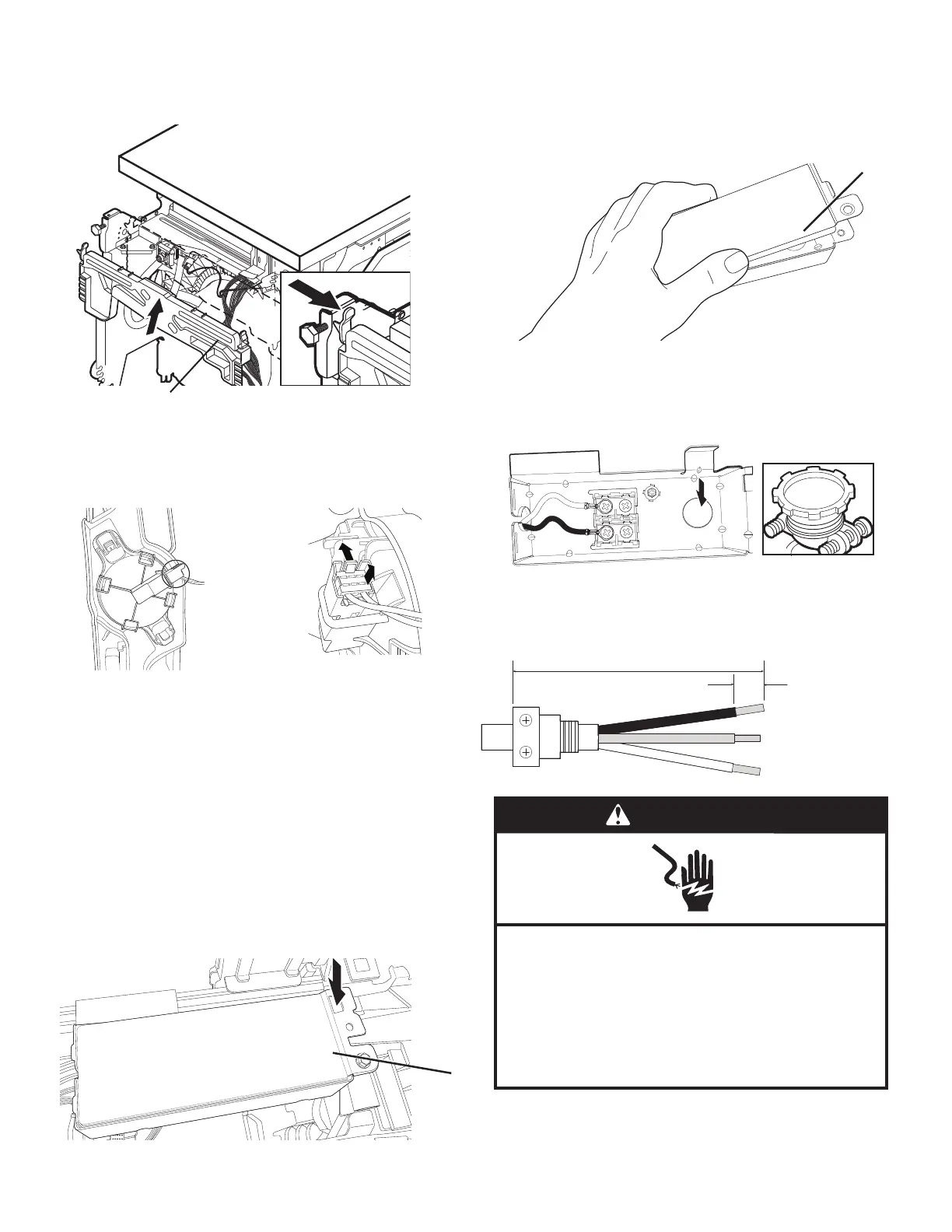

DISCONNECT AND REMOVE DRIP TRAY
ASSEMBLY
4. Remove drip tray assembly
To remove the drip tray assembly, press the snap at each side
of the plastic tray in toward the center of the product and pull
toward yourself. Be sure not to pull too far or too hard as the
oat switch wire is still connected at this time.
5. Remove oat switch wire
To remove the oat switch wire, gently push the connector latch
tab (1) and then pull the connector (2) out of the housing. The
oat itself should not be removed from the tray.
NOTE: Do not reinstall drip tray until instructed.
POWER CORD CONNECTION
Select UL Listed/CSA Approved power cord for the Dishwasher.
Power Cord Ki
t
Kit typically includes power cord, metallic strain relief, grommet,
and twist-on wire connectors (Straight: Whirlpool Part
Number 4317824, 90°: Whirlpool Part Number W10278923RP).
For proper installation, refer to the installation instructions
provided with the kit.
1. Remove terminal box
To remove the terminal box, depress the plastic latch, slide the
box toward the left of the unit along the metal tube and rotate the
left side of the box forward. Make sure that the product wiring is
still attached within the terminal box
2. Remove terminal box cover
Using 1/4" (6.4 mm) nut driver remove the screw holding the
terminal box cover. Remove the cover by lifting it out of the box.
Keep the cover for later use.
3. Install strain relief
Install a UL Listed/CSA Approved metallic strain relief. Make sure
screw heads are facing up when tightening conduit nut. Strain
relief is provided with the power cord kit.
Suggested wire length relative to strain relief
2. Remove
access
panel
Terminal
Box cover
4
1
/2"
(114.3 mm)
0.75" - 1"
(19 mm - 25 mm)
WARNING
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Drip tray assembly
1
2
Terminal
Box
