20

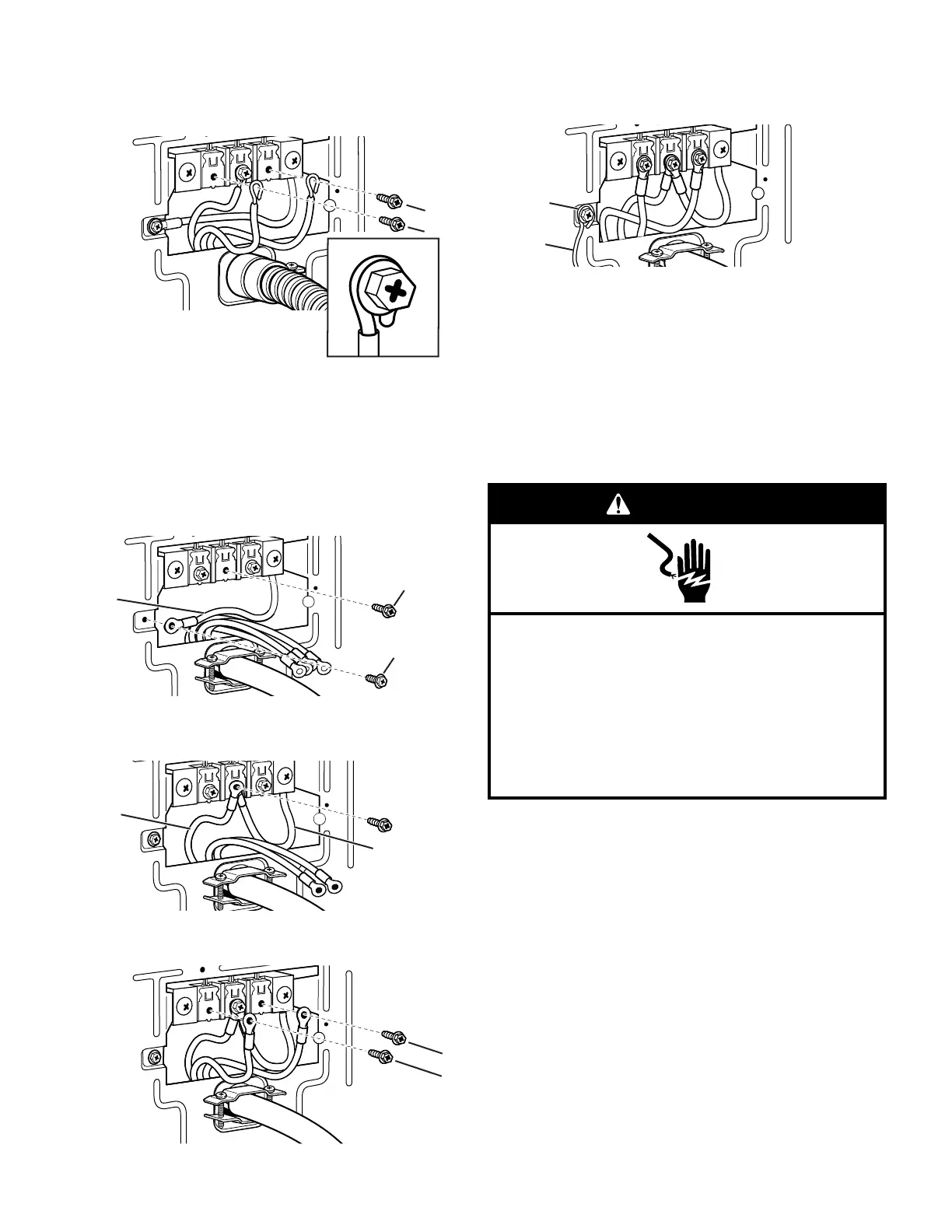

3. Place hooked ends of remaining direct wire cables (hooks
facing right). Squeeze hooded ends together and tighten
outer terminal block screws (F). Finally, re-install terminal
block cover and tighten hold-down screw. Tighten screws.
Go to “Complete Installation” section.
Connecting 3-Wire Connection: Optional
F
F
Use for direct wire or power supply cord where local codes
do not permit connecting cabinet-ground conductor to
neutral wire.
Connecting Neutral Wire
1. Remove center terminal block screw (A). Also, remove neutral
ground wire (B) by removing external ground conductor
screw (C).
2. Connect neutral ground wire (B) and neutral wire (white or
center) (D) of power supply cord/cable under center terminal
block. Tighten screw.
3. Connect remaining wires under outer terminal block. Tighten
screws (F).
B
A
C
B
D
F
F
4. Connect a separate copper ground wire (G) under the
external ground conductor to screw (C) an adequate ground.
Finally, re-install terminal block cover and tighten hold-down
screw. Go to “Complete Installation” section.
G
C
COMPLETE INSTALLATIONCOMPLETE INSTALLATION
1. Check the electrical requirements. Be sure that you have the
correct electrical supply and the recommended grounding
method. See “Electrical Requirements.”
2. Check that all parts are now installed. If there is an extra part,
go back through the steps.
3. Check that you have all of your tools.
4. Dispose of/recycle all packaging materials.
5. Plug into a grounded outlet, or connect power.
6. Check dryer operation: Close dryer door. Set the cycle.
Operating time will accumulate per number of coins.
NOTE: Dryer door must be closed for dryer to operate. When
door is open, dryer stops, but timer continues to run. To restart
dryer, close door and push START button.
7. Open the dryer door. Check that the inside of the dryer is
warm. If the burner does not ignite and you can feel no heat
inside the dryer, shut off dryer for 5 minutes. Check that
all supply valve controls are in “ON” position and that the
electrical cord is plugged in. Repeat 5 minute test.
8. If drying time is too long, make sure that the lint screen is clean
and that there are no obstructions to airow in the dryer vent
system.
9. Restart the dryer and allow it to complete a full heat cycle
(not air cycle) to make sure it is working properly.
Electrical Shock Hazard
Plug into a grounded 3 or 4 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
