IMPORTANT: A 4-wire connection is required where local
codes do not permit the use of 3-wire connections.
Direct wire cable must have 5 ft (1.52 m) of extra length so
dryer can be moved if needed.
Strip 5" (127 mm) of outer covering from end of cable, leaving
bare ground wire at 5" (127 mm). Cut 1½" (38 mm) from three
remaining wires. Strip insulation back 1" (25 mm). Shape ends
of wires into a hook shape.
Connecting Neutral Ground and Neutral Wires

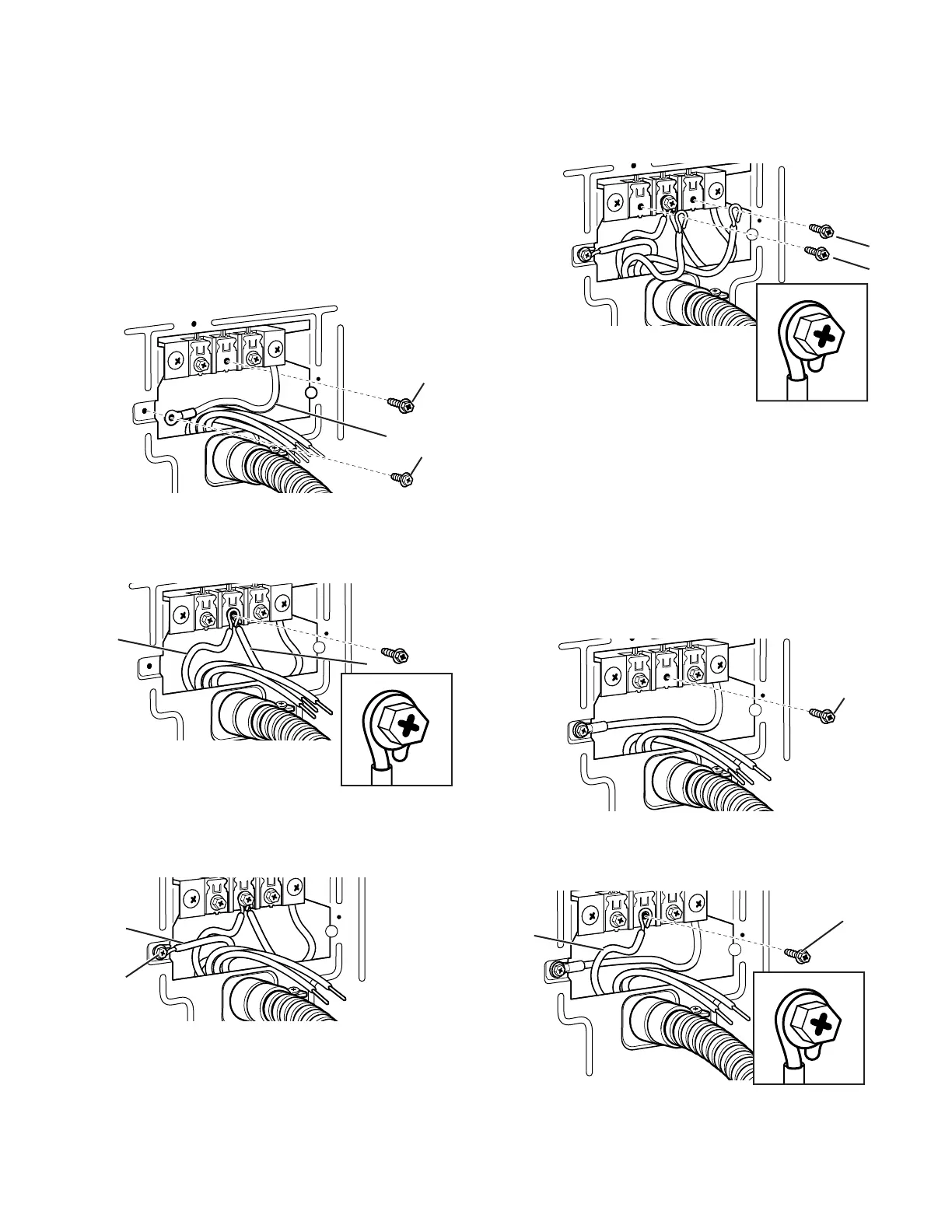

1. Remove center terminal block screw (A) and neutral ground
wire (B) by removing the external ground connector screw
(C).
2. Connect neutral ground (B) and place hooked end (hook
facing right) of neutral wire (white or center wire) cable (D)
under center terminal block screw (B). Squeeze hooked end
together. Tighten screw.
Connecting Direct Wire Ground
3. Connect ground wire (green or bare) (E) with external
ground connector screw (C). Tighten screw.
C
A
B
r
B
D
E
C
Connecting 4-Wire Connection: Direct Wire
Connecting Remaining Wires
4. Place hooked ends of remaining direct wire cables (hooks
facing right). Squeeze hooded ends together and tighten
outer terminal block screws (F). Finally, re-install terminal
block cover and tighten hold-down screw. Tighten screws.
Go to “Complete Installation” section.
F
F
Connecting 3-Wire Connection: Direct Wire
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
Direct wire cable must have 5 ft (1.52 m) of extra length so
dryer can be moved if needed.
Strip 3½" (89 mm) of outer covering from end of cable. Strip
insulation back 1" (25 mm). If using 3-wire cable with ground
wire, cut bare wire even with outer covering. Shape ends of
wires into a hook shape.
Connecting Neutral Wire
1. Loosen or remove center terminal block screw (A).
2. Place hooked end (hook facing right) of neutral wire (white
or center wire) (D) cable under center terminal block screw
(A). Squeeze hooked end together. Tighten screw.
A
D
A
