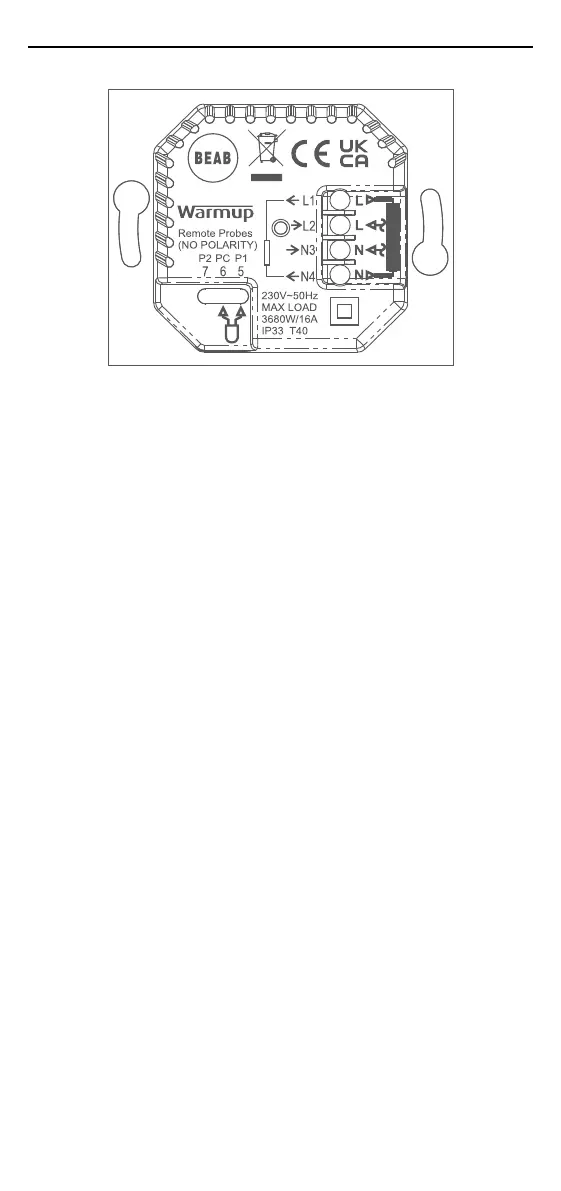

Step 2 - Wiring Connections
WARNING!
The 7iE must be installed by a qualied electrician in accordance with the
current edition of the BS7671 Wiring Regulations. Wire the 7iE using the
diagram above and heater type wiring information below.
NOTE: For loads above 10 A, the conductor wire gauge should be at least
2.5mm²
L1 & N4 Heater Live and Neutral Max. 16A (3680W)
L2 & N3 Supply Live and Neutral
5 & 6
*
Floor Sensor (No Polarity)
ELECTRIC UNDERFLOOR HEATING
L1
Switched Live to Wiring Centre
L2 & N3 Supply Live and Neutral
N4 Not Used
N4 Not Used
5 & 6
*
Floor Sensor (No Polarity)
5 & 6 Not Used
HYDRONIC UNDERFLOOR HEATING
L1 Switched Live to Zone Valve/Boiler
L2 & N3 Supply Live and Neutral
CENTRAL HEATING
For extra low voltage or volt-free systems a contactor must be used.
Connecting the 7iE directly to extra low voltage or volt-free boilers may cause
damage to the boiler circuit.
*
Floor sensor connection;
5 & 6 Scheduled oor temperature with air limit
6 & 7 Scheduled air temperature with oor limit
Refer to Appendix 1.0 for alternative thermostat use cases
NOTE: The function of Probe 1, Probe 2 from Control/Limit Sensor can be
swapped in Advanced Settings; Sensors & Application.
