18 Device Description EPSITRON®

787-1662 Electronic Circuit Breaker

Manual

Version 1.0.0

Pos: 29 /A ll e Ser ien (Al lg emei ne M od ule)/ Üb ers chrif te n für al le S eri en/G erä teb esc hrei bu ng/B edi enel eme nte - Üb ersc hrif t 2 @ 4 \mod_1239191655456_21.docx @ 30439 @ 2 @ 1

3.4 Operating Elements

Pos: 30 /S eri e 7 87 ( EPS ITR ON)/ Ger ät ebesc hrei b ung/ Bedi en ele men te/B edi enel eme nte 787- 1662 @ 17\mod_1386672526458_21.docx @ 140082 @ 33 @ 1

3.4.1 Buttons

A button is assigned to each output channel. Depending on the operating mode the

button can have two different functions:

• During operation, the channel can be activated and de-activated.

• If an error is present, the channel can be reset.

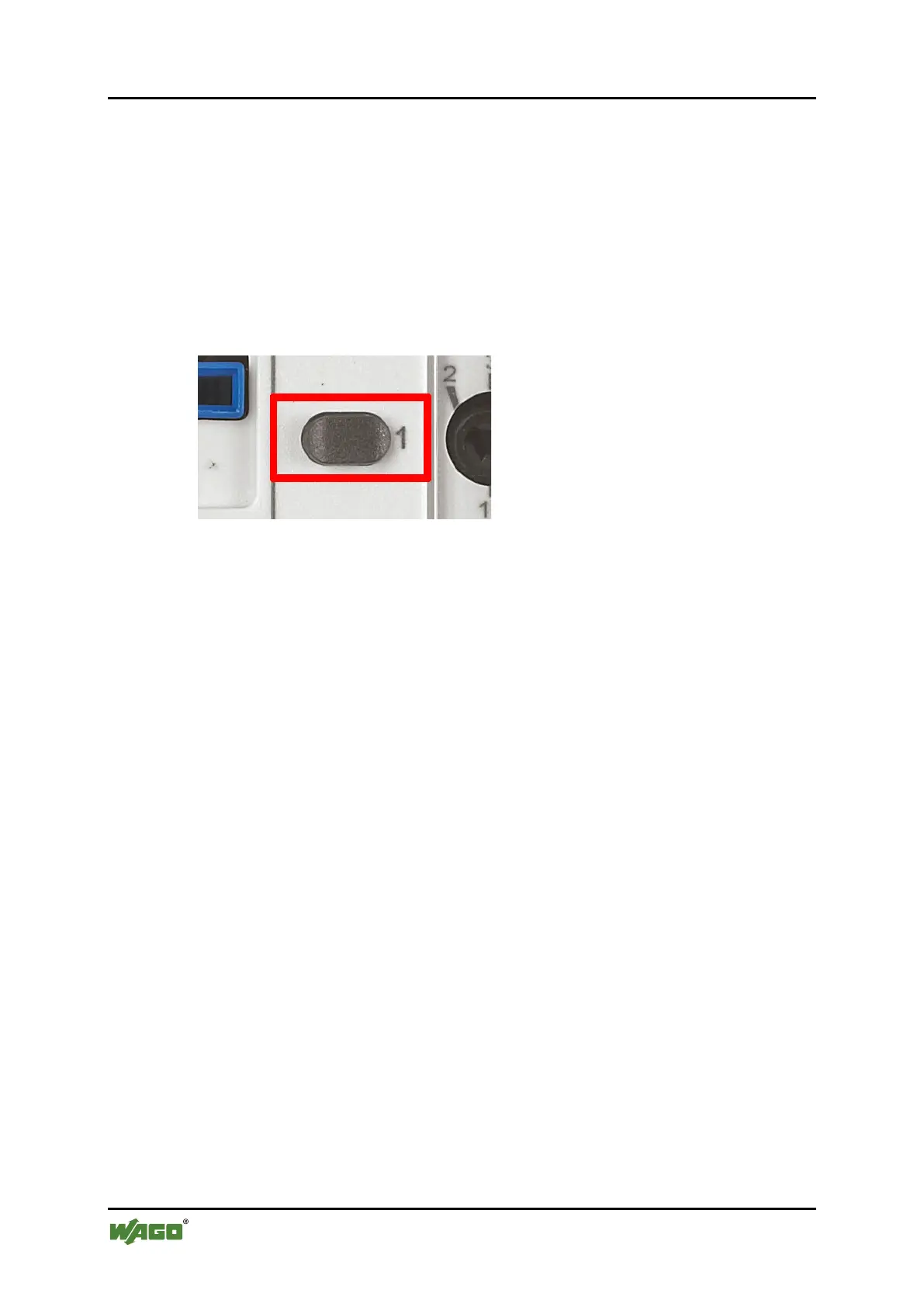

Figure 7: Buttons
