EPSITRON® Device Description 17

787-1662 Electronic Circuit Breaker

Manual

Version 1.0.0

Pos: 26 /A ll e Ser ien (Al lg emei ne M od ule)/ Üb ers chrif te n für al le S eri en/G erät ebes chr eibu ng/A nz eigeel em ente - Üb erschr ift 2 @ 4\mod_1240984390875_21.docx @ 31964 @ 2 @ 1

3.3 Display Elements

Pos: 27 /S eri e 7 87 ( EPS ITR ON)/ Ger ät ebesc hrei b ung/ Anz eig eele me nte/A nz eig eele men te 7 87- 1662 @ 17\mod_1385383348729_21.docx @ 138277 @ @ 1

A multi-colored LED, integrated in a button, is assigned to each output channel.

This LED indicates the current operating status of the output channel.

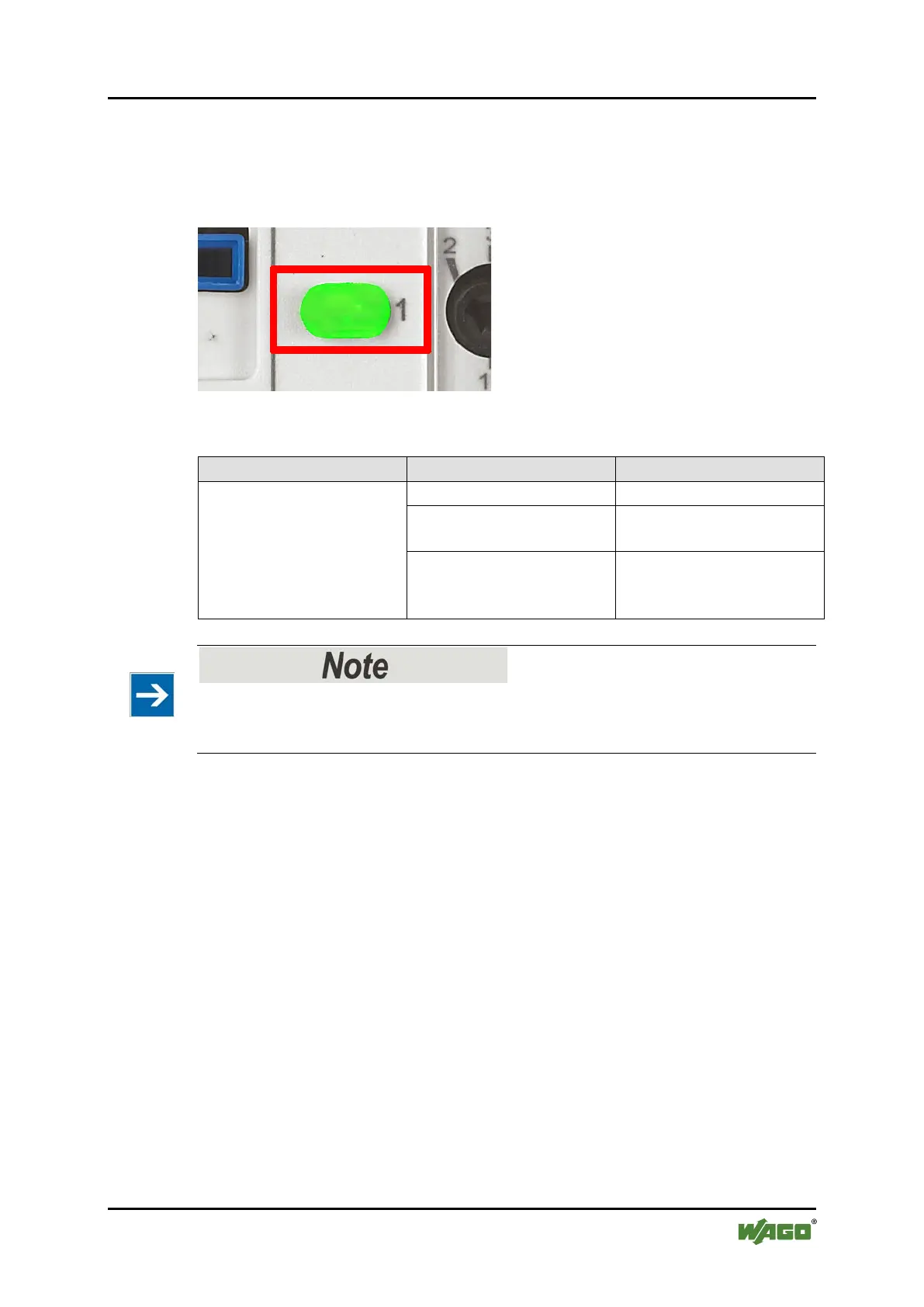

Figure 6: Indicators

Table 10: Legend for "Indicators" figure

LED

Button color

Explanation

1 … 2

Green

Output channel activated

Red

Output channel

deactivated

Red, flashing

Wait for temperature to

return to normal (cooling

period)

Further signaling possible!

Other statuses can also be indicated if an error occurs. For information about this,

refer to the "Operating Statuses, Signaling, Reactions" table given in this manual.
