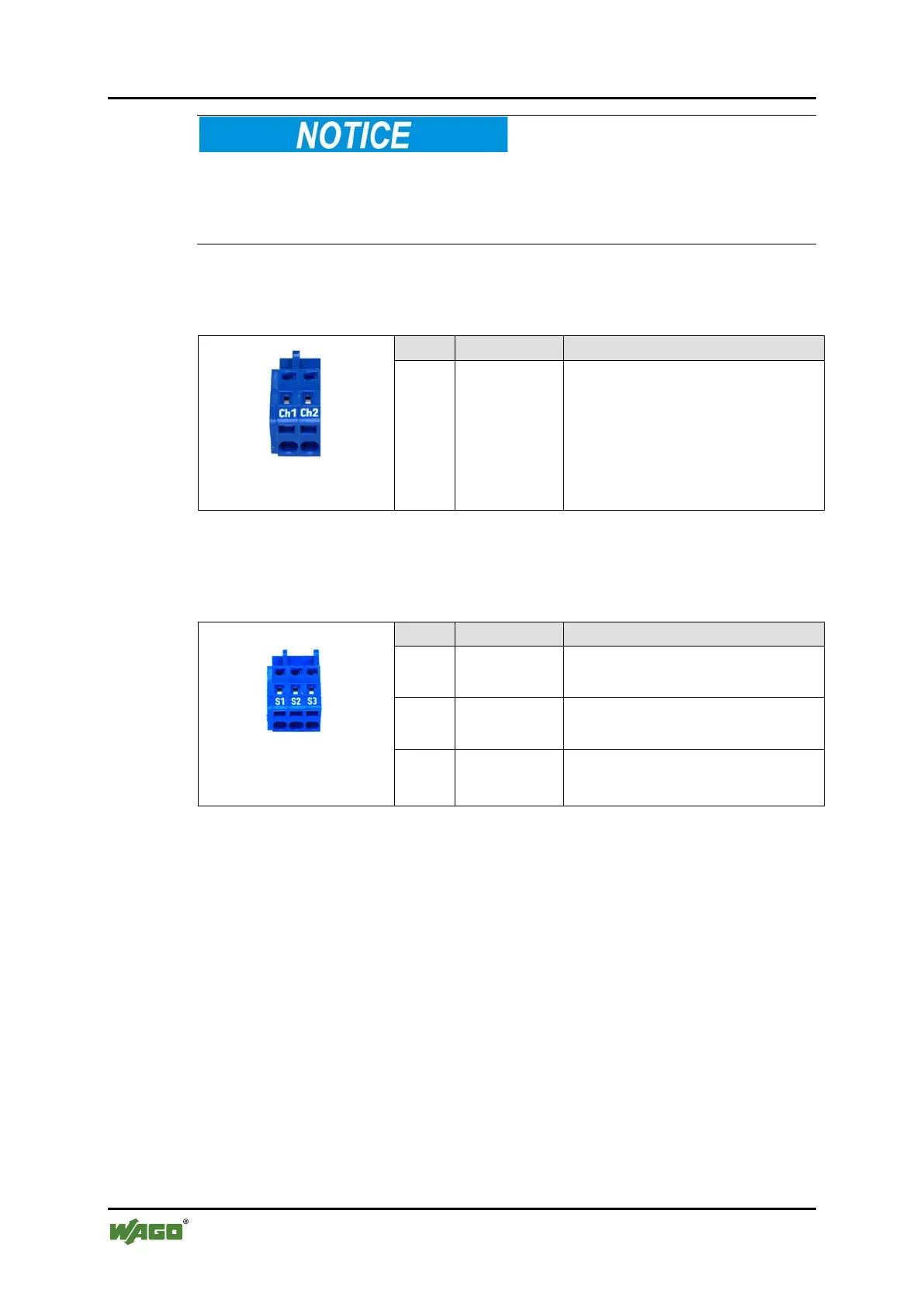

16 Device Description EPSITRON®

787-1662 Electronic Circuit Breaker

Manual

Version 1.0.0

Total current exceeds 40 A!

Distribute the current to input terminals "IN1" and "IN2" when the total current

should exceed 40°A, as otherwise the plug-in connectors will become overheated

and can be damaged or destroyed.

Pos: 24.7 /S erie 78 7 (E PSI TRON )/ Ger äteb esc hrei bung / Ansc hlüs se/ Ans chl üss e 78 7-1662 - Abges ic herte Ausgä nge @ 17\ mod_1385383128867_21.docx @ 138266 @ 3 @ 1

3.2.2 Fuse-Protected Outputs

Table 8: Connections – Fuse-protected outputs

Figure 4: Fuse-protected

outputs Ch1 … Ch2

No.

Designation

Function

1 ... 2

Ch1 … Ch2

Fuse-protected outputs

Ch1 … Ch2

Pos: 24.8 /S erie 78 7 (E PSI TRON )/ Ger äteb esc hrei bung / Ansc hlüs se/ Ans chl üss e 78 7-166x - Steu er- und Signalkontakte @ 13\mod_1345544033477_21.docx @ 101808 @ 3 @ 1

3.2.3 Control and Signaling Contacts

Table 9: Connections – Control and signaling contacts

Figure 5: Control and

signaling contacts

No.

Designation

Function

1

S1

Control Input S1

2

S2

Signal Output S2

3

S3

Signal Output S3
