EPSITRON® Device Description 19
787-1662 Electronic Circuit Breaker
Manual
Version 1.0.0
3.4.2 Rotary Switch
A rotary switch, which can be used to set the output currents for the individual
outputs, is assigned to each output channel. The following settings are possible:
Table 11: Rotary Switch Settings
Variant
Setting
787-1662
2 A
3 A
4 A
6 A
8 A
10 A
787-1662/0106-0000
1 A
2 A
3 A
4 A
5 A
6 A
787-1662/0006-1000
0.5 A
1 A
2 A
3 A
4 A
6 A

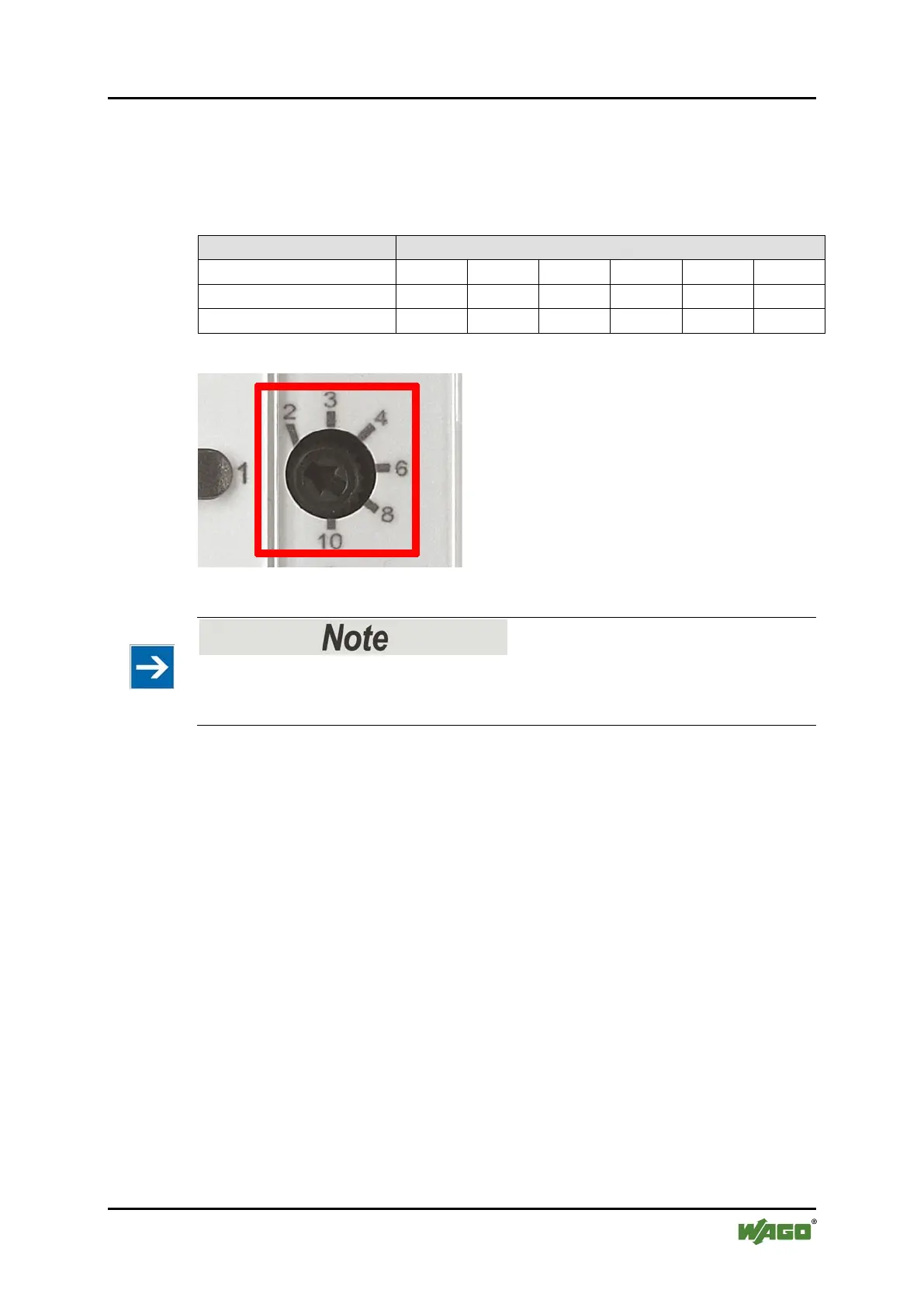

Figure 8: Rotary Switch
Observe trip curve!
Observe the trip curve given in the Section "Function Description" when setting
the individual output channels.
