Front Panel Description and Functions cont...
8
26. STOP button - This button is used to STOP disc PLAYBACK.
27. PBC button - The PBC (play back control) button toggles the PBC mode ON/OFF. When in PBC mode, you can use direct access to tracks/scenes
by using the NUMBER PAD on the REMOTE CONTROL. This feature is used primarily with VCD, MP3 and PHOTO-CD discs. NOT E : Not all discs
have P B C support coding. C heck to make sure a disc has P BC s upport before trying to use the feature. P ress ing the P BC button during the
playback of a track/scene will caus e the playback to stop and restart.
28. DIGITAL KEY CONTROL buttons - These buttons direct the DIGITAL KEY CONTROLLER to either raise, lower or reset the musical key of audio
from the built-in multi-format disc player.
# - Raises the musical key a half-step each time it is pressed.
- Resets the musical key to it's original key.
b - Lowers the musical key a half-step each time it is pressed.
29. HEADPHONES jack - This jack is used to connect HEADPHONES equipped with a ¼" plug.
30. HEADPHONES VOLUME control - This control is used to set the VOLUME for the HEADPHONES.
31. KEYBOARD VOLUME control - This controls is used to set the VOLUME level for a KEYBOARD connected to the KEYBOARD INPUT JACK.
32. KEYBOARD input - This input is used to connect a KEYBOARD device via a ¼" output cable.
33. GUITAR VOLUME control - This controls is used to set the VOLUME level for GUITAR connected to the GUITAR INPUT JACK.
34. GUITAR input - This input is used to connect a GUITAR via a ¼" guitar cable.
35. MIC INPUTS 1, 2 - These inputs are for connecting MICROPHONES with a ¼" plug. NOT E : B oth the X LR (rear panel) and ¼" inputs cannot be used
simultaneously for any given mic channel.
36. MIC 1 / 2 VOLUME controls - These controls adjust the VOLUME levels of MIC channels 1 and 2 individually. Turn controls clockwise to INCREASE
and counter-clockwise to DECREASE.

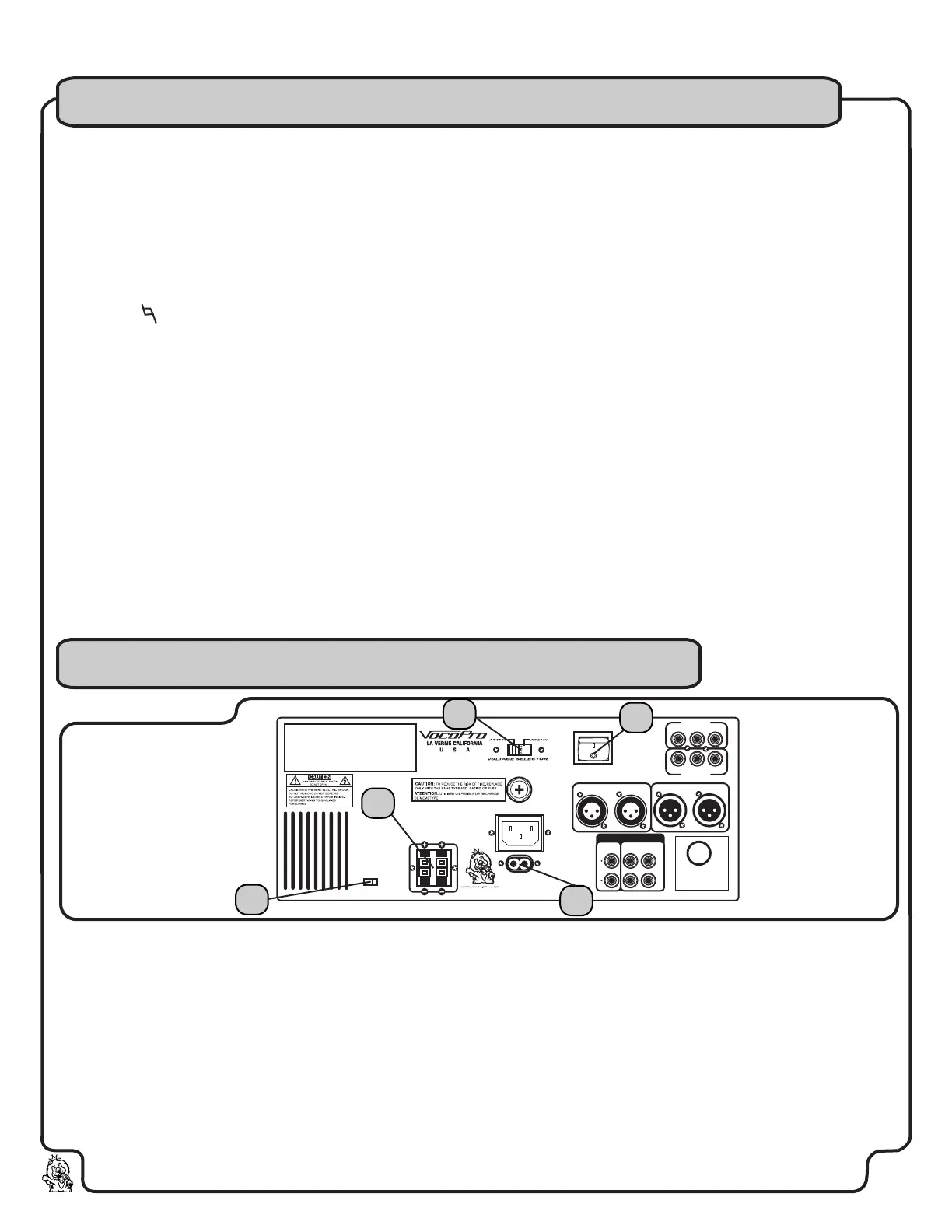

Rear Panel Description and Functions
1. POWER switch - This switch turns the GIG MAN's MAIN POWER ON/OFF.
2. VOLTAGE selector - This selector toggles between 110-120V and 220-240V power settings. Please ensure this toggle is set to the
correct position, matching the receiving AC outlets power supply before plugging it in and operating it. Doing so may cause
severe damage to the unit and void your product warranty.
3. INTERNAL/EXTERNAL SPEAKER selector - This selector toggles the GIG MAN's master output to be played through either the
BUILT-IN speakers or EXTERNAL speakers connected to the EXTERNAL SPEAKER CONNECTORS. NOTE : Y ou cannot playback
from both INTE R NAL and E XTE R NAL s peakers simultaneously.
4. EXTERNAL SPEAKER connectors - These connectors are for connecting EXTERNAL SPEAKERS to be used for playback instead of
the BUILT-IN SPEAKERS. NOT E : Only connect one 8-ohms rated s peaker to each s peaker connector.
5. AC~IN terminal - Connect AC MAIN POWER CORD from the wall outlet to this terminal.
Rear Panel
U
L
C
US
LISTED
www.vocopro.com
VCD+CDG COMBO Model: GIGMAN
VOCOPRO
www.vocopro.com
Rated:AC~115/230V,50/60HZ, 70W
Class1 Laser Product
This product complies with DHHS Rules21CFR Chapter1,
Subchapter J
Made in China
Manufactured Date:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
Conditions:(1)This device may not cause harmful
Interference,and (2)This device must accept any
interference that may cause undesired operation
VIDEO
OUT
AUDIO
OUT
L
R
L
R
SPEAKER 8
½
AV1 INPUT
AV2 INPUT
VIDEO
L R
VIDEO
L R
T2A
BALANCED AUDIO OUTPUT BALANCED MIC OUTPUT
(AUDIO PRODUCT)
XXXX
MIC 1 MIC 2
AC IN
ENTR EAC
AC115V/230V
50/60GHZ
INT EXT
Speacker Selector
Power
Commutator
1
4
2
5
3
