Rear Panel Description and Functions cont...
9
6. FUSE terminal - This terminal houses the GIG MAN's main system FUSE. NOTE: If fuse replacement is necessary, only replace with
the same type and rating of fuse.
7. AC POWER outlet - This outlet provides AC POWER to an external device. NOTE: Do not connect any device with a power
consumption level higher than 200W.
8. VIDEO OUT 1-2 jacks (RCA) - These jacks are for connecting the GIG MAN's VIDEO OUTPUT to TV or DISPLAY devices. Connect
RCA-type patch cables from these jacks to the VIDEO INPUT jacks on the connecting TV or display devices.
9. AUDIO OUT 1-2 jacks (RCA) - These jacks are for connecting the GIG MAN's AUDIO OUTPUT to amplifier, recording or mixing
devices. Connect paired RCA-type patch cables from these jacks to appropriate INPUT jacks on external audio devices.
10. AV 1-2 INPUT jacks - These jacks are for connecting AUDIO/VIDEO OUTPUT from external AV SOURCES. Connect RCA-style AV
cables (R, W, Y) from these jacks to the AV OUTPUT jacks on your external AV devices.
11. BALANCED MIC 1-2 INPUT (XLR) - These jacks are for connecting microphones via BALANCED XLR-type microphone cables.
NOTE: Both the XLR and ¼" MIC jacks cannot be used simultaneously for any given mic channel.
12. BALANCED AUDIO OUTPUT jacks - These XLR jacks are for connecting MASTER output to an external device with balanced
cables.
13. L-R-FRONT SPEAKER jacks - Connect EXTERNAL L and R SPEAKER's to this jack.

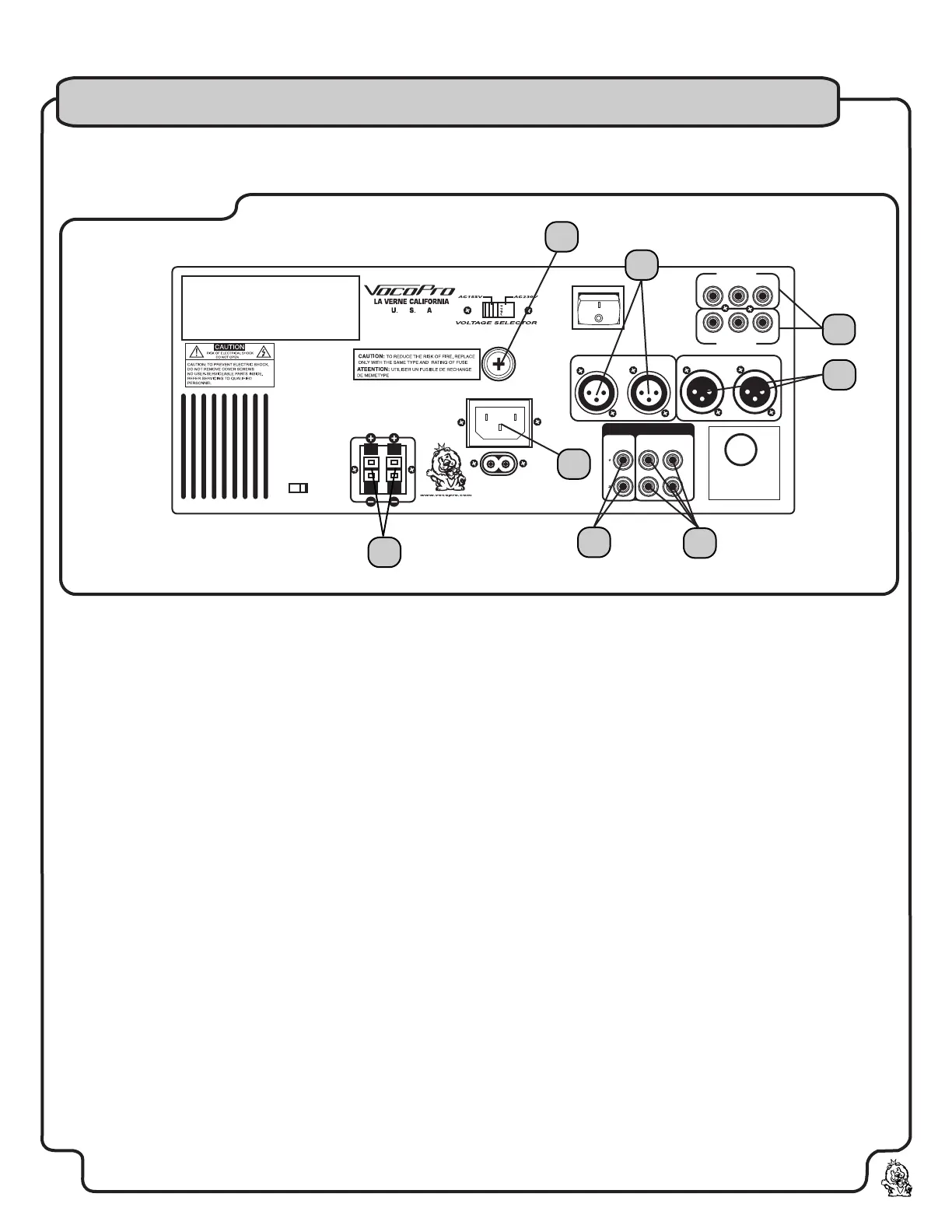

Rear Panel
U
L
C
US
LISTED
www.vocopro.com
VCD+CDG COMBO Model: GIGMAN
VOCOPRO
www.vocopro.com
Rated:AC~115/230V,50/60HZ, 70W
Class1 Laser Product
This product complies with DHHS Rules21CFR Chapter1,
Subchapter J
Made in China
Manufactured Date:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
Conditions:(1)This device may not cause harmful
Interference,and (2)This device must accept any
interference that may cause undesired operation
VIDEO
OUT
AUDIO
OUT
L
R
L
R
SPEAKER 8
½
AV1 INPUT
AV2 INPUT
VIDEO
L R
VIDEO
L R
T2A
BALANCED AUDIO OUTPUT BALANCED MIC OUTPUT
(AUDIO PRODUCT)
XXXX
MIC 1 MIC 2
AC IN
ENTR EAC
AC115V/230V
50/60GHZ
INT EXT
Speacker Selector
Power
Commutator
6
7
8
9
10
11
12
13
