Vivax HPM-28CH84AERIs R32-1H3 Handleiding (112 Pagina's)

Handleiding

VIVAX ENG

75

Item

Description

Item

Description

A

Outdoor unit

J

SV2: 3-way valve (field supply)

B

Solar energy kit (field supply)

K

SV1: 3-way valve for domestic hot water tank (field supply)

C

User interface

L

Domestic hot water tank

D

Room thermostat (field supply)

M

Booster heater

E

Boiler (field supply)

N

Contactor

F

P_s: Solar pump (field supply)

O

Power supply

G

P_c: Mixing pump (field supply)

P

Backup heater

H

P_o: Outside circulation pump (field supply)

Q

Zone2 SV3(3-way valve)

I

P_d: DHW pump (field supply)

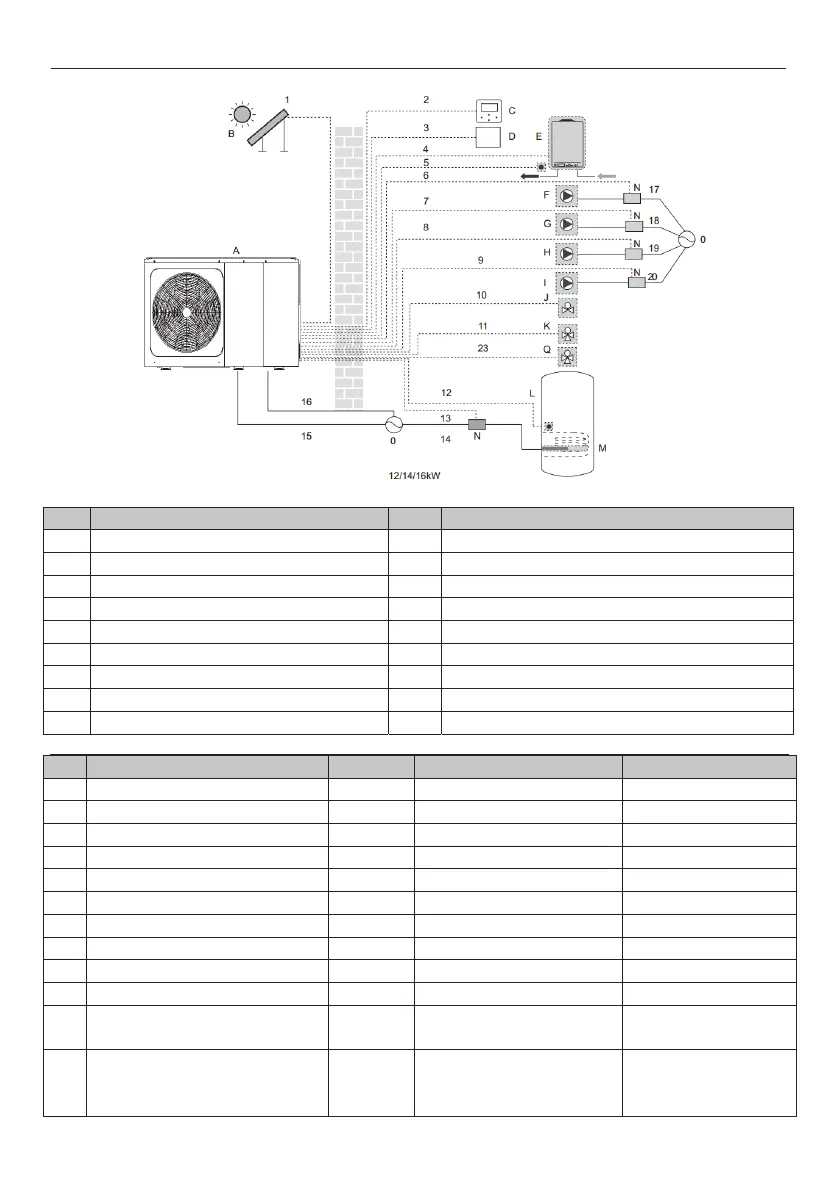

Table 3-4.1: Wiring requirements

Item

Description

AC/DC

Required number of conductors

Maximum running current

1

Solar energy kit signal cable

AC

2

200mA

2

User interface cable

AC

5

200mA

3

Room thermostat cable

AC

2 or 3

200mA(a)

4

Boiler control cable

/

2

200mA

5

Thermistor cable for T1B

DC

2

(b)

9

DHW pump control cable

AC

2

200mA(a)

10

3-way valve control cable

AC

2

200mA(a)

11

3-way valve control cable

AC

2 or 3

200mAC

12

Thermistor cable

DC

2

(b)

13

Booster heater control cable

AC

2

200mA(a)

15

Power supply cable for unit AC

2+GND(1-Phase)

3+GND(3-Phase)

31A (1-Phase)

15A (3-Phase)

16

Power supply cable for backup heater

AC

2+GND(1-Phase)

3+GND(3-Phase)

14A (1-Phase)

6A (3-Phase)
