frequency electrical noise) to avoid unnecessary opening of the ground fault circuit interrupter

This unit is equipped with an inverter. Installing a phase advancing capacitor not only reduce the power factor

improvement effect, but also may cause abnormal heating of the capacitor due to high frequency waves. Never

install a phase advancing capacitor as it could lead to an accident.

4.3 Guidance

Most field wiring on the unit is to be made on the terminal block inside the switch box. To gain access to the terminal

block, remove the switch box service panel.

Fix all cables using cable ties.

A dedicated power circuit is required for the backup electric heater.

Installation equipped with a domestic hot water tank (field supplied) requires a dedicated power circuit for the

immersion heater.

Secure the wiring in the order shown below:

Lay out the electrical wiring so that the front cover does not rise up when doing wiring work and attach the front

cover securely.

Follow the electric wiring diagrams for electrical wiring works. Refer to Figure 2-4.1, Figure 2-4.2 and Figure 2-4.3 in

part 2, 4 “Wiring Diagram”.

Install the wires and fix the cover firmly so that the cover may be fit in properly.

4.4 Wiring Overview

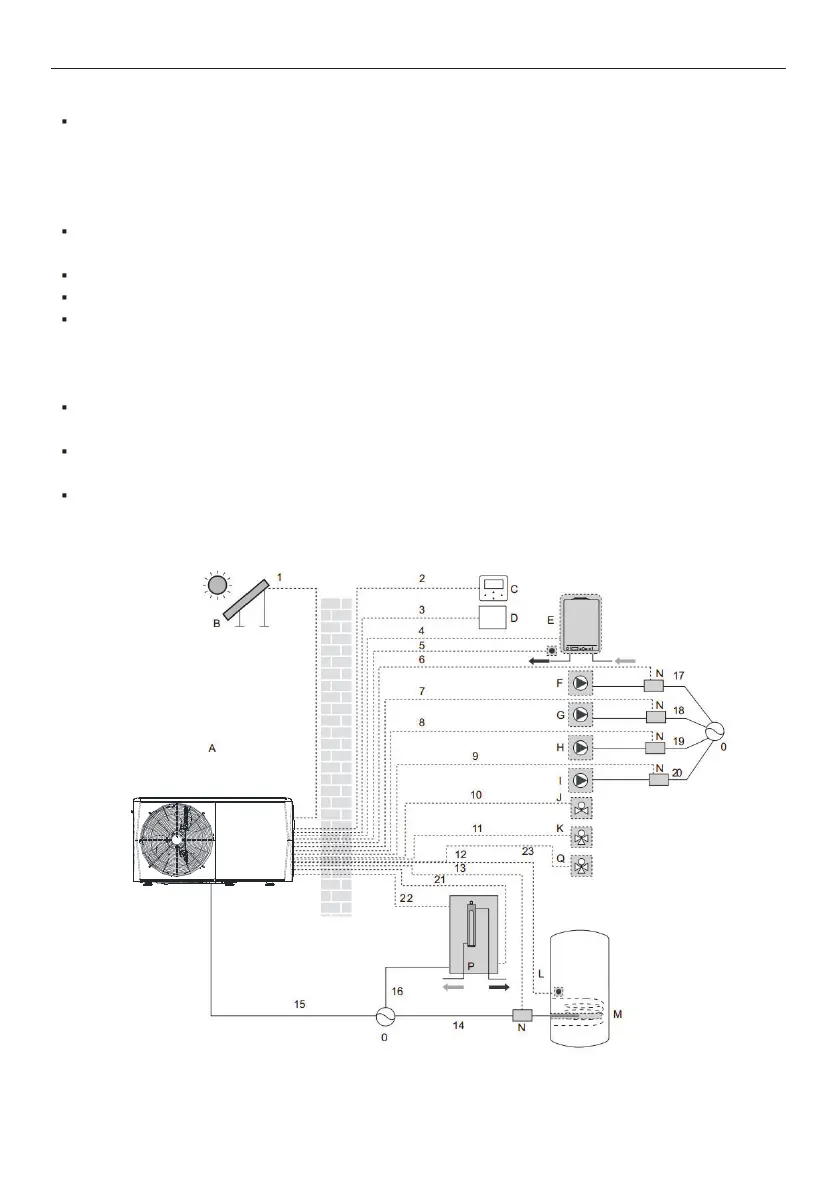

Figure 3-4.3: Wiring overview for 4/6kW models

Figure 3-4.4: Wiring overview for 8/10/12/14/16kW models
