4 Electrical Wiring

4.1 General

4.2 Precautions

Fix cables so that cables do not make contact with the pipes (especially on the high pressure side).

Secure the electrical wiring with cable ties as shown in Figure 3-1.14 and Figure 3-1.15. So that it does not come in

contact with the piping, particularly on the high-pressure side.

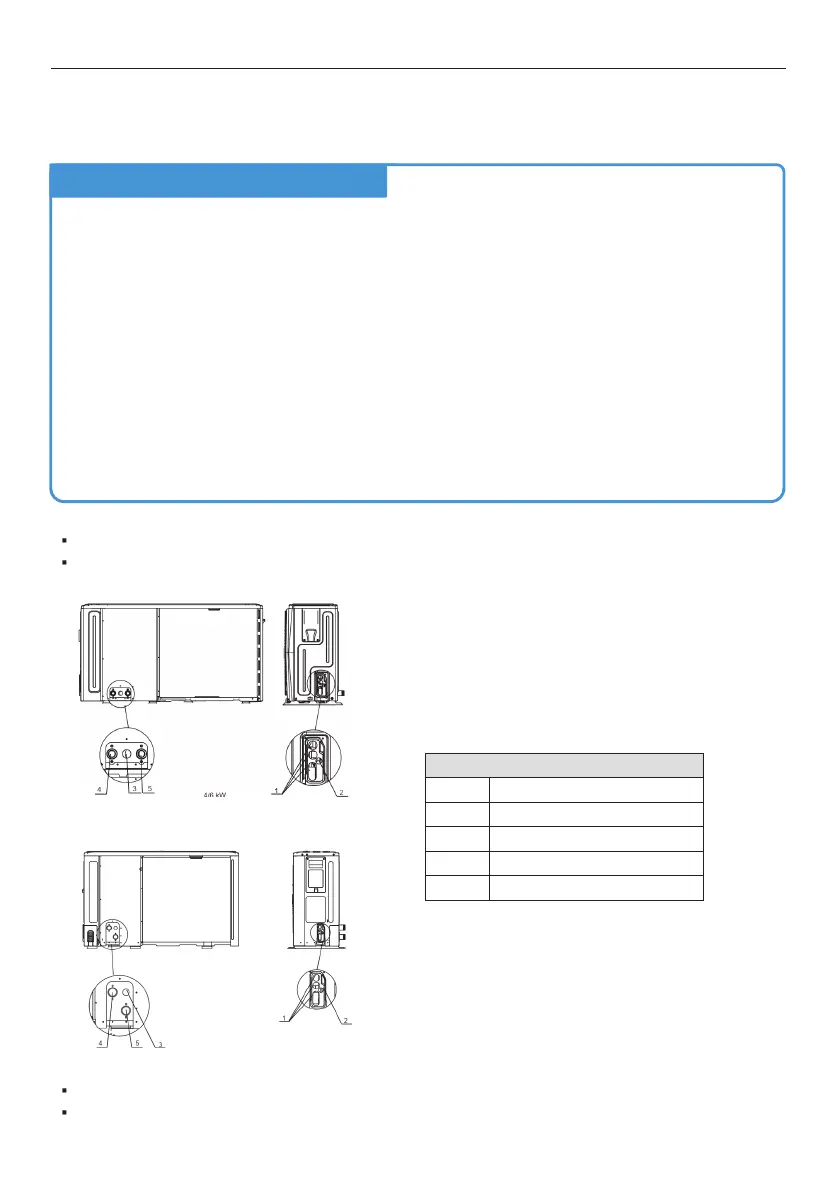

Figure 3-4.1: Wiring hole for 4/6kW models

Figure 3-4.2: Wiring hole for 8~16kW models

Make sure no external pressure is applied to the terminal connectors.

When installing the ground fault circuit interrupter make sure that it is compatible with the inverter (resistant to high

Legend

1

High voltage wire hole

2

Low voltage wire

hole

3

Drainage pipe hole

4

Water outlet

5

Water inlet

Caution

 All installation and wiring must be carried out by competent and

suitably qualified, certified and accredited

professionals and in accordance with all applicable legislation.

 Electrical systems should be grounded in accordance with all applicable legislation.

 Overcurrent circuit breakers and residual-current circuit breakers (ground fault circuit interrupter

s) should be used in

accordance with all applicable legislation.

 Wiring patterns shown in this data book are general connection guides only and are not intended for, or

to include all

details for, any specific installation.

 The water piping, power wiring and communication wiring are typically run in parallel. However the

communication

wiring should not be bound together with power wir

ing. To prevent signal interference, the power wiring and

commu

nication wiring should not be run in the same conduit. If the power supply is less than 10A, a separation of at

least 300mm between power wiring and communication wiring conduits should be

maintained; if the power supply is

in the range 10A to 50A then a separation of at least 500mm should be maintained.

Notes for installers

#
