ENG VIVAX

76

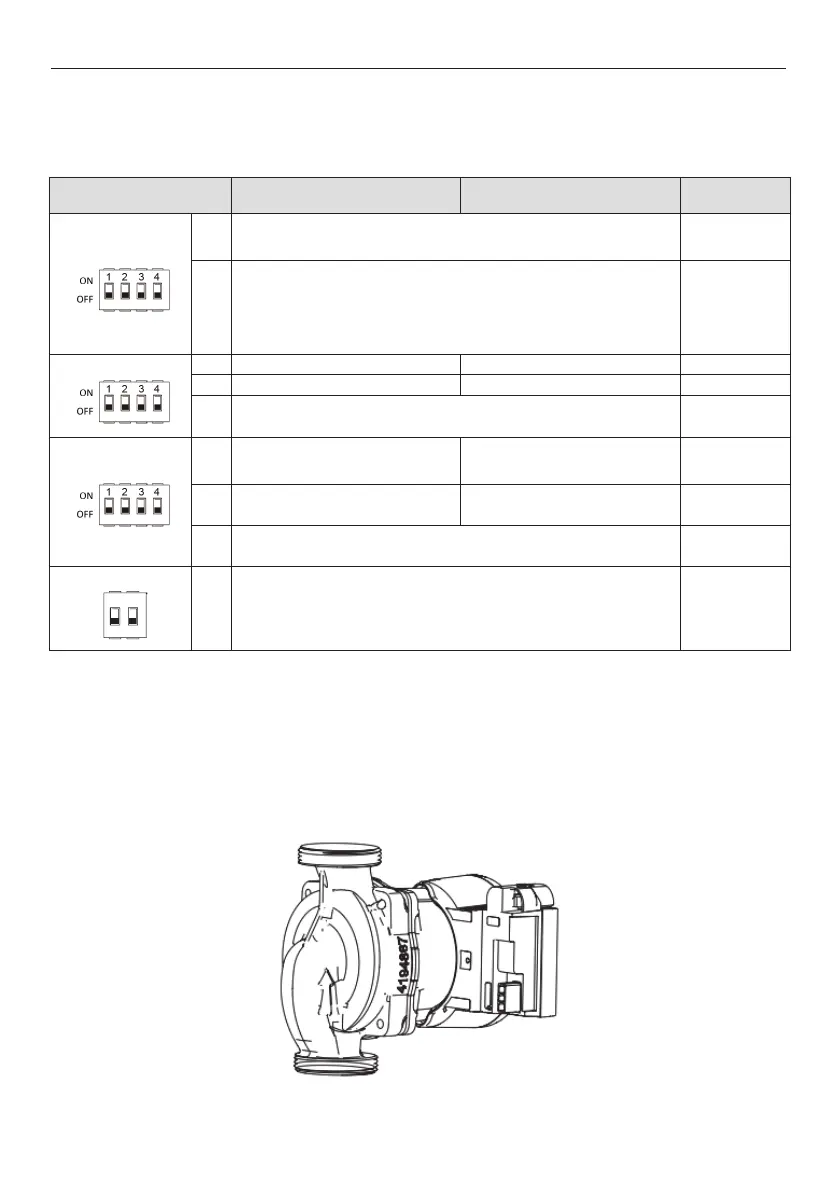

5 DIP Switch Settings

DIP switch is located on the hydraulic module main control board and allows configuration of additional heating source

thermistor installation, the second inner backup heater installation, etc.

Switch ON=1

OFF=0

Factory

defaluts

S1

1

/2

00=IBH(One-step control)

01=IBH(Two-step control)

11=IBH(Three-step control)

Set according to

unit configuration

by factory

3/4

00=Without IBH and AHS

10=With IBH

01=With AHS for heating mode

11=With AHS for heating mode and DHW

Set according to

unit configuration

by factory or

adjust onsite

according to

applicaiton

S2

1

Start pumpo after 24 hours will be invalid

Start pumpo after 24 hours will be valid

OFF

2

without TBH

with TBH

OFF

3/4

Pump configuration ON/ON

S4

1

Master unit: clear address of all slave

units

Slave unit: clear its own address

Keep the current address OFF

2

IBH for DHW=valid IBH for DHW=invalid OFF

3/4

Reserved OFF/OFF

S9

1/2

00=Slave unit

11=Msater unit

Set according to

applicaiton

6 Internal Circulation Pump

The pump is controlled via a digital low-voltage pulse-width modulation signal which means that the speed of rotation

depends on the input signal. The speed changes as a function of the input profile. The relationship between external static

pressure and water flow rate is described in Part 2, 7 “Hydronic Performance”.

Figure 3-6.1: Internal circulation pump

12

ONOFF
