Parameter “Cyclic monitoring time in s[0..65535, 0=no monitoring] ”

This parameter sets the monitoring period of the safety operation function, and the monitoring period should be at least twice as large as the cyclic trans-

mission telegram period of the sensor. In order to prevent the missing sensing signal when the bus is busy, the blinds/curtains are moved to the Safety

operation position. If the value of this parameter is set to “0”, it means that the monitoring of the Safety operation is not activated, and it can be directly

controlled by the object of the Safety operation.

During the set monitoring time, the object “Safety operation 1/2” does not receive the telegram to cancel the safety operation, it will trigger the Safety

operation function of the blinds/curtains, and the blinds/curtains will perform the action after the safety operation is triggered.

Parameter “Position with canceling of the safety operation”

This parameter sets the action that the blinds perform after the Safety operation is canceled. Options:

Unchange

Down

Stop

This action will only be performed if a Safety operation is performed, a cancel command is executed, and all security operations on this channel are

canceled, otherwise it is not executed.

The safety function of the blinds/curtains has a higher priority than other functions. If the Safety operation function of a certain output is activated, the

other operations of this output will be prohibited, and the safety 2 priority is higher than safety 1.

4.5.2 Parameter “Curtain X: Shutter”

The parameter window “Curtain X:Shutter” mode of operation of the shutter actuator is similar to the parameters and communication objects of the “Venetian

Blind” mode of operation, and the functions are similar. The difference is that there is no function to adjust the louver angle in the “Shutter” mode. The “Shutter”

mode only involves the movement of the curtains and does not have louvers.

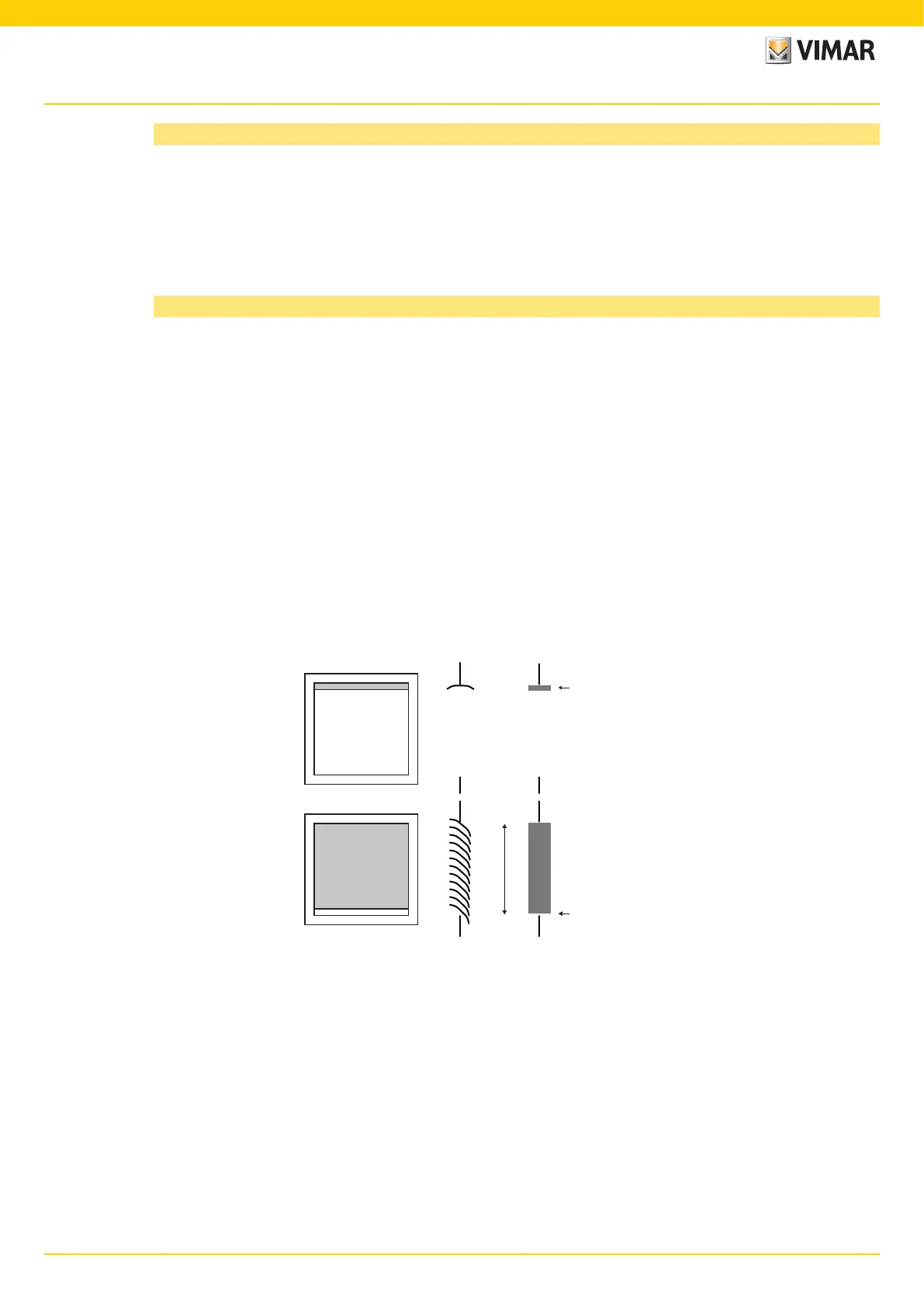

The difference between “Shutter” and “Venetian Blind” is as follows:

0 % = FINAL UPPER POSITION = 0 mm

100 % = FINAL LOWER POSITION = max mm

Venetian Blind

max. sun position

OPEN

no sun position

Shutter

max Range

The “Shutter” working mode is not introduced here. The function can refer to the “Venetian Blind” working mode (except for the louver adjustment function).

Parameter setting description in the ETS
