4.6 Shutter (DC) outputs

The curtain (DC) output has a maximum of 6 output channels, since the parameters and communication objects assigned to each output are the same as those of the

curtain (AC) output, except that the parameters are not selected by the “Motor type” drive type. The parameter interface is shown in Figure 4.19.

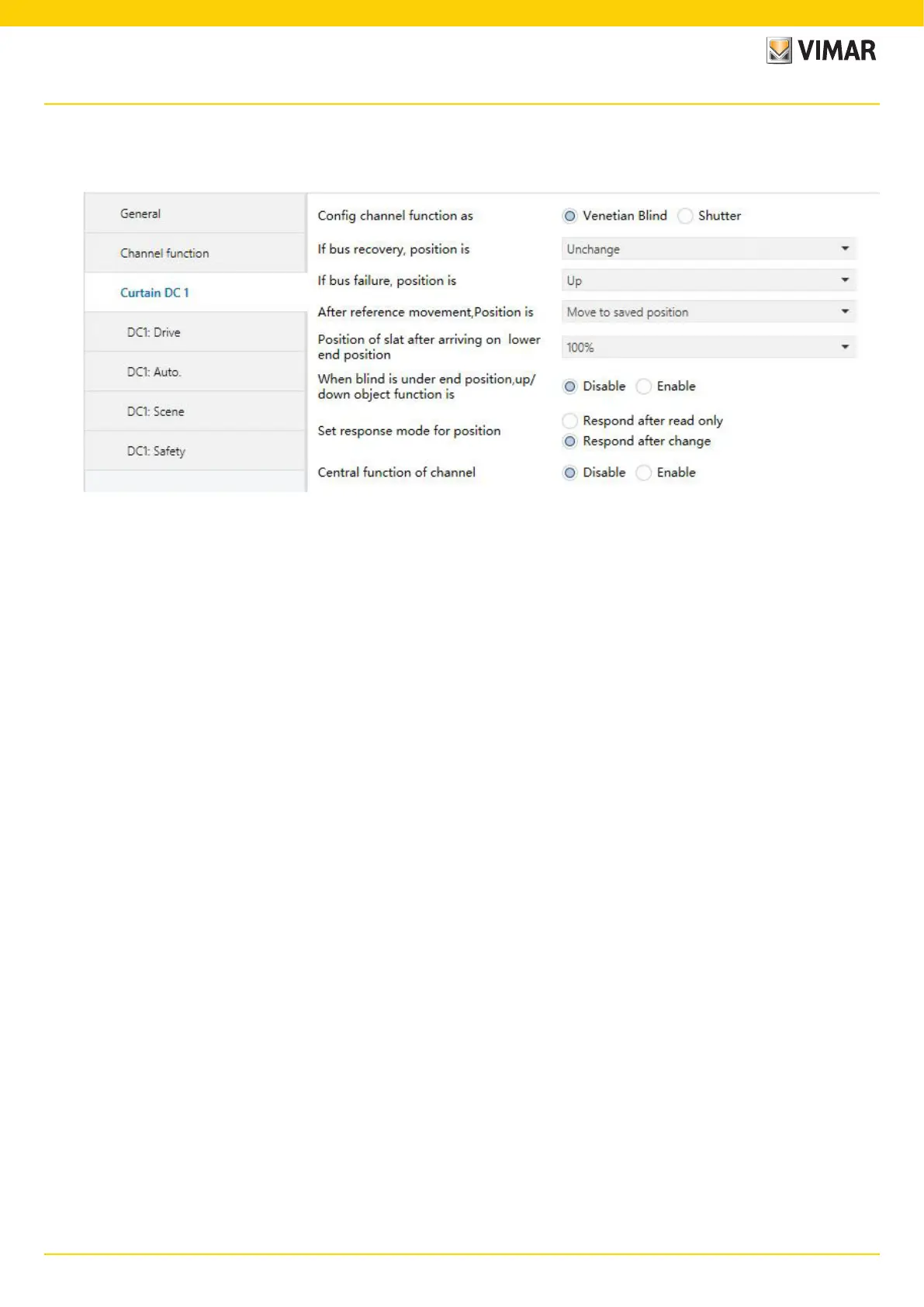

Fig. 4.19 Parameter window “Curtain DC X”

The parameter function of the curtain (DC) output is no longer introduced here. The parameter function can be referred to the curtain (AC) output.

The priority for various operations of curtain control:

Initialization (After the parameter download is completed) → Manual operation (Long press the manual button to switch to manual operation, and the button

of the channel has operation)→safety 2→safety 1→General or automatic operation

Apply to the following points:

1. Any general operation command with movement can exit automatic operation.

2. During manual operation, trigger value or reset value of automatic operation and safety operation will be recorded, it will perform action accord to the

priority when exit manual operation, and return to general operation or automatic operation after all priority levels exit.

3. When the manual operation exits, if no priority operation, the output status will not change until receive control command when return to general opera-

tion or automatic operation.

4. In the case of manual and safety operation are activated, automatic operation cannot be activated automatically. The automatic activation duration will

not start until manual and safety operation are exited. (Under the manual or safety operation, time counting will be interrupted, it will continue after exiting

manual or safety operation.)

Parameter setting description in the ETS
