Parameter “Enable auto. control after [10…6000min]”

This parameter defines the duration of the automatic activation of the automatic operation, that is, when the automatic operation is exited by a normal

operation or an object, the automatic operation is activated again after the preset time of this parameter has elapsed.

If the automatic operation is interrupted by the object “Enable auto. control” or normal operation during this time, the duration of the automatic activation

is re-timed.

Note: The manual operation has the highest priority, and safety operation has the second highest priority. In the case of manual and safety

operation are activated, automatic operation cannot be activated automatically. The automatic activation duration will not start until manual

and safety operation are canceled.

Parameter “Sun protection”

• Parameter “Position if sun= 1 (Sun is shining) ”

In the case where the sun is set here, the position of the louver, that is, the position at which the louver is moved when the object “Sun operation”

receives the telegram “1”, activates the sun protection. Options:

No reaction

Down

Stop

Receive 1 byte value

If the option is “no reaction”, the object “Sun operation” will maintain the current running state when it receives the message “1”. If it is not running yet, it

will not run. If there is currently running, it will continue to run.

If the option is “Receive 1 byte value” and the object “Sun operation” receives the telegram “1”, the position of the blind is determined by the object “Sun:

blind/shutter position 0…100%”and “Sun: slat adj. 0…100%” The received value determines that after the bus reset or programming, the values of these

two objects are undefined, the default value is “130” (51%), only when they receive the value, can be determined The location, and any operational status,

the values they receive are saved, including in the higher priority protection operation state.

• Parameter “Delay time on sun= 1 [0…65535s]”

This parameter is used to set the delay time, that is, when the object “Sun operation” receives the message “1”, the time when the shutter actuator

delays the execution of the action is mainly to prevent the shutter actuator from frequently moving due to the fluctuation of the illumination. Make the

device easy to damage and affect the life of the blind motor. Options:

0...65535 s

• Parameter “Position if sun= 0 (Sun not shining) ”

This parameter is similar to the previous one. The difference is that the location of the blinds when the object “Sun operation” receives the message “0”

and the sun protection are canceled.

• Parameter “Delay time on sun= 0 [0…65535s]”

This parameter is used to set the delay time, that is, when the object “Sun operation” receives the message “0”, the time when the shutter actuator delays

the execution of the action is mainly to prevent the shutter actuator from frequently moving due to the fluctuation of the illumination. Make the device easy

to damage and affect the life of the blind motor. Options:

0...65535 s

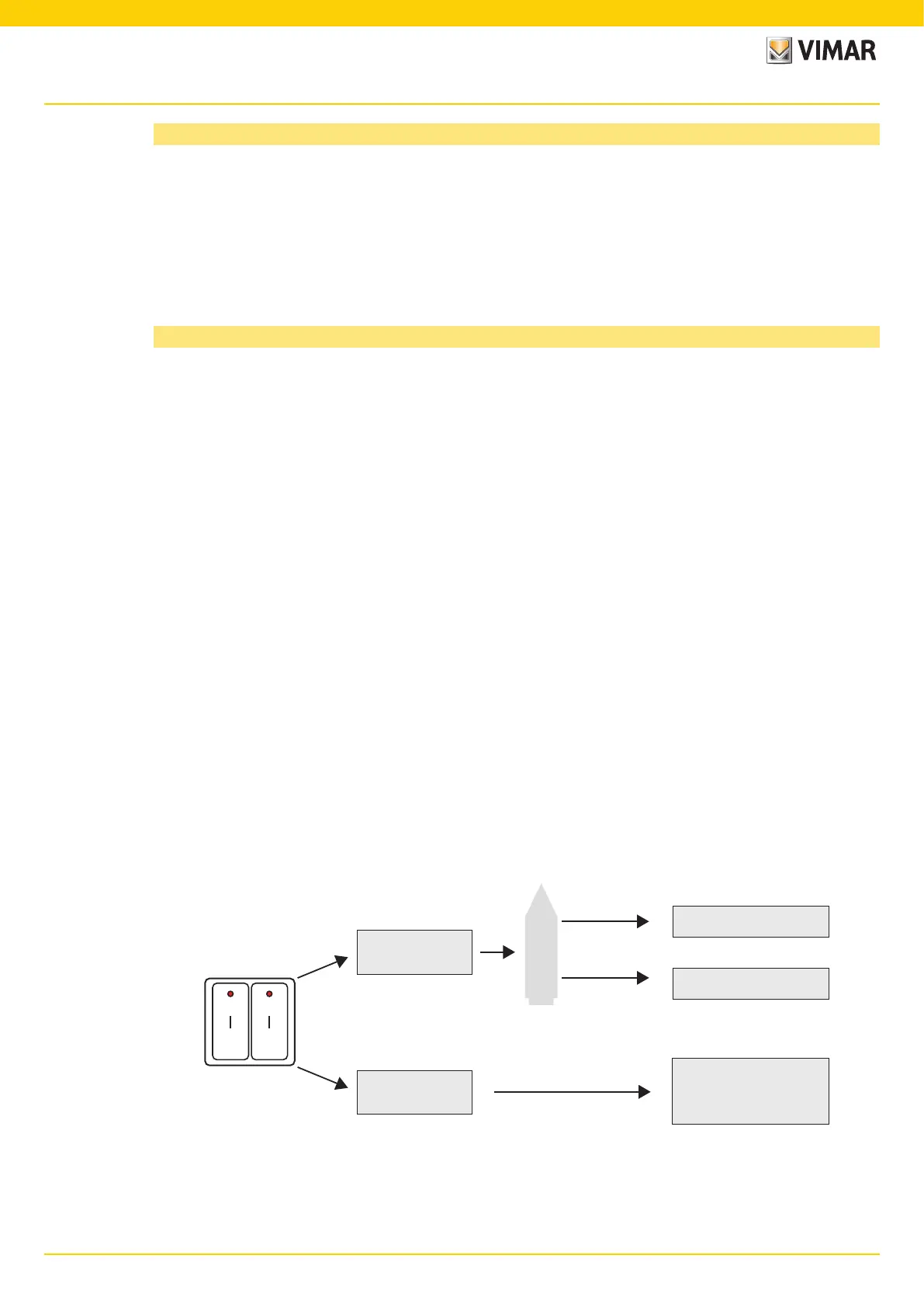

Here’s a simple automatic sun protection system:

Automatic control

activated

Automatic control

deactivated

Direct positioning via

UP/DOWN or

movement into position

Position for sun = “1”

“1” = sun

Brightness sensor

“1”

“0”

Position for sun = “0”

“0” = no sun

The illuminance sensor senses the intensity of the external light, the button can be switched on, or other control switches on the bus can be used.

Through the second switch of the button, the user can specify whether to enable the automatic sun protection function, or by manually controlling the

blinds, if the automatic sun protection is activated by the switch, the blinds will automatically move until the automatic sun protection is disabled through

the same switch, or the user sends a direct movement The command (up/down, or move to a location), the auto function is therefore disabled.

The shutter actuator receives information from the illuminance sensor to indicate if there is direct illumination outside the window. Once the adjustable

delay has elapsed, the actuator will adjust the blinds according to the set position.

Parameter setting description in the ETS
