4.4 Switch outputs - Heating actuator(without controller)

When option “Heating actuator (without controller)” of parameter ” work mode of the channel is” is selected, parameter setting interface as shown in Fig. 4.12. Usually

the device is used to control heating valve. We can realize constant room temperature via a temperature controller or a temperature sensor to command the operation

of the device.

Each output has two different kinds of controlling command to select–1bit and 1 byte. When select 1bit, the controlling can be react through the telegram that

communication object “On-off control value” has received; when 1 byte is selected, the controlling can be react through the telegram that communication “Control

value(Continuous)” has received.

Control command “0%/OFF” means turn off the valve,”100%/ON” means turn on the valve.

The mid value of 0-100% means the valve will be open for x% time in a cyclical time, and be off for the rest of the time.

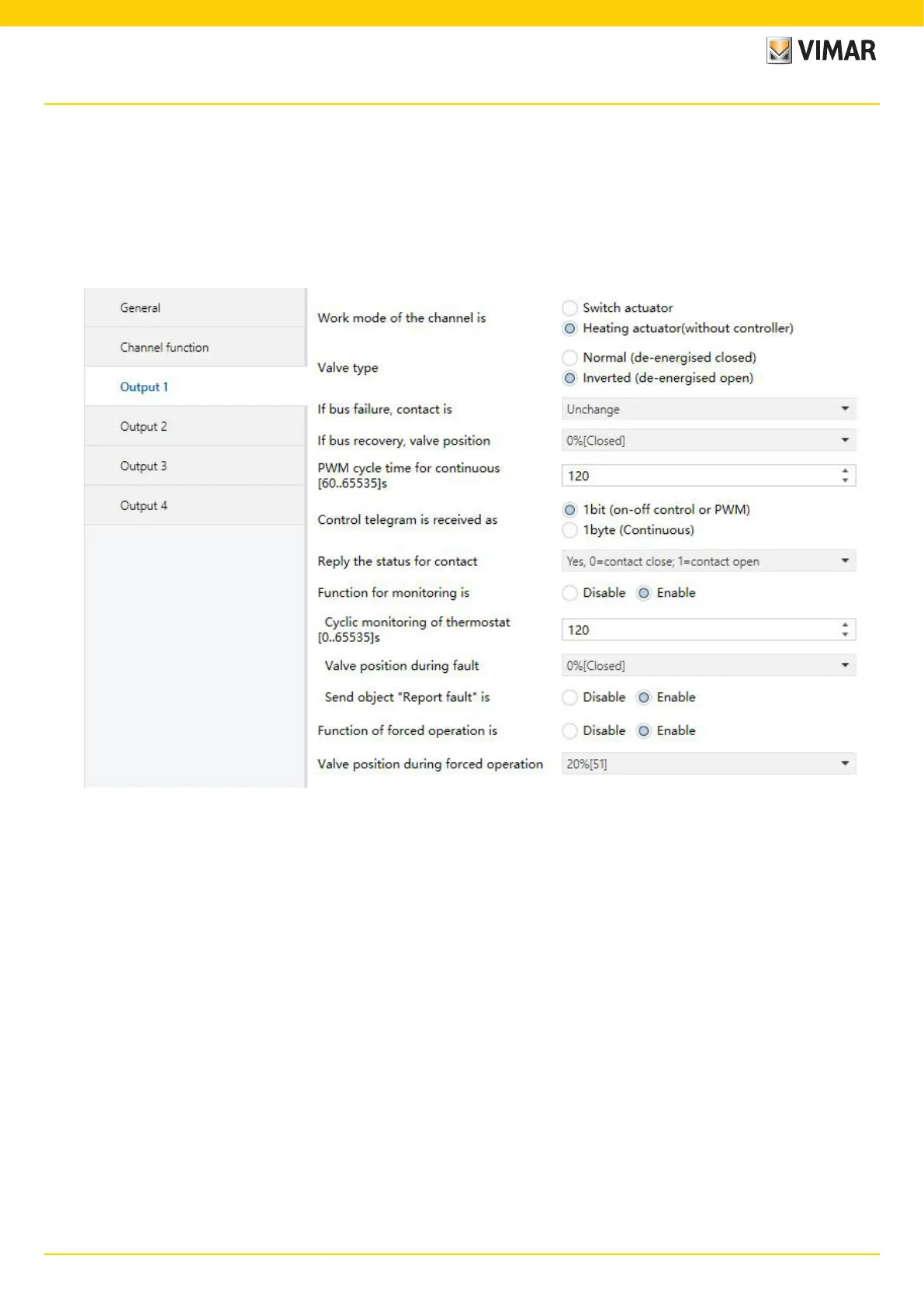

Fig. 4.12 Parameter window “Output X: Heating actuator(without controller)_1bit (on-off control or PWM)”

Parameter setting description in the ETS
