4.3 Switch outputs - Switch actuator

The switch outputs have a maximum of 16-fold output channels. Since the parameter and communication object assigned to each fold output are the same, a one-fold

output is taken as an example.

4.3.1 Parameter window “Switch actuator: Output X”

The parameter setting interface “Switch actuator: Output X” is shown in Figure 4.3. The setting of this interface acts on the entire channel of the relay. In addition

to setting the commonly used switching functions, it can also set the report of system power-on and switch status.

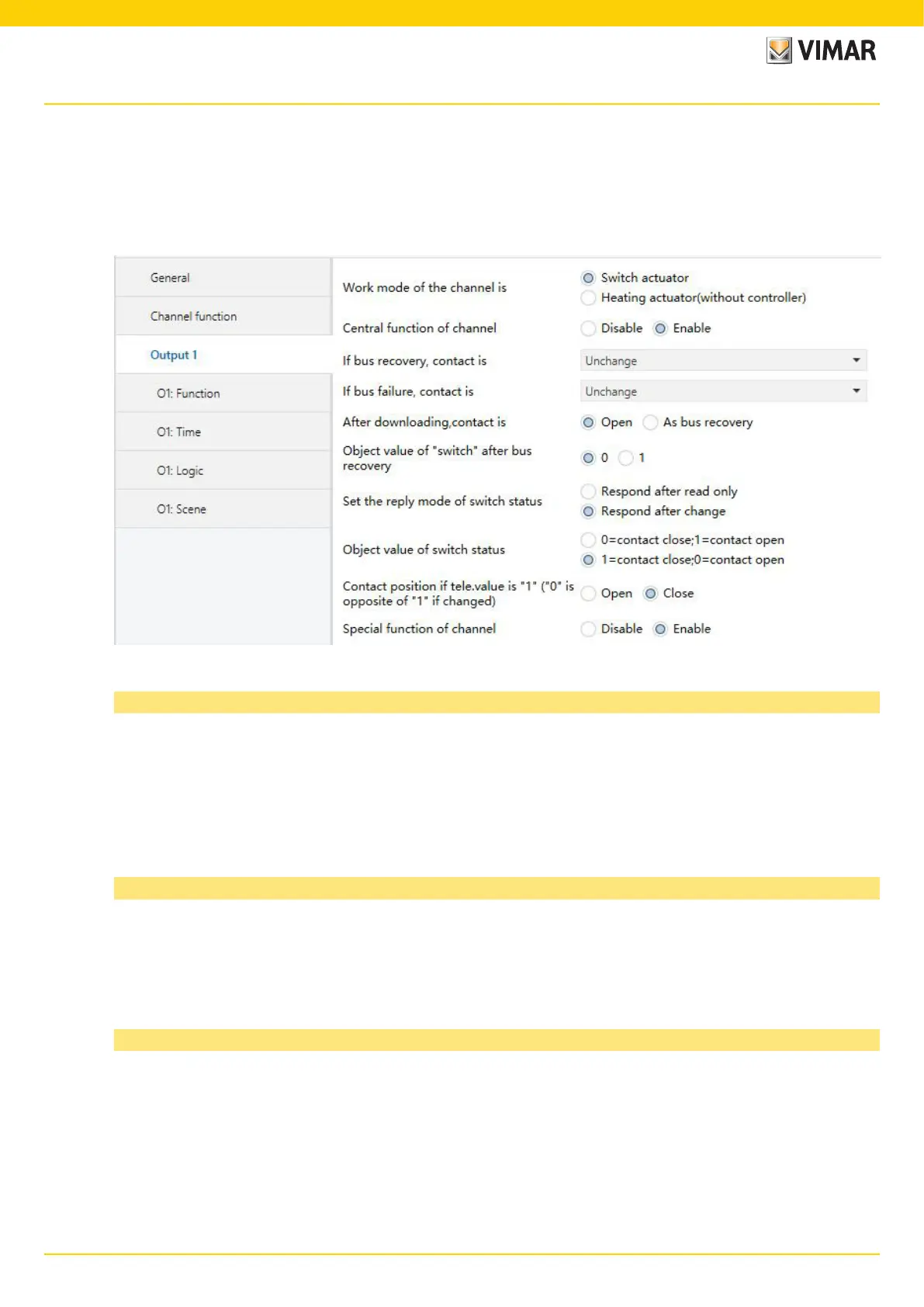

Fig. 4.3 Parameter window “Output X: Switch actuator”

Parameter “Work mode of the channel is”

This Parameter sets the work mode of the channel. Options:

Switch actuator

Heating actuator(Without controller)

“Switch Actuator”: for common switch control, such as lighting. This section will describe about the parameter functions and application under “Switch actuator”

mode.

“Heating actuator (without controller)”: is mainly for heating valve control, parameter functions and application refer to the details in the section 4.4.

Parameter “Central function of channel”

This Parameter sets whether the centralized control of this channel is enabled. Options:

Disable

Enable

When enabled, the channel will be controlled by the central control object “Central control for all switch”.

Parameter “If bus recovery, contact is”

The Parameter sets the position of the relay contacts when the device Bus is powered up. Options:

Unchange

Open

As before as bus fail

When selecting “Unchange”, the contact will not change when bus power on;

When selecting “Open”, the contact will be opened when bus power on;

When selecting “Close”, the contact will be closed when bus power on;

When selecting “As before bus voltage fail”, the contact position when bus power on is the same as that before power off.
