- 11 / 37 -
A pair of UP-DOWN arrows on the right panel is also provided for you to select any input
channel for the Compressor configuration.
5.7 Auto Gain Control
Automatic Gain Control (AGC) intends to control the audio signal within a range so as to
extend the distance of pick-up sounds. The AGC process aims to attenuate the signal with
excessive high signal level and boost the signal with low signal level up to target level.

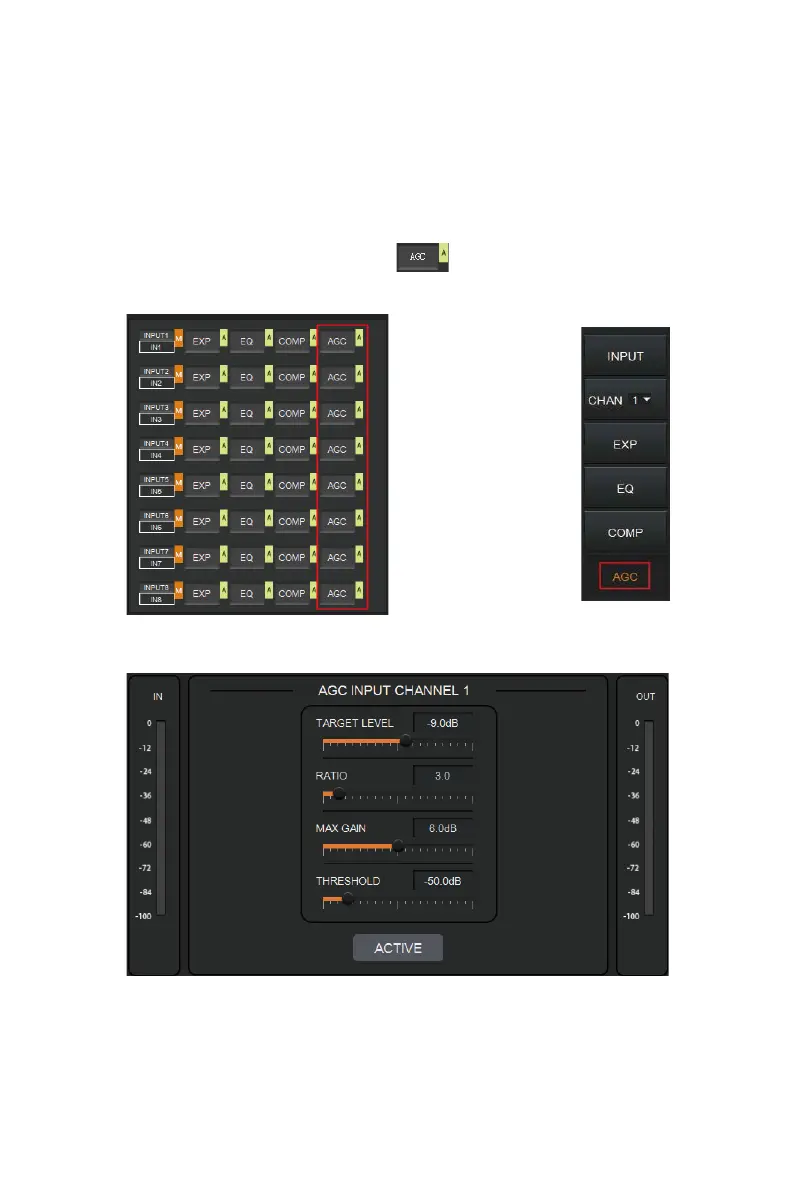

As shown below, by clicking the AGC module on the HOME page or the AGC button
on the right panel of the IN page, you will enter the AGC setting page.
or
The following figure shows the setting page of the AGC module.
TARGET LEVEL: The desired output signal level, with a scale of [-20.0, 0.0] dB.
RATIO: The compression ratio for signals above target level, with a scale of [1.0, 20.0].
If the value sets to 2.0, it means that signals above target level will be amplified in twice of
the original. However, not all signals between the threshold and the target level are linearly
amplified by this ratio.
