EN - English - Instruction manual
10 MNVCHPVHPOE_2222_EN
6.4.5 PoE cable connection

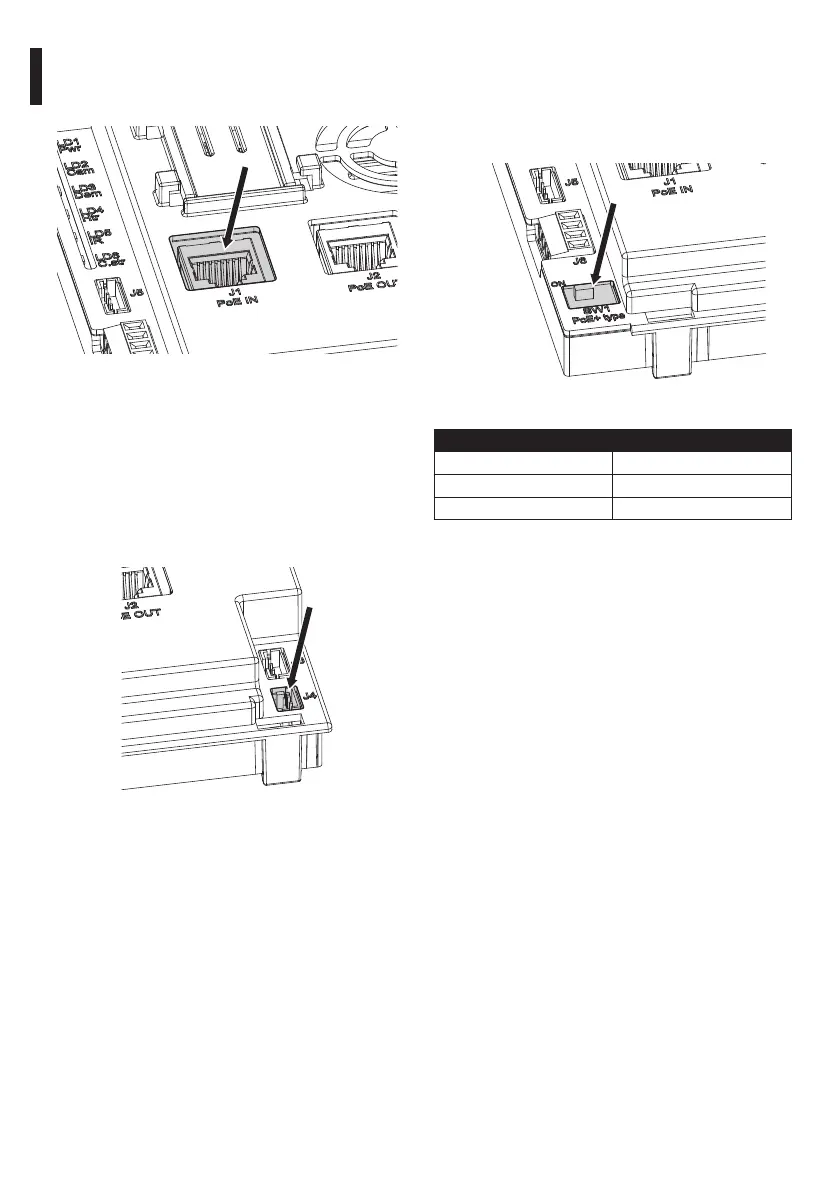

Connect the PoE cable from the Power Injector to the
J1 connector.
Fig. 11
Before powering the device, you must set the
maximum power consumption of the housing
operating on dip switch SW1 (7 Configuration, page
10).
6.4.6 Connection of the blower with
double filter for air renewal (optional)
Connect the fan cable to the J4 connector.
Fig. 12
7 Configuration
Before powering the device, you must set the
maximum power consumption of the housing
operating on dip switch SW1.
Fig. 13
POWER CONSUMPTION CONFIGURATION
SW1 Maximum power
OFF PoE class 3 (13W max)
ON Hi-PoE class 4 (25W max)
Tab. 2
According to the power consumption, the system
can supply the options described in the table (Tab. 3,
page 11).
