Instruction manual - English - EN
9MNVCHPVHPOE_2222_EN

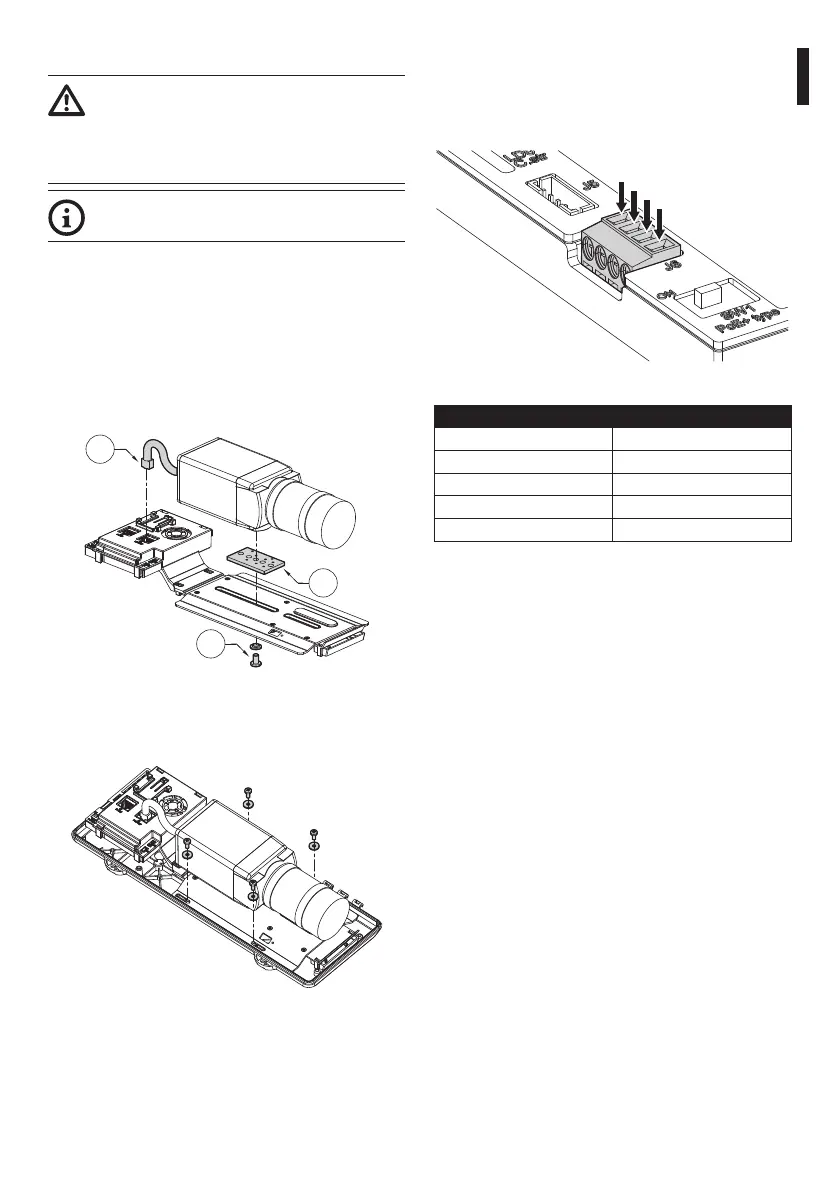

6.4.3 How to install the camera
The correct operation of the equipment,
within the temperature range indicated, is
guaranteed only if you use camera and lens
with temperature limits equal to at least
-10°C and +60°C.
It is possible to install only PoE type
cameras.
Mount the camera using the supplied screws (01) and
spacers (02).
Apply at least one spacer to guarantee electrical
isolation between the slide and the camera.
Position the camera lens close to the glass to avoid
visual interference or optical reflections.
Connect the camera to the J2 connector (PoE OUT)
with the supplied cable (03).
02
01
03
Fig. 8
Refit the slide in its housing and fix the screws and
washers previously removed.
Fig. 9
6.4.4 Connection of the GEKO IRH
illuminator (optional)
Connect the illuminator to the J6 terminal as
described in the diagram below.
1
2
3
4
Fig. 10
CONNECTION OF THE GEKO IRH ILLUMINATOR
Illuminator Terminal J6
Green (telemetry) 1
Red (telemetry) 2
White (power supply) 3
Black (power supply) 4
Tab. 1
To adjust the lighting threshold of the illuminator
refer to the product's use and installation manual.
