EN - English - Instruction manual
8 MNVCHPVHPOE_2222_EN
6.4.2 Brackets and adaptors
The product can be fixed on a bracket or an adaptor.
For further information refer to the product's
technical data sheet or directly contact VIDEOTEC.

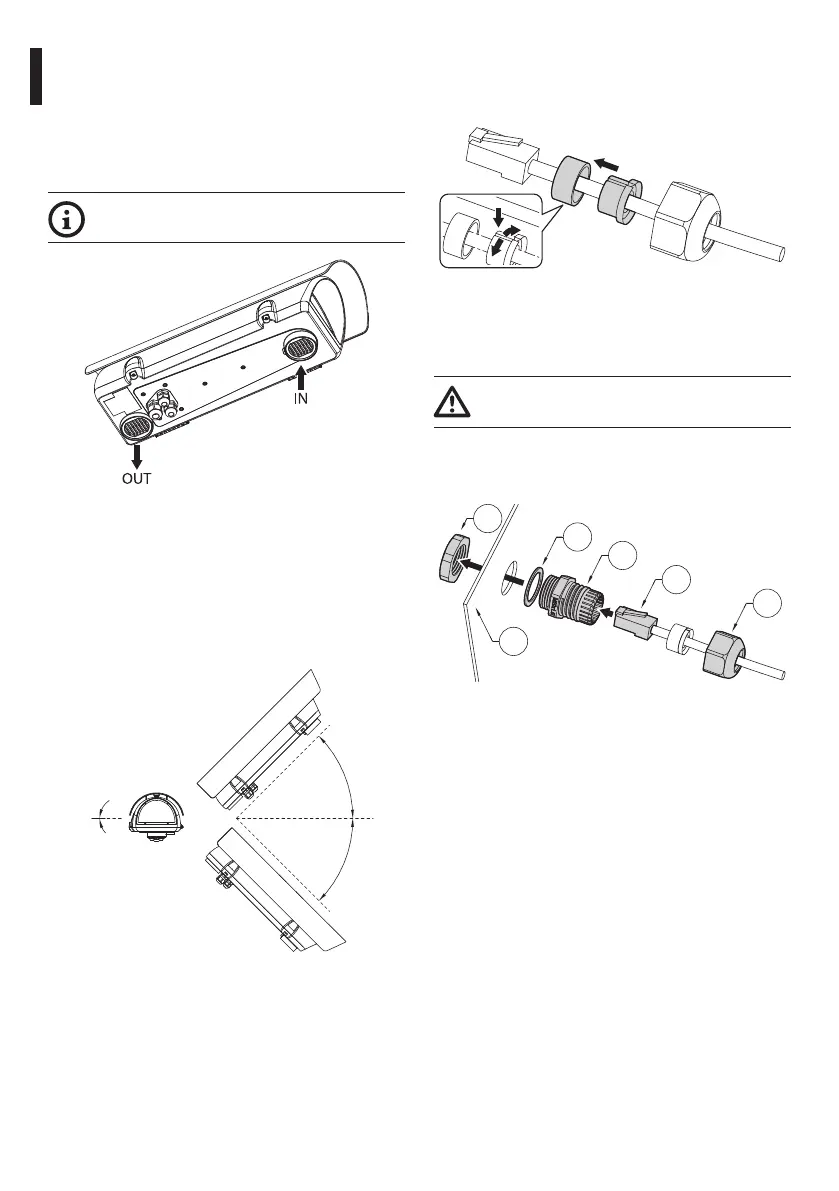

6.4.1 Installation of the version with
double filter for air renewal
During installation pay attention to the
orientation of the air inlet filter fins.
Fig. 4
Depending on the angle of inclination of the housing,
the orientation of the filter fins must prevent water
penetrating in case of rain:
To guarantee weatherproof protection, install the
housing on the support following the inclination
limits as shown in the picture.
45°
45°
0˚
Fig. 5 Maximum tilt of the transversal axis: 0°.
Maximum tilt of the longitudinal axis: ±45°.
6.4.2 Ethernet cable installation
Insert the Ethernet cable in the gasket and block it as
shown in figure.
Fig. 6
Fit the gasket (01) to the cable gland M20 (02). Fasten
the cable gland to the bottom of the housing (03)
using the M20 nut (04).
Pay attention to the fixing. Tightening
torque: 7Nm.
Pass the cable with connector RJ45 (05) through the
M20 cable gland (02). Tighten the cable gland cap
(06).
02
01
05
06
04
03
Fig. 7
