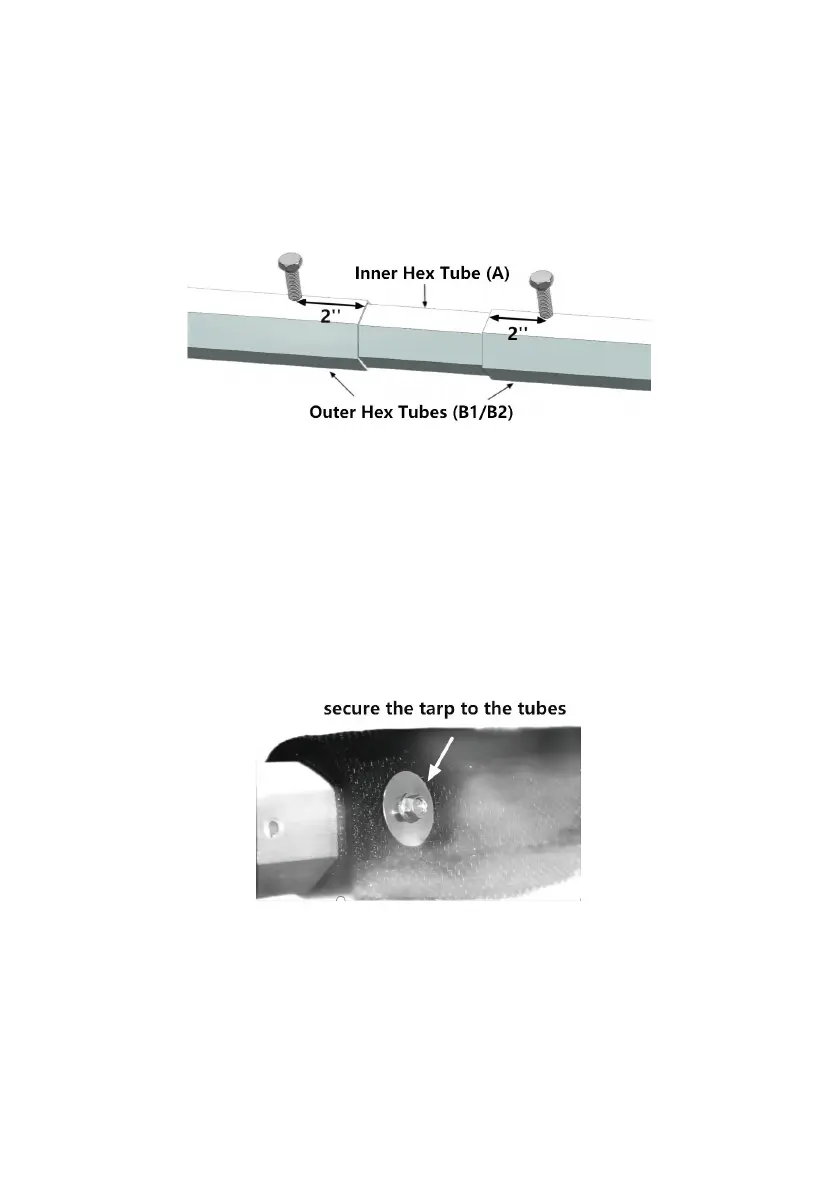

complete roll tube assembly is 1/4” less than the distance between
mounting brackets. Reference your pencil marking to verify the inner hex
tube (A) is centered inside the outer roll tube assembly (B1/B2). If it is
centered, screw each roll tube assembly to the inner hex tube using a 1/4”
x 1” self drilling and taping screw (F), screw is 2” from the end of the outer
tube.
6. Slide the entirety of the roll tube (A/B) into the 5-1/2” loop in the tarp (H).
Ensure the webbing on the seams of the tarp will rest on the bottom of the
tarp when installed.
7. Ensure the roll tube (A/B) is centered within the tarp (H). Tightly hold the
roll tube at the end of the pocket, and screw in place using 1/4” x 1” self
drilling tapping screws (F) and fender washers. Space them evenly and
center across the roll tube. Ensure the screws are at least 2” from the ends
of the roll tube. Also, do not screw into the shaft adapters on each end.
8. Remove either one of the bearing brackets (C) and slide the tarp roll
into the remaining bracket. Now that the tarp roll is placed, reposition the
bearing bracket and reassemble it to the dump body. Afterward, tighten the
3/8” bracket mounting bolts.
9. Center your tarp roll (A/B) between each mounting bracket (C) and
tighten set screws into each bearing race.
