10. Take the sprocket and assemble it onto the 1” shaft on the driver's side
of the roll tube assembly. Ensure the detent lever (D) is in the open position,
and slide the sprocket down the shaft until it's tight against the bearing.

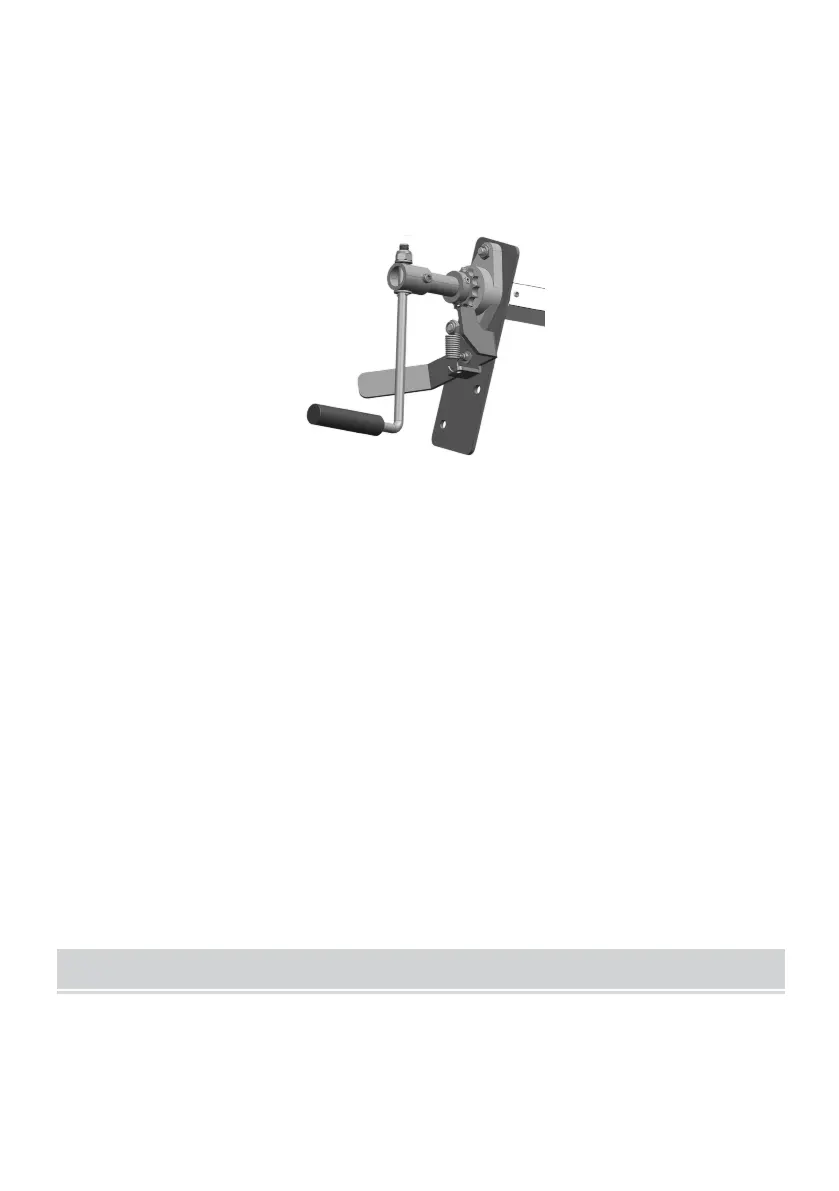

11. Now use the 1/4” x 2” screw and lock nut that is provided to assemble
the crank handle (D) onto the driver’s side of the roll tube shaft (A/B).
12. The two small hooks on the straps should be attached to the rear
corner holes on the tarp. Now crimp the large hooks (G) around the tarp
grommets (H). The straps are now securely attached to the tarp.
13. Take your included pull rope (E) and attach it to the center grommet on
the rear of the tarp (H).
14. Attach the two rope storage hooks to the dump body. These hooks
store the pull rope (E) while the tarp (H) covers the dump body. The hooks
must be horizontally mounted and can be bolted or welded onto the body.
We recommend a distance of 15”-17” between the two hooks.
15. Now on the other side, assemble two more rope storage hooks to the
side of the dump body near the crank handle (D). When the tarp is
retracted and rolled up, these hooks store the pull rope (E). These hooks
must be placed vertically and can be bolted or welded on, similar to Step
14.
MAINTENANCE
1. Inspect all equipment for loose or worn parts before each use and
replace or tighten as needed.
2. Trap should be stored away from fire sources.
