ASSEMBLY & INSTALLATION
1. Determine where you would like to place the tarp roller on your dump
truck. We recommend mounting the roller outside the dump body’s load
area to prevent damage from loading the dump truck’s body. You’ll also
want to place the roller where the winder is easily accessible.
2. Now that you have determined where to place the tarp roller kit, clamp
the bearing bracket (C1/2) assemblies to your desired location. The
bearing bracket with the detent lever (C2) should be placed on the driver’s
side. Ensure these brackets are aligned on each side vertically. Additionally,
mount the brackets high enough to accommodate the entirety of the tarp
when fully rolled up onto the roll bar.

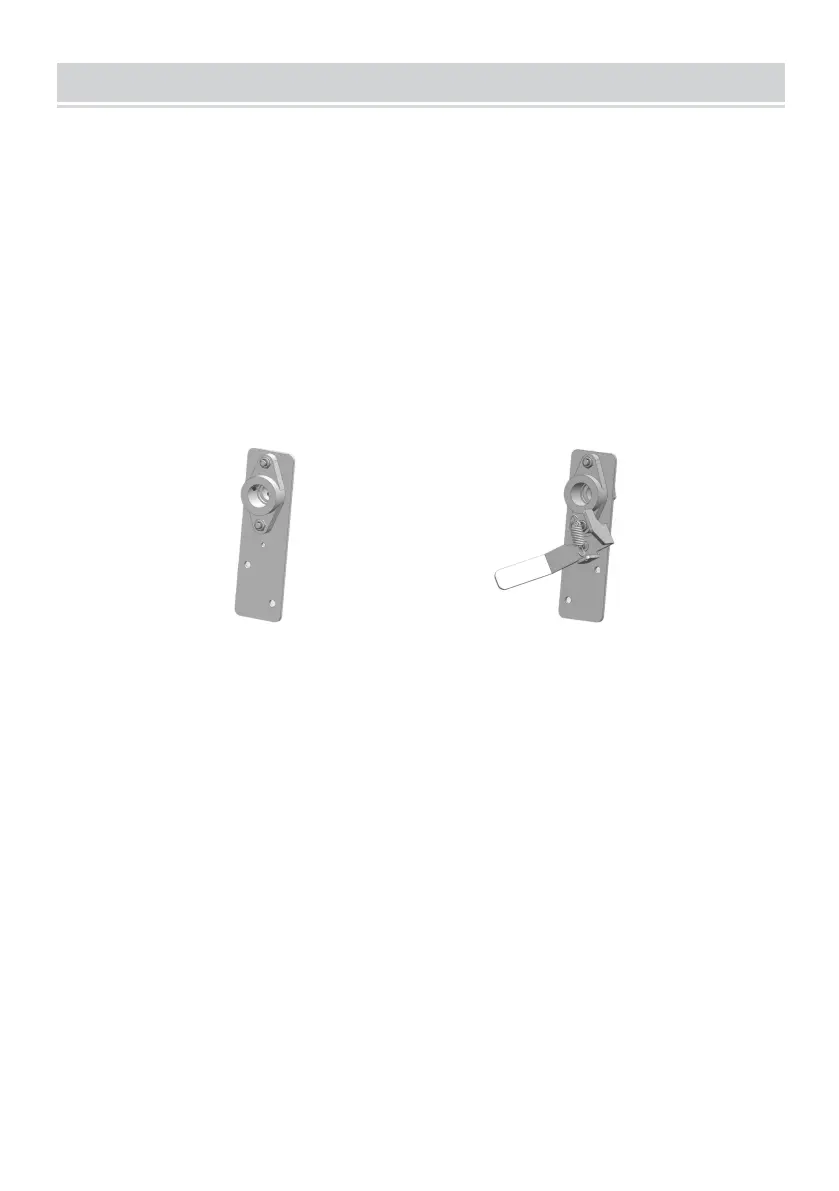

Bearing Bracket (C1) Bearing Bracket (C2)
3. To begin installing the brackets (C1/C2), mark the location of the bearing
bracket’s mounting holes on each side of the dump truck body. Now drill
13/32” holes into the four marked locations.
4. The holes have been drilled, now assemble the bearing brackets to the
dump body using four 3/8’’x1’’ cap screws, nuts, and lock washers (F) that
are supplied. However, avoid tightening the fasteners at this point, tighten
them with your hands to keep them in place.
5. Take out the inner hex tube (A) and mark the center of the tube’s length
with a pencil. Insert that tube halfway into the driver's side roll tube (B1).
On the passenger, insert the other side of the roll tube (B2) onto the
opposite end of the inner hex tube (A). Now, measure the distance
between the inside of the mounted bearing brackets (C1/C2). If the
measurement is less than 64”, both roll tube assemblies must be
shortened by equal amounts. Separate the two roll tubes to ensure the
