Je bekijkt pagina 10 van 192
- 9 -

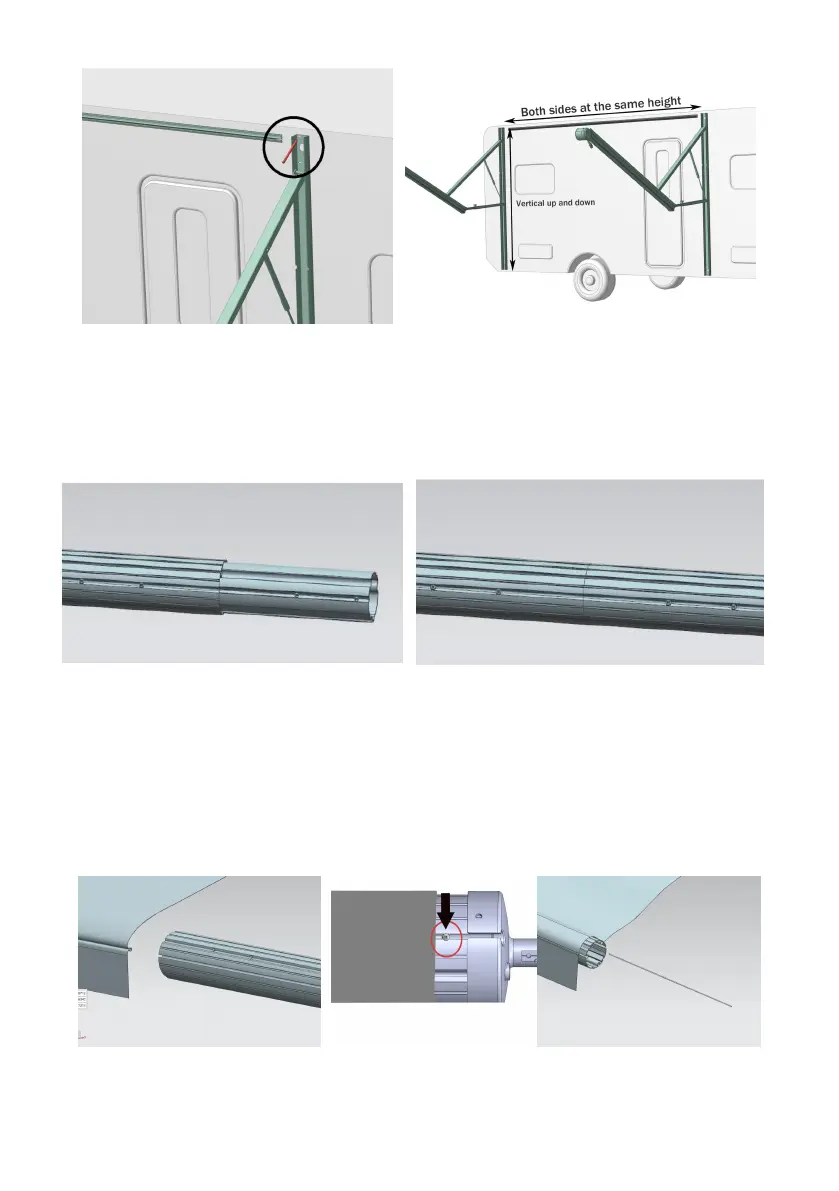

Figure D6 Figure D7
3.4 Pull out the connecting pipes at both ends of the middle coil to the red
limit position, and assemble the left and right tube end. Fix the connection
with Screw A. (Figure D8, Figure D9)
Figure D8 Figure D9
3.5 Open the fabric, insert the fabric into the slot of the roll tube, then insert
the front end of the fabric into another slot on the roll tube, and then fix the
Screw B to prevent the fabric from moving, next insert the fabric strip into
the slot. (Figure D10, Figure D11, Figure D12)
Figure D10 Figure D11 Figure D12
3.6 Wrap the fabric in the same direction onto the winding tube, then thread
