- 8 -
3. Installation method:

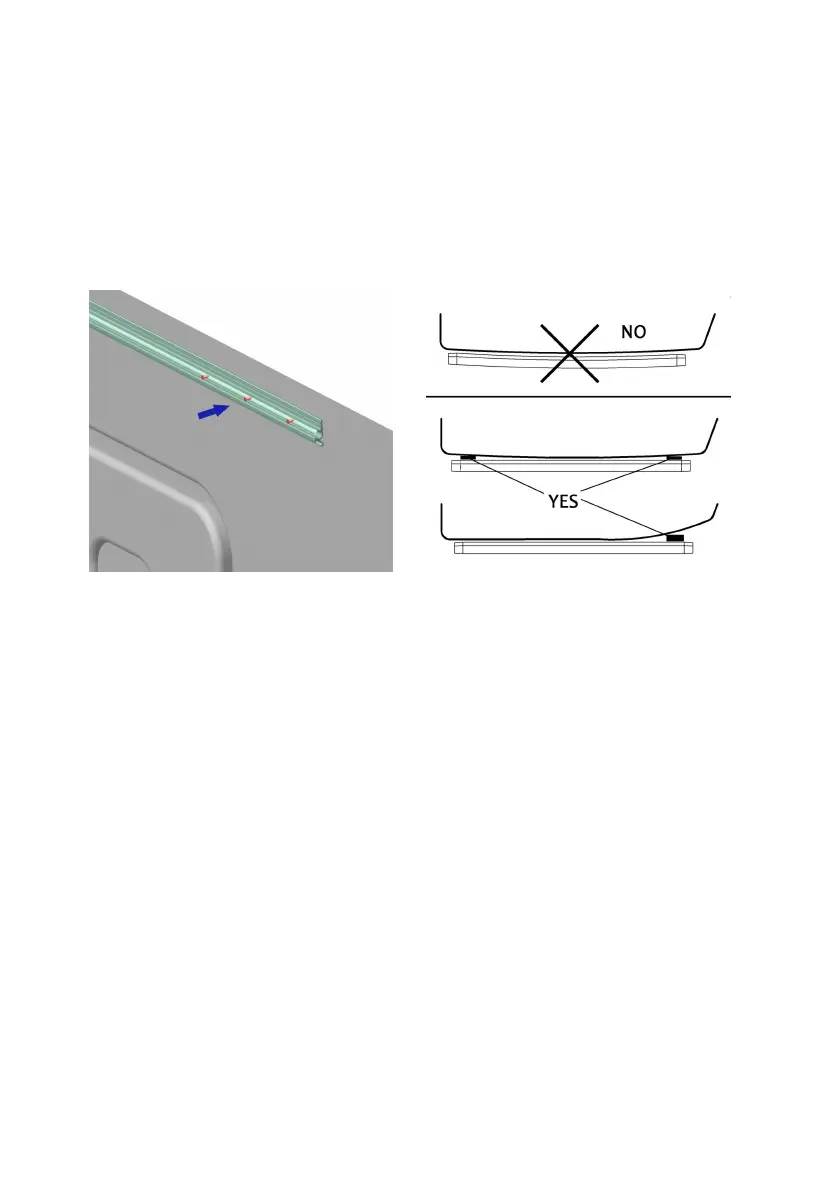

3.1 Take out the fabric rail and fix it on the outside of the vehicle body with
screws B (Figure D4). The fabric rail should be installed horizontally, and if
not, it should be leveled (the cushion block should be provided) (Figure D5).
If the vehicle body is pre-install-ed with a fabric insertion slot, this step can
be omitted and the fabric rail not need to be used.
Figure D4 Figure D5
3.2 Take the left and right air pressure folding arms, remove the safety
cover, and open the folding arms on the outside of the vehicle
Mark the appropriate hole positions (Figure D6) and drill Φ5 installation
holes on the vehicle body. Notes: The air pressure folding arm has a high
elasticity, which poses a risk of accidental injury! Pay attention to pressing
down after removing the safety cover slowly release the folding arm.
3.3 Use Screw C to secure the air pressure folding arms at both ends.
Attention: The folding arm should be vertical up and down, and the left and
right arms are at the same horizontal height (Figure D7).
