- 10 -

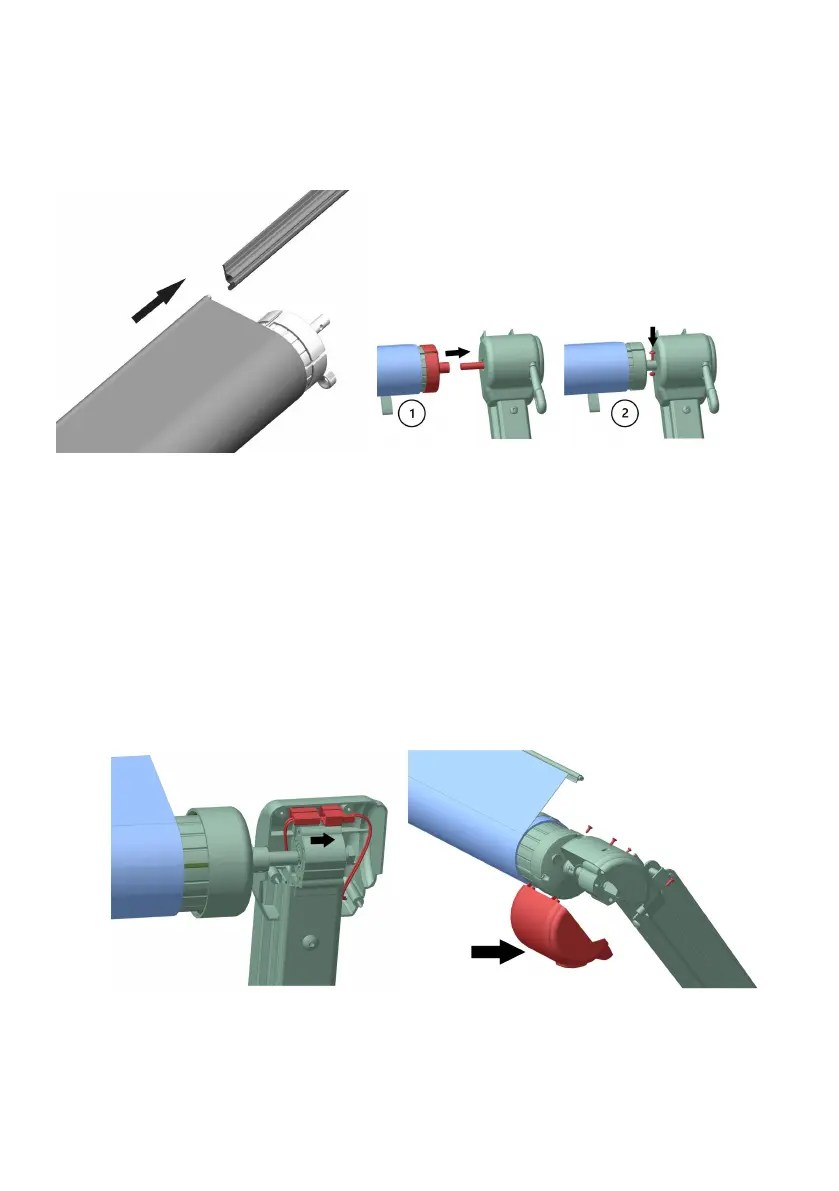

the other end of the fabric into the vehicle's fabric strip (Figure D13), and
finally insert the roller assembly into the steel shaft at the top of the motor
folding arm. Fix the screws to connect and fix the roller end cover to the
steel shaft (Figure D14).
Figure D13 Figure D14
※ Attention: The air pressure folding arm has a high elasticity, which
poses a risk of accidental injury! After pushing back the folding arm,
it should be temporarily tied and fixed.
3.7.1 Put the decorative cover on the top of the motor side folding arm
(Figure D15), connect the motor wiring, and reinstall the decorative cover.
(Figure D16)
Figure D15 Figure D16
Take the decorative cover on the top of the non-motor side folding arm,
insert the non-motor side scroll and bracket into the top of the folding arm,
fix it with Screw B, and install the decorative cover.
