- 6 -

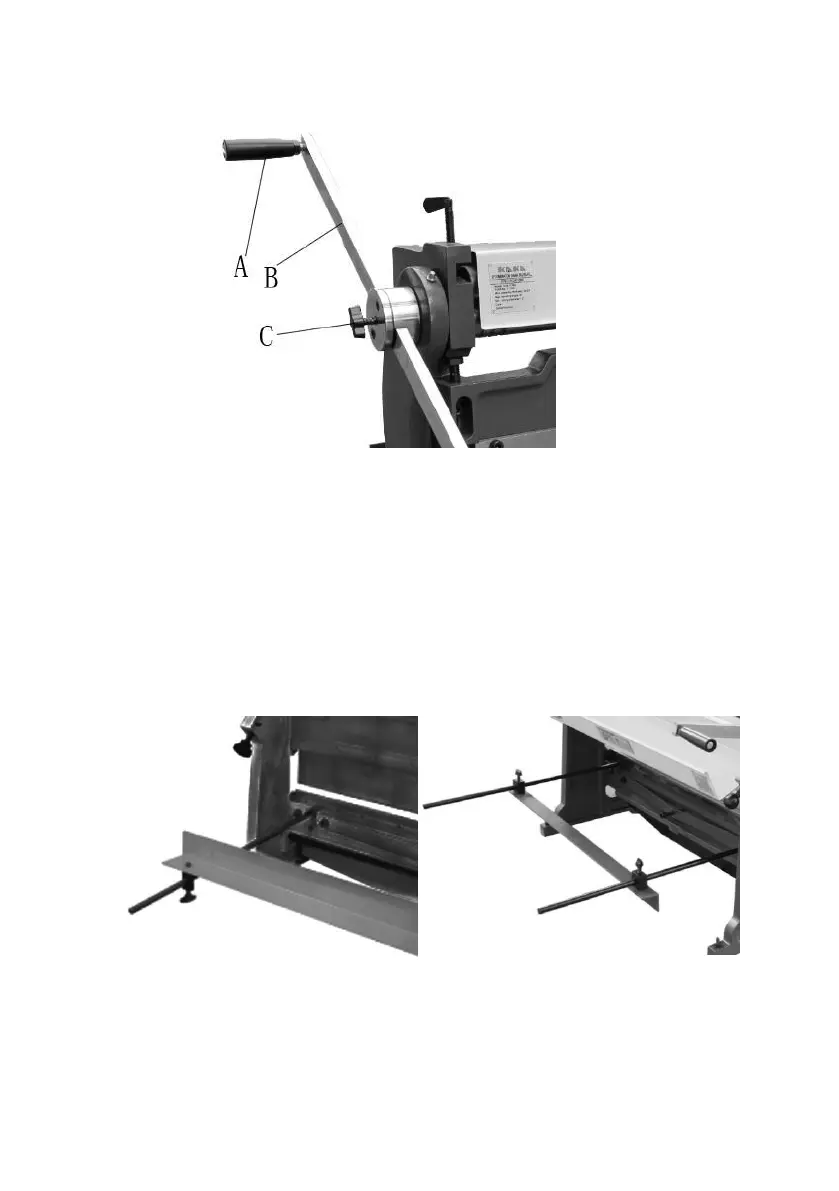

6. Remove one handle (A, Figure 2) from each operating handle assembly,
using6mm hex key.
Figure 2
7. Loosen lock bolt (C, Figure 2).
8. Slide bar (B) into hub and tighten lock bolt (C) to secure.
9. Re-install handle (A).
10. Install both guide rods into either the upper or lower set of threaded
holes(Figures 3 & 4) and tighten the setting by rotating hex nut against the
cast base o fthe machine with 16mm wrench.
11. Install guide plate as shown in Figures3 or 4. Secure it to rods using the
T-handles.
Figure 3 (Brake position) Figure 4 (Shear position)
NOTE: For brake operation, install guide rods into upper set of holes
(Figure 3); for shear operation, install in lower set of holes (Figure 4).
