- 14 -
Flat Rolling
Softer metals (copper, aluminum, etc.)can be processed through the slip
roll machine to straighten, flatten, or reduce their thickness. Simply adjust
the upper press roll for thickness, lower idle roll all the way down, and feed
workpiece through (Figure 13).
NOTE: The idle roll will not descend completely out of the path of the
workpiece; thus, there may be a slight bend in the workpiece. By flipping
the workpiece over and re-feeding it, this bend can be minimized.

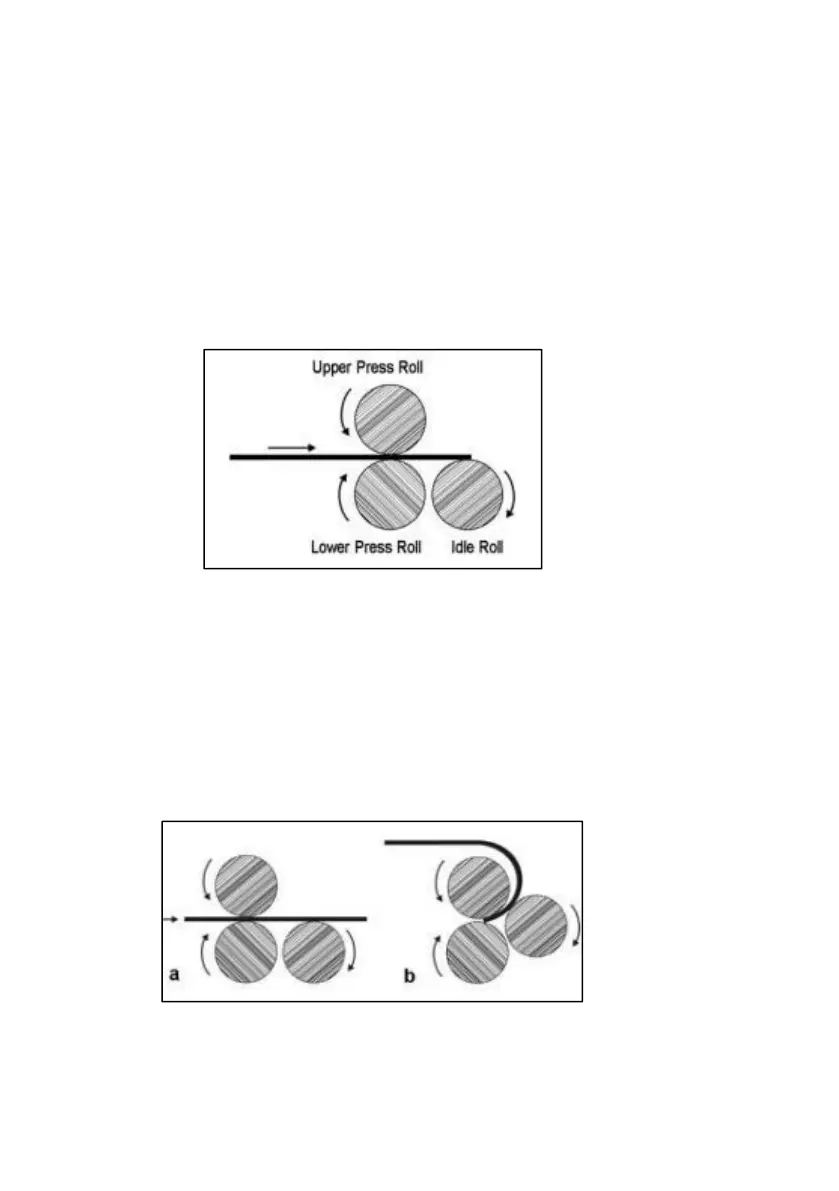

Figure 13
Forming a Radius
1. Adjust upper press roll as needed.
2. Insert workpiece from front.
3. Operate handle; when the material reaches the point where the radius
is to begin (a, Figure 14), stop the machine and raise the idle roll an equal
amount oneach end to achieve desired bend.
Figure 14
4. Restart rolls and continue until bend is completed (b, Figure 14).
Support workpiece as it exits machine.
5. Make further passes if needed, along with incremental idle roll
