- 15 -
adjustments.
Forming a Tube
1. Adjust upper press roll as needed for workpiece thickness.

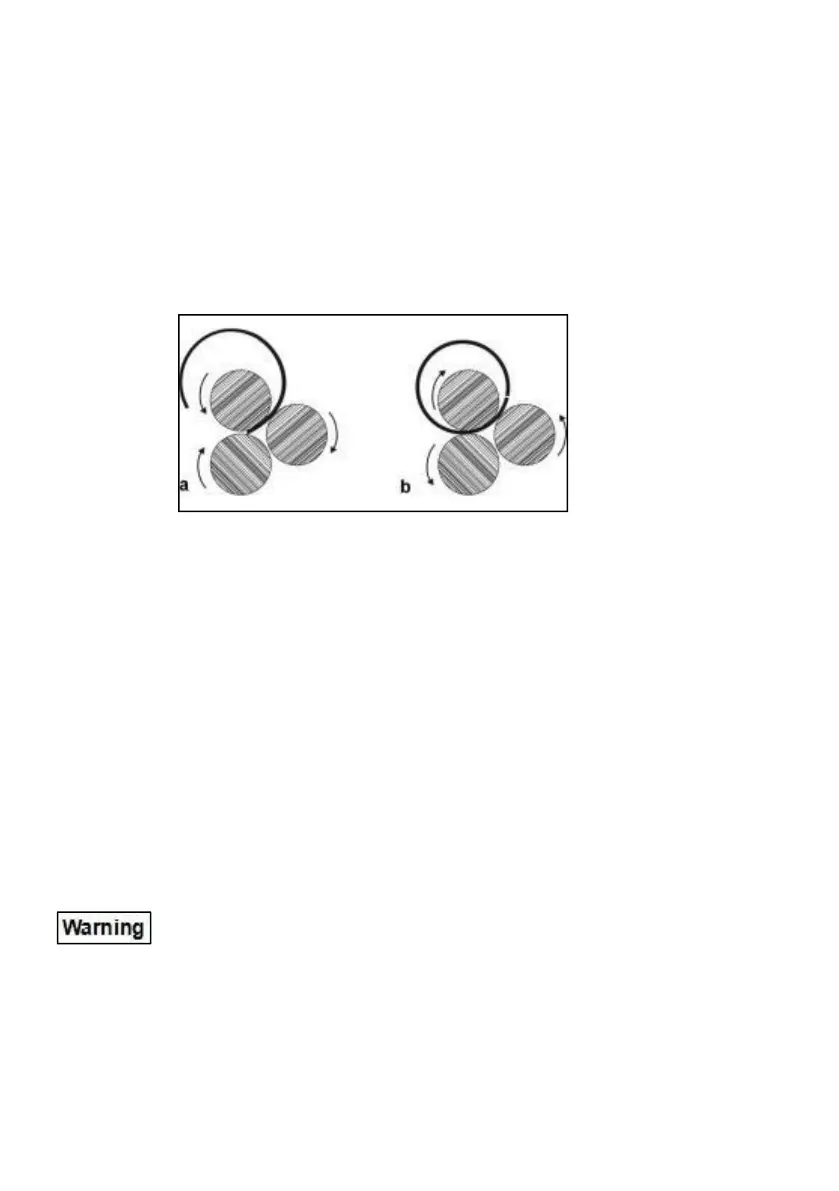

2. Feed workpiece into machine. As it nears the end (a, Figure 15), stop
and reverse direction (b, Figure 15).
3. Make further passes if needed, along with incremental idle roll
adjustments.
Figure 15
Bending Wire
There are 6 wire grooves at the ends of the press rollers to accommodate
a2.99mm(0.12”), 3.66mm(0.14”), 6.1mm(0.24”), 3.05mm(0.12”),
4.40mm(0.17”), 5.16mm(0.20”)wire.
Use the smallest groove into which the wire will comfortably fit. Bend the
wire using the same principles as described for forming a radius. To make
a complete loop of wire, use the instructions for forming a tube.
Maintenance/Lubrication
Use caution when doing maintenance work around the shear
blades.
1. Apply #2 lithium tube grease once a month to the grease nipples on
both ends of frame (A, Figure 16).
2. Keep the slip rolls clean and rust-free, and frequently apply a light coat
